About the 6IN14NixieShield PCB

6IN14NixieShield is an open source PCB design by NEONTEC75, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 143.9 × 53.6 mm, with 48 components from 25 distinct parts.

Other key parts include the TLP627, K155ID1 and DS3231. By type, the board carries 12 resistors, 8 ICs, 7 diodes, 7 capacitors, 5 connectors and 3 switches.

It belongs with the displays & leds and dev boards & breakouts designs in this gallery.

From the project

A minimalist nixie clock shield for Arduino Uno / Mega

The library with some examples: https://github.com/NEONTEC75/Nixie6IN14

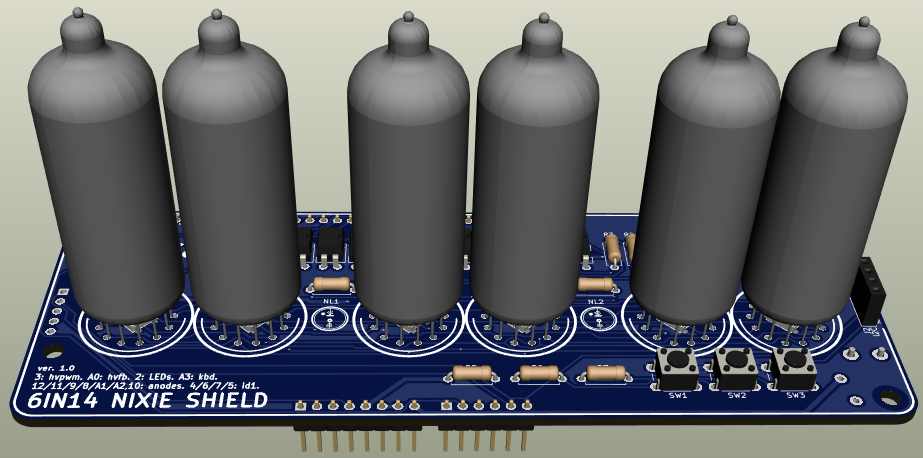

6IN14NixieShield, from the project README — From the project README

Main components on the 6IN14NixieShield

TLP627 K155ID1 DS3231

6IN14NixieShield bill of materials (BOM)

48 components, 25 distinct parts.

Qty	Part	Footprint	Refs
7	TLP627	TLP627	U1, U2, U3, U4, U5, U6, U7
1	K155ID1	DIP-16_W7.62mm	U8
1	DS3231	DS3231	A1
1	IRF740	TO-220-3_Horizontal_TabDown	Q1
1	I2C	PinSocket_1x05_P2.54mm_Vertical	J1
1	UNO3	PinHeader_1x10_P2.54mm_Vertical	J2
1	UNO4	PinHeader_1x08_P2.54mm_Vertical	J3
1	UNO1	PinHeader_1x08_P2.54mm_Vertical	J4
1	UNO2	PinHeader_1x06_P2.54mm_Vertical	J5
1	1A	Fuse_Bourns_MF-RG300	F1
2	NeonLamp	NeonLamp	NL1, NL2
3	SW_Push	SW_PUSH_6mm_H4.3mm	SW1, SW2, SW3
6	WS2812B	WS2812B	D1, D2, D3, D4, D5, D6
1	HER106	D_DO-41_SOD81_P7.62mm_Horizontal	D7
1	470uH	L_Radial_D7.8mm_P5.00mm_Fastron_07HCP	L1
6	100n	C_0805_2012Metric	C1, C2, C3, C4, C5, C6
1	4.7uF*350V	CP_Radial_D8.0mm_P3.50mm	C7
3	10k	R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal	R1, R2, R3
3	4k7	R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal	R4, R5, R10
1	100	R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal	R6

Show 5 more

Qty	Part	Footprint	Refs
1	300k	R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal	R7
1	22	R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal	R8
1	100k	R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal	R9
1	2k2	R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal	R11
1	470	R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal	R12
