ARCHINET
About the ARCHINET PCB

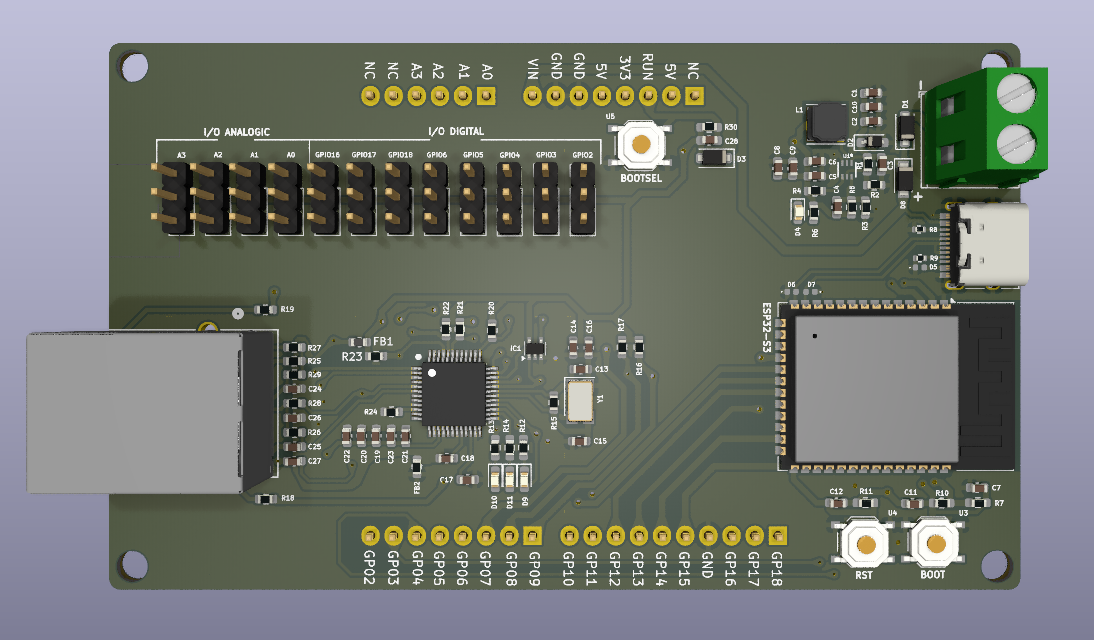

ARCHINET is an open source ESP32 PCB design by NewsanLab, published on GitHub. It is a 2-layer board measuring 100 × 60 mm, with 99 components from 47 distinct parts.
Its main chip is the ESP32-S3-WROOM-1-N8, from the ESP32 family. Other key parts include the SN74AHC1G125DCKR, TPS563252DRLR, PTS526SK15SMTR2 LFS, W5500 and 61300311121. By type, the board carries 30 resistors, 28 capacitors, 11 diodes, 7 ICs, 7 connectors and 4 modules.
It belongs with the iot & wireless designs in this gallery.
From the project
ArchiNet para conectividad WiFi/BLE/Ethernet mediante Archi
El diseño está pensado para que todas las funciones puedan ser programadas y controladas directamente desde el microcontrolador ARCHI (basado en RP2040), sin necesidad de programar el ESP32 por separado. Este actúa como un coprocesador de comunicaciones, operando mediante comandos enviados en formato Json.
Voltaje de Entrada del Shield: 5V a 12V. Conectividad Wi-Fi: Estándar 802.11 b/g/n (2.4 GHz) con soporte para modos de estación, Punto de Acceso (AP) y Wi-Fi Direct (ESP32-S3). Conectividad Bluetooth: Bluetooth LE 5.0 (Bluetooth Low Energy). Conectividad Ethernet: Compatible con…
Main components on the ARCHINET
ARCHINET bill of materials (BOM)
99 components, 47 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SN74AHC1G125DCKR 74AHC1G125 | SOT-353_SC-70-5 | IC1 |
| 1 | TPS563252DRLR | SOT6_DRL_TEX-L | U1 |
| 1 | ESP32-S3-WROOM-1-N8 ESP32-S3-WROOM-1 | ESP32-S3-WROOM-1 | U2 |
| 3 | PTS526SK15SMTR2 LFS SWITCH | SW_Push_1P1T_XKB_TS-1187A | U3, U4, U5 |
| 1 | W5500 | W5500 | U$1 |
| 4 | 61300311121 Conn_01x03 | PinHeader_1x03_P2.54mm_Vertical | A0, A1, A2, A3 |
| 1 | ABM3B-25.000MHZ-22-E-4-H-T 25MHz | Crystal_SMD_TXC_7M-4Pin_3.2x2.5mm | Y1 |
| 1 | VI0221520000G BAT | TerminalBlock_RND_205-00287_1x02_P5.08mm_Horizontal | J1 |
| 1 | USB4105-GF-A USB_C_Receptacle_USB2.0_16P | USB_C_Receptacle_HRO_TYPE-C-31-M-12 | J2 |
| 1 | ARJM11B1-009-AB-EW2 RJ45 | CONN12_ARJM11B1-009-AB-EW2_ABR | J3 |
| 1 | 61300811121 Power | PinHeader_1x08_P2.54mm_Vertical | J4 |
| 1 | 61300611121 Analog | PinHeader_1x06_P2.54mm_Vertical | J5 |
| 1 | PH1-10-UA Digital/PWM | PinHeader_1x10_P2.54mm_Vertical | J6 |
| 1 | 61300811121 Digital/PWM | PinHeader_1x08_P2.54mm_Vertical | J7 |
| 8 | 61300311121 Conn_01x03 | PinHeader_1x03_P2.54mm_Vertical | GPIO2, GPIO3, GPIO4, GPIO5, GPIO6, GPIO16, GPIO17, GPIO18 |
| 2 | DSS14U | D_SOD-123F | D1, D3 |
| 1 | SD12C-7 | D_SOD-323_HandSoldering | D2 |
| 1 | B1931NG--20D001114U1930 LED_POW | LED_0603_1608Metric | D4 |
| 3 | ESD9B5.0ST5G D_TVS_Filled | D_0402_1005Metric | D5, D6, D7 |
| 1 | 1N5819WS 1N5819 | Nexperia_CFP3_SOD-123W | D8 |
Show 27 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | B1931NG--20D001114U1930 LED_POW | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D9, D10, D11 |
| 1 | MH1608-121Y ferrite | L_0603_1608Metric | FB1 |
| 1 | MH1608-121Y ferrite | R_0603_1608Metric | FB2 |
| 1 | PA4332.222NLT 2.2uH | IND_PA4332.222NLT | L1 |
| 10 | CL10X106MO8NRNC 10uF | C_0603_1608Metric | C1, C2, C7, C9, C10, C11, C12, C14 +2 |
| 2 | CC0603KRX7R7BB104 100nF | C_0603_1608Metric | C3, C6 |
| 1 | C0603C560M3HACTU 56pF | C_0603_1608Metric | C4 |
| 1 | GRM188R61A226ME15D 22uF | C_0603_1608Metric | C5 |
| 7 | CC0603KRX7R7BB104 0.1uF | C_0603_1608Metric | C8, C16, C17, C19, C20, C21, C22 |
| 2 | C0603C220K4GACTU 22pF | C_0603_1608Metric | C13, C15 |
| 2 | C0603C103K4RECTU 10nF | C_0603_1608Metric | C24, C26 |
| 2 | KGM15AR71C682KT 6.8nF | C_0603_1608Metric | C25, C27 |
| 1 | GRM1885C1H102JA01D 1nF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C28 |
| 1 | SR0603FR-7T100KL 100K | R_0603_1608Metric | R1 |
| 1 | RCS060332K4FKEA 47K | R_0603_1608Metric | R2 |
| 1 | RCS060310K0JNEA 30K | R_0603_1608Metric | R3 |
| 7 | RCS060310K0JNEA 10K | R_0603_1608Metric | R4, R16, R17, R20, R21, R22, R23 |
| 1 | RT0603BRD07135KL 135K | R_0603_1608Metric | R5 |
| 1 | RCS06031K00FKEA 1K | R_0603_1608Metric | R6 |
| 6 | RCS06031K00FKEA 1K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R7, R10, R11, R12, R13, R14 |
| 2 | ERJ-PA2F5101X 5k1 | R_0402_1005Metric | R8, R9 |
| 1 | RCS06031M00FKEA 1M | R_0603_1608Metric | R15 |
| 2 | CRGP0603F470R 470 | R_0603_1608Metric | R18, R19 |
| 1 | RCS060312K4FKEA 12.4K | R_0603_1608Metric | R24 |
| 4 | RCS060349R9FKEA 49.9 | R_0603_1608Metric | R25, R26, R27, R28 |
| 1 | RCS060310R0FKEA 10 | R_0603_1608Metric | R29 |
| 1 | RCS060310K0JNEA 10K | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R30 |
ARCHINET design files
The KiCad project lives in the NewsanLab/ARCHINET repository on GitHub; these links point at the commit this page was built from.
- LayoutHardware/A-NET.kicad_pcb
- SchematicHardware/A-NET.kicad_sch
ARCHINET: common questions
What microcontroller does the ARCHINET use?
The ARCHINET is built around the ESP32-S3-WROOM-1-N8, from the ESP32 family.
How big is the ARCHINET PCB?
The ARCHINET measures 100 × 60 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the ARCHINET?
99 components, from 47 distinct parts. The full bill of materials is listed on this page.
Where can I download the ARCHINET design files?
From the NewsanLab/ARCHINET repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the ARCHINET design in my own project?
The repository has no license, so all rights stay with NewsanLab. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the ARCHINET without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
