Esp32-can iot

NewTec-GmbH·esp32-can-iot·Hardware/010_Implementation/Board.kicad_pcb

Esp32-can iot PCB layout, top view — open source ESP32 board by NewTec-GmbH

About the Esp32-can iot PCB

Esp32-can iot is an open source ESP32 PCB design by NewTec-GmbH, published on GitHub under the BSD-3-Clause license. It is a 2-layer board measuring 87.5 × 70 mm, with 63 components from 36 distinct parts.

Its main chip is the ESP32-DEVKITC-32D, from the ESP32 family. Other key parts include the SN65HVD233-HT and TPS62160DGK. By type, the board carries 21 resistors, 18 capacitors, 9 diodes, 5 inductors, 3 ICs and 2 connectors.

It belongs with the iot & wireless designs in this gallery.

From the project

A ESP32 based interface between CAN-bus and IoT environments.

- Architecture - Implementation - CAN/OBD-II Switching - Components - Version 1.0 - Version 1.1

This deviced is based on the ESP32­-WROOM-­32E processor, which has a diverse number of interfaces such as digital and analog inputs and output, as well as an integrated CAN bus controller and WiFi capabilities, between many other characteristics. The ESP32 additionally needs a CAN Transceiver to receive the data from the CAN-H and CAN-L lines.

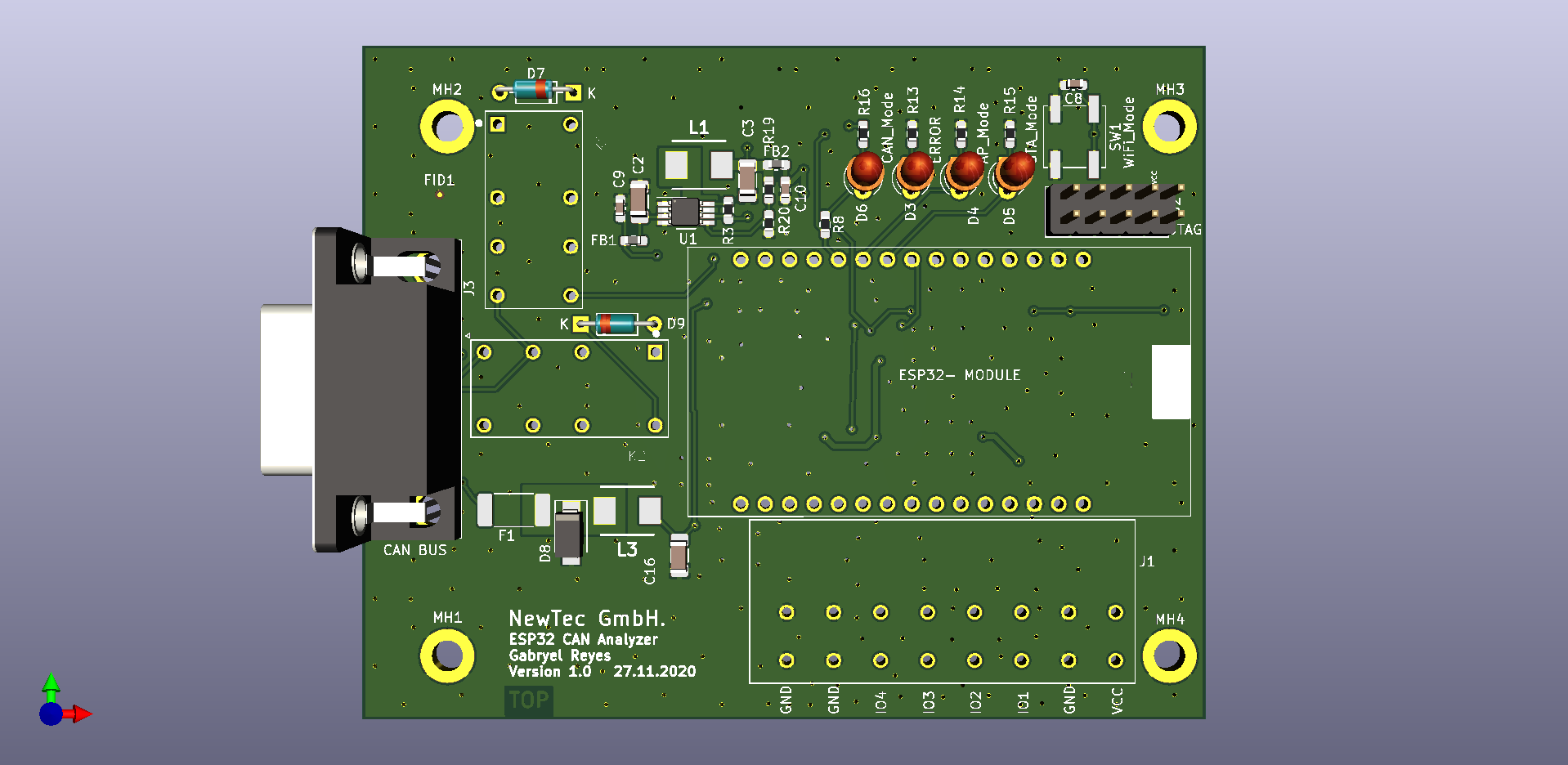

Esp32-can iot, from the project README
From the project README

Main components on the Esp32-can iot

SN65HVD233-HTTPS62160DGKESP32-DEVKITC-32D

Esp32-can iot bill of materials (BOM)

63 components, 36 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
SN65HVD233-HT
IC1
1
TPS62160DGK
U1
1
ESP32-DEVKITC-32D
U2
1
BC817
Q1
1
CONN_01X08_FEMALE
Conn_01x08_Female
J1
1
JTAG Jumper Pins
J2
1
R452002
F1
2
G5V-2-DC5
K1, K2
1
SW_Push
SW1
1
PESD1CAN
D1
1
SS24
D2
2
RED
D3, D6
2
GREEN
D4, D5
1
1N4148
D7
1
SMAJ16A
D8
1
1N4148
D9
2
Ferrite_Bead
FB1, FB2
1
2.2U
2.2u
L1
1
744242220
L2
1
5u
L3
Show 16 more
QtyPartRefs
9
100N
100n
C1, C8, C9, C10, C11, C13, C14, C17 +1
2
10U
10u
C2, C16
1
22U
22u
C3
3
100P
100p
C4, C5, C6
1
4n
C7
2
1u
C12, C15
2
10K
10k
R1, R3
2
1k
R2, R8
3
0
R4, R5, R21
2
62
R6, R7
4
100
R9, R10, R11, R12
4
510
500
R13, R14, R15, R16
1
430
R17
1
150
R18
1
910K
953k
R19
1
180K
180k
R20

Esp32-can iot design files

The KiCad project lives in the NewTec-GmbH/esp32-can-iot repository on GitHub; these links point at the commit this page was built from.

Esp32-can iot: common questions

What microcontroller does the Esp32-can iot use?

The Esp32-can iot is built around the ESP32-DEVKITC-32D, from the ESP32 family.

How big is the Esp32-can iot PCB?

The Esp32-can iot measures 87.5 × 70 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Esp32-can iot?

63 components, from 36 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Esp32-can iot design files?

From the NewTec-GmbH/esp32-can-iot repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Esp32-can iot design in my own project?

Yes, under the terms of its BSD-3-Clause license, which NewTec-GmbH chose for the repository.
