Macro microcontroller-2

Nicholas1023·macro-microcontroller-2·PCB Files/macro-microcontroller-2.kicad_pcb

Macro microcontroller-2 PCB layout, top view — open source RP2040/RP2350 board by Nicholas1023
Simulate this board

About the Macro microcontroller-2 PCB

Macro microcontroller-2 is an open source RP2040/RP2350 PCB design by Nicholas1023, published on GitHub under the CERN-OHL-W-2.0 license. It is a 2-layer board measuring 96.5 × 35.6 mm, with 43 components from 25 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the TLV71311PDBVR, XC6206P332MR, W25Q128JVP and TPS76350. By type, the board carries 11 capacitors, 9 resistors, 6 switches, 5 ICs, 4 diodes and 3 connectors.

It belongs with the keyboards and dev boards & breakouts designs in this gallery.

From the project

An RP2040 microcontroller development board with an integrated macropad that lets you control GPIOs with keyboard keys on a single PCB, plus a custom BASIC interpreter and disk operating system.

An RP2040 microcontroller development board with an integrated macropad that lets you control GPIOs with keyboard keys on a single PCB, plus a custom BASIC interpreter and disk operating system.

Documentation page: https://nicholaslim.me/macro-microcontroller-2

Hack Club Stardance Challenge project: https://stardance.hackclub.com/projects/21502

View hardware demonstration at https://nicholaslim.me/macro-microcontroller-2/assets/hardware-demo.mp4!

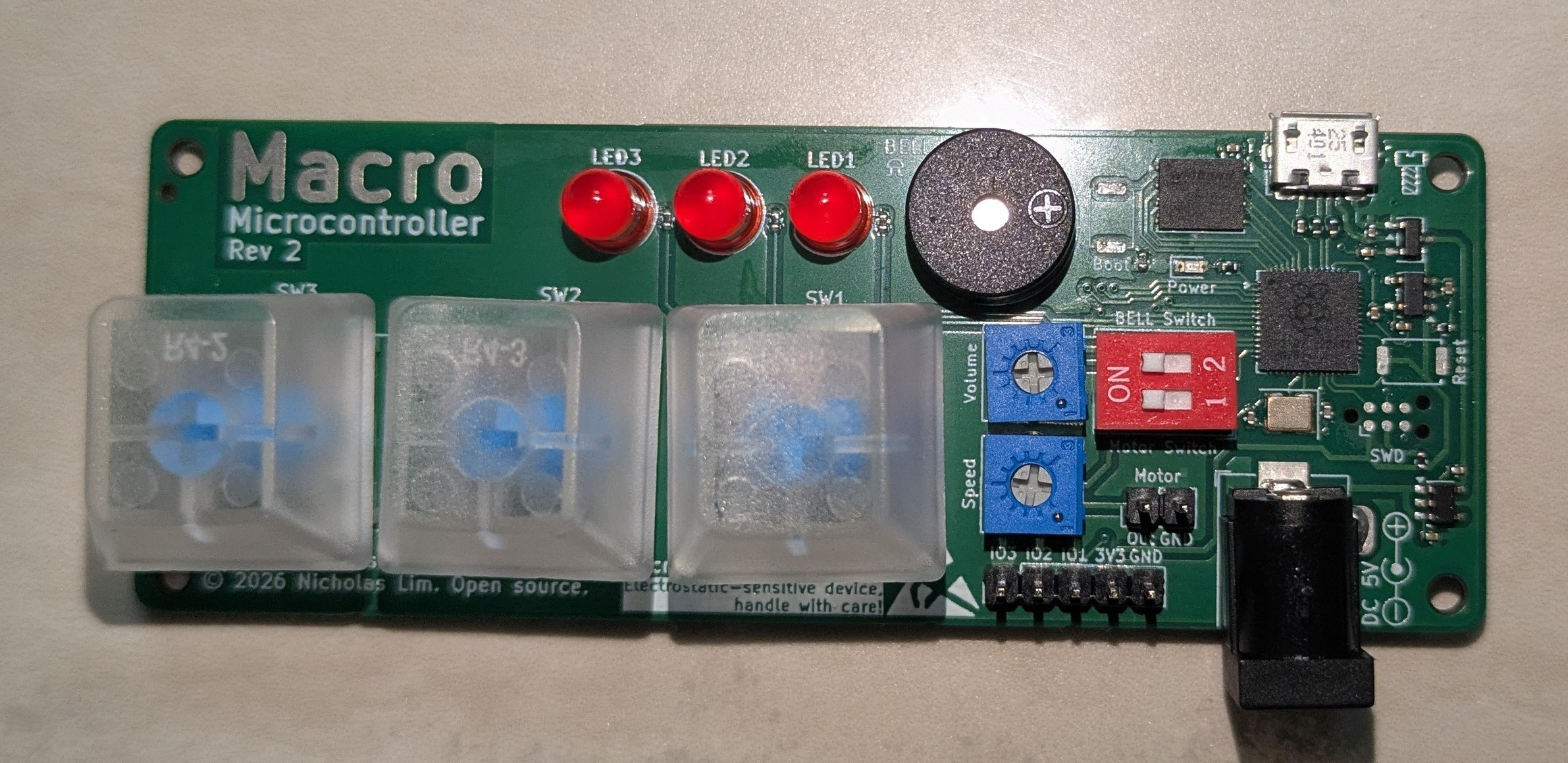

Macro microcontroller-2, from the project README
From the project README

Main components on the Macro microcontroller-2

RP2040TLV71311PDBVRXC6206P332MRW25Q128JVPTPS76350

Macro microcontroller-2 bill of materials (BOM)

43 components, 25 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
RP2040
U1
1
TLV71311PDBVR
U2
1
XC6206P332MR
U3
1
W25Q128JVP
U4
1
TPS76350
U6
1
C2905434
Motor_DC
M1
1
NX3225SA-12MHZ
NX3225SA-12MHz
Y1
1
C132560
USB_B_Micro
J1
1
C16214
Barrel_Jack_MountingPin
J3
1
C5156614
GPIO
J4
1
HMB1206-03
BZ1
2
C6278770
Pot
RV1, RV2
3
Button
SW1, SW2, SW3
1
C115357
Reset
SW4
1
C92646
Controls
SW5
1
C115357
Boot
SW6
1
LED1
D1
1
LED2
D2
1
LED3
D3
1
LED
D4
Show 5 more
QtyPartRefs
9
0.1UF
0.1uF
C1, C2, C3, C4, C5, C6, C7, C10 +1
2
8PF
8pF
C8, C9
2
27OHM
27ohm
R1, R6
4
220OHM
220ohm
R2, R4, R5, R7
3
5KOHM
5kohm
R3, R8, R9

Macro microcontroller-2 design files

The KiCad project lives in the Nicholas1023/macro-microcontroller-2 repository on GitHub; these links point at the commit this page was built from.

Macro microcontroller-2: common questions

What microcontroller does the Macro microcontroller-2 use?

The Macro microcontroller-2 is built around the RP2040, from the RP2040/RP2350 family.

How big is the Macro microcontroller-2 PCB?

The Macro microcontroller-2 measures 96.5 × 35.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Macro microcontroller-2?

43 components, from 25 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Macro microcontroller-2 design files?

From the Nicholas1023/macro-microcontroller-2 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Macro microcontroller-2 design in my own project?

Yes, under the terms of its CERN-OHL-W-2.0 license, which Nicholas1023 chose for the repository.

Can I test firmware for the Macro microcontroller-2 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
