About the LedScreen PCB

LedScreen is an open source RP2040/RP2350 PCB design by Nickdev8, published on GitHub under the MIT license. It is a 2-layer board measuring 87 × 84 mm, with 39 components from 21 distinct parts.

Its main chip is the RaspberryPi_Pico, from the RP2040/RP2350 family. Other key parts include the 74HCT245. By type, the board carries 8 resistors, 3 capacitors, 1 IC, 1 module and 1 connector.

It belongs with the displays & leds designs in this gallery.

From the project

With this board you can control multiple WS2812 LED lines with XLight sequences. The main idea is that I wanted one board that could handle the panel data, SD card playback, and animation syncing between boards. That i all achieved with this pcb.

The basic idea is: 1. Flash the Pico with the firmware from arduinofirmware/Main/. 2. Put .lsa` animation files in the SD card root. 3. Connect the LED panels and power them from an external regulated 5V PSU. 4. If needed, chain multiple boards together with the sync in/out headers.

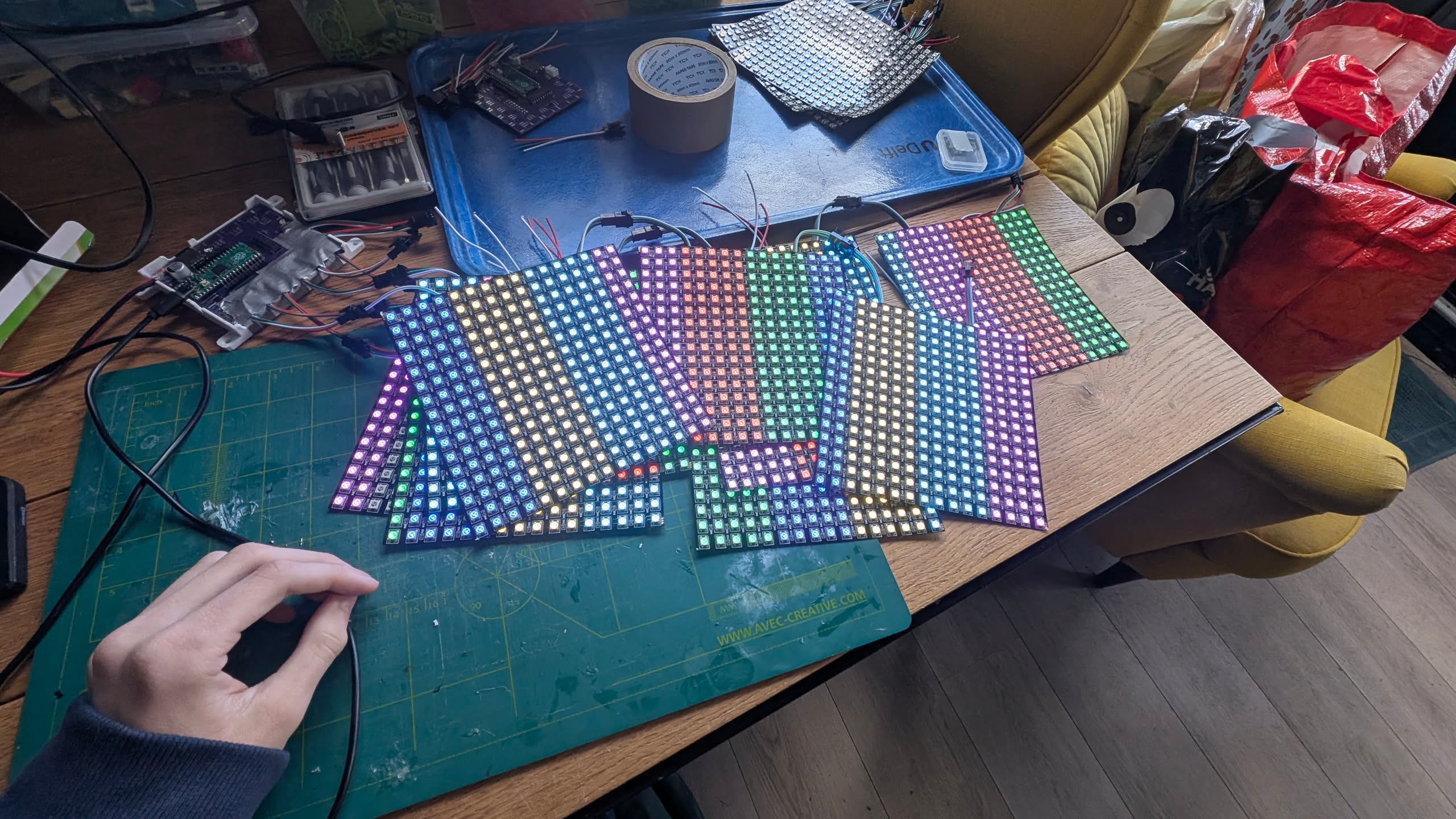

LedScreen, from the project README — From the project README

Main components on the LedScreen

74HCT245 RaspberryPi_Pico

LedScreen bill of materials (BOM)

39 components, 21 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	74HCT245	DIP-20_W7.62mm	U1
1	RaspberryPi_Pico	RaspberryPi_Pico_Common_THT	A1
1	Micro_SD_Card_Det_Hirose_DM3AT	microSD_HC_Hirose_DM3AT-SF-PEJM5	J1
1	Conn_01x13	PinHeader_1x13_P2.54mm_Vertical	GPIO1
1	SPARE_GPIO_13	JST_XH_S3B-XH-SM4-TB_1x03-1MP_P2.50mm_Horizontal	J_GPIO13
1	SPARE_GPIO_14	JST_XH_S3B-XH-SM4-TB_1x03-1MP_P2.50mm_Horizontal	J_GPIO14
1	SPARE_GPIO_15	JST_XH_S3B-XH-SM4-TB_1x03-1MP_P2.50mm_Horizontal	J_GPIO15
1	SPARE_GPIO_16	JST_XH_S3B-XH-SM4-TB_1x03-1MP_P2.50mm_Horizontal	J_GPIO16
9	Conn_01x03	JST_XH_S3B-XH-SM4-TB_1x03-1MP_P2.50mm_Horizontal	J_LED0, J_LED1, J_LED2, J_LED3, J_LED4, J_LED5, J_LED6, J_LED7 +1
1	Conn_01x03	PinHeader_1x03_P2.54mm_Vertical	J_MODE1
1	Conn_01x10	PinHeader_1x10_P2.54mm_Vertical	J_PWRA1
2	Conn_01x02	PinHeader_1x02_P2.54mm_Horizontal	J_SYNC_IN1, J_SYNC_OUT1
1	TP_PWR	PinHeader_1x03_P2.54mm_Vertical	J_TP_PWR1
1	TP_SIG	PinHeader_1x03_P2.54mm_Vertical	J_TP_SIG1
2	10k	R_0805_2012Metric	R_MODE_PD1, R_SYNC_PD1
1	220	R_0805_2012Metric	R_SYNC_SER1
2	Conn_01x01_Pin	PinHeader_1x01_P2.54mm_Vertical	V2, V5
1	100nF	C_0805_2012Metric	C1
1	1000uF	CP_Radial_D10.0mm_P5.00mm	C2
1	4.7uF	C_1206_3216Metric	C3

Show 1 more

Qty	Part	Footprint	Refs
8	220	R_1206_3216Metric	R1, R2, R3, R4, R5, R6, R7, R8

LedScreen design files

The KiCad project lives in the Nickdev8/LedScreen repository on GitHub; these links point at the commit this page was built from.

LedScreen: common questions

What microcontroller does the LedScreen use?

The LedScreen is built around the RaspberryPi_Pico, from the RP2040/RP2350 family.

How big is the LedScreen PCB?

The LedScreen measures 87 × 84 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the LedScreen?

39 components, from 21 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the LedScreen design files?

From the Nickdev8/LedScreen repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the LedScreen design in my own project?

Yes, under the terms of its MIT license, which Nickdev8 chose for the repository.
