ESPFLASHER

nuclearcat·ESPFLASHER

ESPFLASHER PCB layout, top view — open source board by nuclearcat
Simulate this board

About the ESPFLASHER PCB

ESPFLASHER is an open source PCB design by nuclearcat, published on GitHub under the LGPL-2.1 license. It is a 2-layer board measuring 40 × 21 mm, with 17 components from 12 distinct parts.

Other key parts include the TLV1117LV33DCYR, SRV05-4 and CH340C. By type, the board carries 5 resistors, 4 capacitors, 3 ICs, 2 transistors, 2 connectors and 1 diode.

It belongs with the usb & debug tools designs in this gallery.

From the project

Inexpensive ESP32/ESP8266 programmer

This device implements a USB programmer for ESP32/ESP8266 devices with traditional programming pin management (EN/BOOT0) using [RTS DTR bridge][1].

It also differs from traditional USB-UART converters by a powerful LDO, which allows you to easily power the ESP32 / ESP8266 and related peripherals. Earlier revisions were manufactured by JLCPCB and tested for programming various devices.

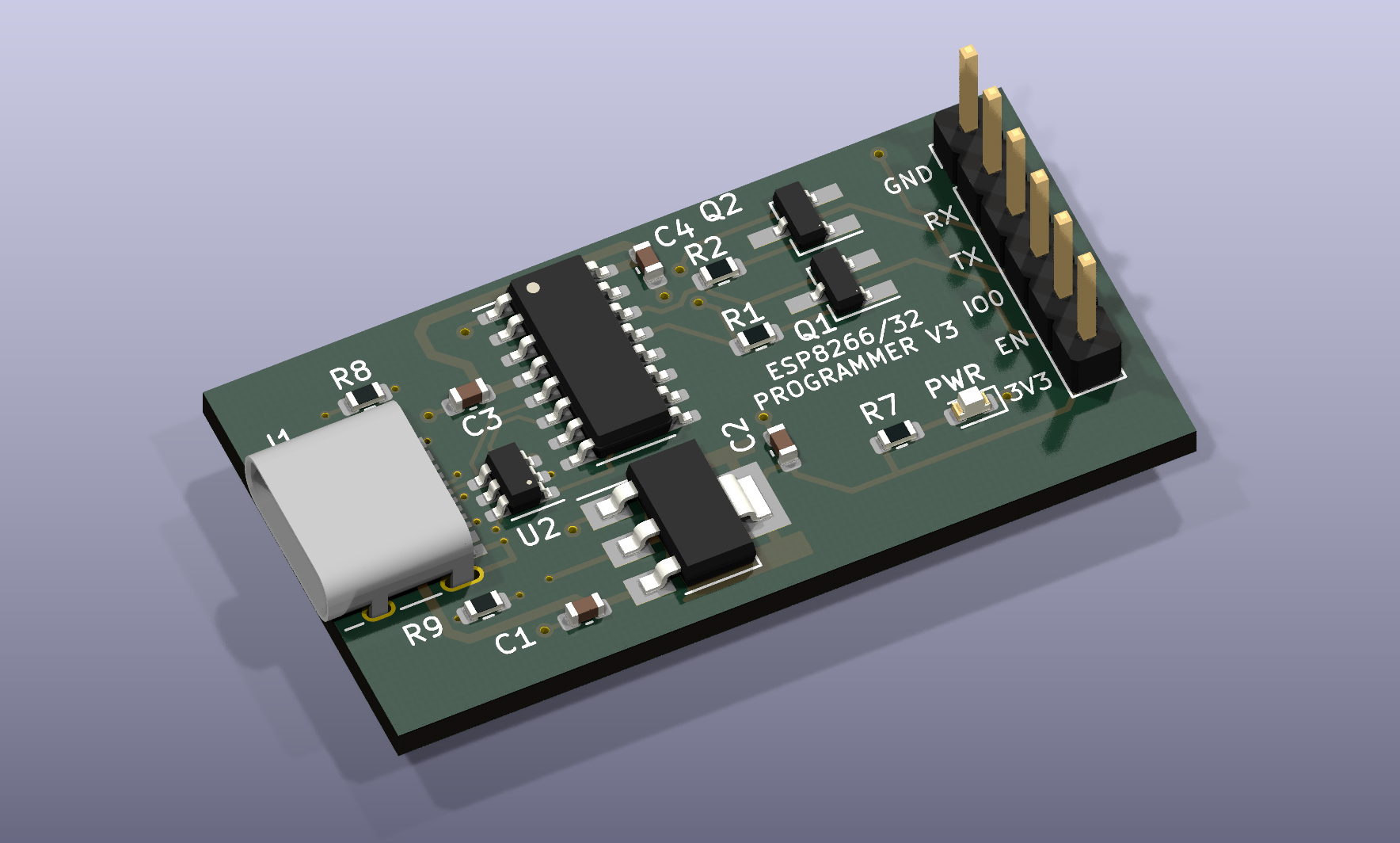

ESPFLASHER, from the project README
From the project README

Main components on the ESPFLASHER

TLV1117LV33DCYRSRV05-4CH340C

ESPFLASHER bill of materials (BOM)

17 components, 12 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
TLV1117LV33DCYR
U1
1
SRV05-4
U2
1
CH340C
U3
2
S8050
Q1, Q2
1
TYPE-C-31-M-12
J1
1
PROG
J2
1
C2286
PWR
D3
2
22U
22u
C1, C2
2
1u
C3, C4
2
10K
10k
R1, R2
1
1k
R7
2
5.1K
5.1k
R8, R9

ESPFLASHER design files

The KiCad project lives in the nuclearcat/ESPFLASHER repository on GitHub; these links point at the commit this page was built from.

ESPFLASHER: common questions

How big is the ESPFLASHER PCB?

The ESPFLASHER measures 40 × 21 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ESPFLASHER?

17 components, from 12 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the ESPFLASHER design files?

From the nuclearcat/ESPFLASHER repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the ESPFLASHER design in my own project?

Yes, under the terms of its LGPL-2.1 license, which nuclearcat chose for the repository.
