OreSat Solar Module - Silicon Cells + MCXN

oresat·oresat-solar-hardware·solar-module-1u-si-MCXN/solar-module-1u-si.kicad_pcb

OreSat Solar Module - Silicon Cells + MCXN layout, top view — open source board by oresat

Simulate this board

About the OreSat Solar Module - Silicon Cells + MCXN

OreSat Solar Module - Silicon Cells + MCXN is an open source PCB design by oresat, published on GitHub. It is a 4-layer board measuring 83 × 100 mm, with 122 components from 46 distinct parts.

Other key parts include the MCXN947VKLT, TMP101NA/3K, IC REG BOOST ADJ 1.5A 10MSOP, INA226AIDGST and LTC4411ES5#TRMPBF. By type, the board carries 51 capacitors, 32 resistors, 16 ICs, 12 diodes, 4 inductors and 3 connectors.

It belongs with the power & battery designs in this gallery.

From the project

OreSat solar array designs and CAD

This repo contains the CAD for OreSat's solar modules. Part of OreSat's design is a module bus system that spans 1 - 3 U, so each array is its own 1U "panel". Oresat0, a 1U CubeSat, thus has 4 solar modules, and OreSat1, a 2U CubeSat, has 8. This approach has pretty severe drawbacks in terms of solar cell coverage area, but it's extremely flexible for having one design across a bunch of different designs. One nifty part of this design is that each 1u panel has its own true maximum power point tracker, with a software-defined MPPT algorithm. We're MPPT elitists - we eschew maximum power point…

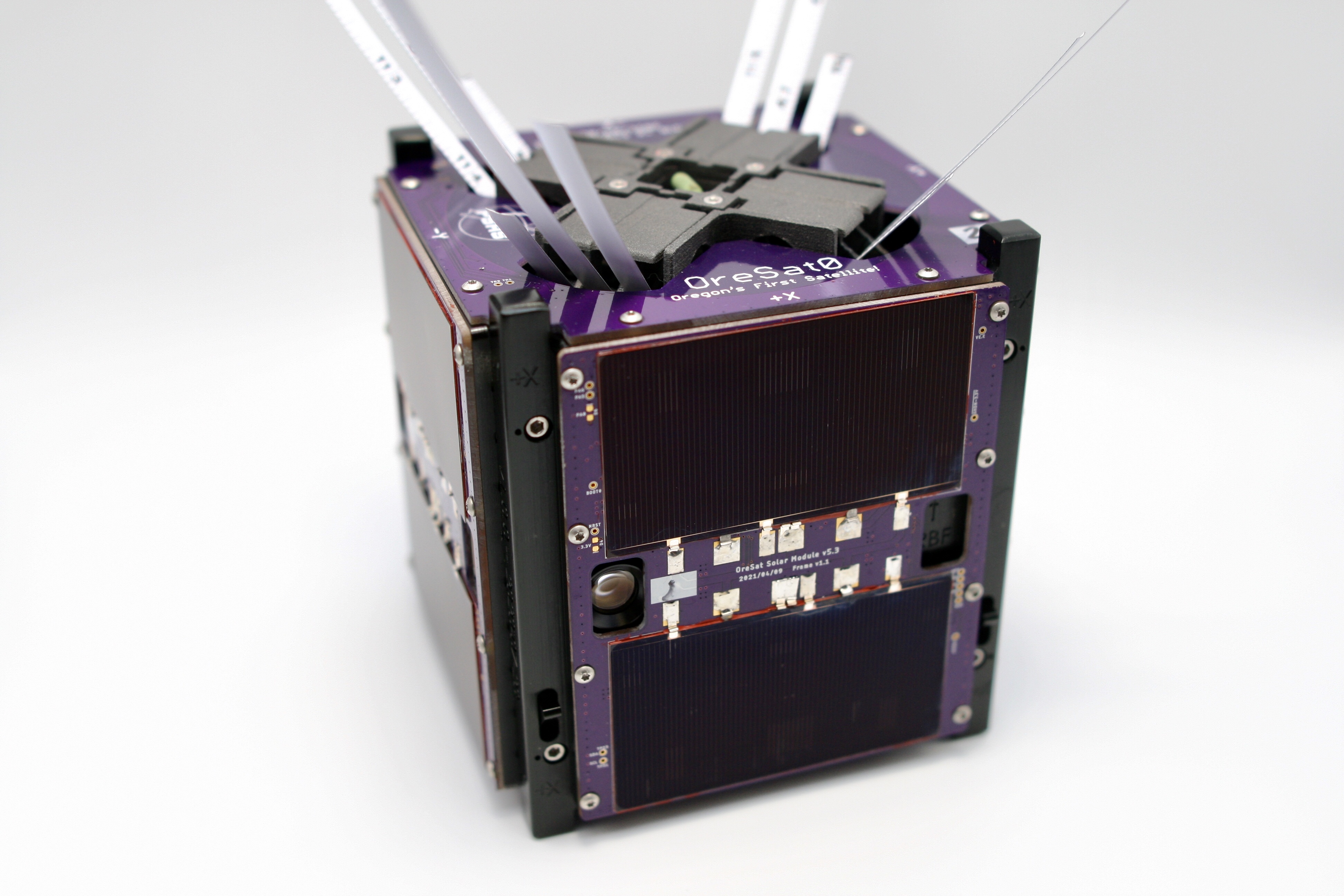

OreSat Solar Module - Silicon Cells + MCXN, from the project README — From the project README

Main components on the OreSat Solar Module - Silicon Cells + MCXN

MCXN947VKLT TMP101NA/3K IC REG BOOST ADJ 1.5A 10MSOP INA226AIDGST LTC4411ES5#TRMPBF IC REG BUCK BOOST ADJ 2A 10WSON TCAN330DCNR LTC4412ES6#TRPBF

OreSat Solar Module - Silicon Cells + MCXN bill of materials (BOM)

122 components, 46 distinct parts.

Qty	Part	Footprint	Refs
1	MCXN947VKLT NXP	MCXN947KVLT-QFP50P1600X1600X160-101N	U1
2	TMP101NA/3K TMP101NA/3KSLOTTED Texas Instruments	DBV6-SLOT	U2, U7
1	IC REG BOOST ADJ 1.5A 10MSOP LT1618EMSTRPBF Analog Devices Inc.	MSOP-10_MS	U3
1	INA226AIDGST INA226 Texas Instruments	VSSOP-10_3x3mm_P0.5mm	U4
8	LTC4411ES5#TRMPBF LTC4411 Analog Devices	TSOT-23-5	U5, U6, U8, U9, U13, U14, U15, U16
1	IC REG BUCK BOOST ADJ 2A 10WSON TPS63060DSCR Texas Instruments	Texas_S-PWSON-N10	U10
1	TCAN330DCNR TCAN330 Texas Instruments	SOT-23-8	U11
1	LTC4412ES6#TRPBF LTC4412 Linear Technologies	TSOT-23-6	U12
1	NTR4101PT1G NTR4101P On Semiconductor	SOT-23	Q1
1	DMP2240UDM-7 Diodes Inc	SOT-23-6	Q2
1	830108212309 24 MHz Wurth	Crystal_SMD_2016-4Pin_2.0x1.6mm	Y2
1	MMS-104-02-L-SH MMS-104-01-[F/L]-SH Samtec	SAMTEC-MMS-104-02-X-SH	J1
1	Conn_01x02	PinHeader_1x02_P2.54mm_Vertical	J2
1	2-1734592-0 OreSat Debug TE	J-TE-2-1734592-0	J3
1	M55-6021242R Harwin	J-Harwin-M55-60X1242R	CF1
2	1N4151WS-E3-08 1N4151WS Vishay	D_SOD-323F	D1, D3
6	KXOB101K08TF-TR KXOB101K08TF Anysolar	KXOB101K08TF	D2, D7, D8, D9, D10, D11
1	150060AS75000 AMBER Wurth	LED_0603_1608Metric	D4
1	NRVB130LSFT1G OnSemi	D_SOD-123	D5
2	KXOB25-02X8TF-TR KXOB2502X8TF Anysolar	KXOB2502X8TF	D12, D13

Show 26 more

Qty	Part	Footprint	Refs
1	2508051217Y6 120 ohm Fair-Rite	0805-B-NOSILK	FB1
1	1227AS-H-1R0N=P2 1u Murata	IND_1226AS-H-1R0N=P2	L1
1	744042100 10u WURTH	744042100	L2
1	SRP2012TMA-1R5M 1.5u Bourns Inc.	L_0805_2012Metric	L3
18	TMK107BJ104KAHT 100n Taiyo Yuden	0603-C-NOSILK	C1, C3, C5, C6, C7, C8, C11, C21 +10
1	C0603C103J3GECAUTO 10n KEMET	0603-C-NOSILK	C2
3	GRT188R61C106KE13D 10u Murata Electronics	0603-C-NOSILK	C4, C13, C20
11	EMK107BBJ475KAHT 4.7u Taiyo Yuden	0603-C-NOSILK	C10, C18, C27, C30, C39, C40, C41, C42 +3
1	GRT21BC71E106KE13L 10u Murata Electronics	0805-C-NOSILK	C12
3	GRM21BR61E226ME44L 22u Murata Electronics	0805-C-NOSILK	C15, C19, C23
2	GRM1885C1H4R7WA01D 4.7p Murata	0603-C-NOSILK	C16, C25
9	TMK107BJ105KAHT 1u Taiyo Yuden	0603-C-NOSILK	C17, C24, C32, C33, C34, C35, C36, C38 +1
1	C0603C100J5GACAUTO 10p KEMET	0603-C-NOSILK	C22
1	CGA4J1X5R1C685K125AC 6.8u TDK Corporation	0603-C-NOSILK	C29
1	TMK107BBJ225MAHT 2.2u Taiyo Yuden	0603-C-NOSILK	C31
1	RMCF0603FT560K 560k Stackpole Electronics Inc	0603-C-NOSILK	R1
5	RMCF0603FT100K 100k Stackpole Electronics Inc	0603-C-NOSILK	R2, R6, R7, R18, R19
6	RMCF0603FT10K0 10k Stackpole Electronics Inc	0603-C-NOSILK	R3, R4, R9, R11, R13, R15
8	ERJ-3GEY0R00V 0 Panasonic	0603-C-NOSILK	R5, R8, R28, R29, R30, R31, R32, R33
1	RMCF0603FT82K5 82.5k Stackpole Electronics Inc	0603-C-NOSILK	R10
1	RMCF0603FT14K7 14.7k Stackpole Electronics Inc	0603-C-NOSILK	R12
3	ERJ-6GEY0R00V 0 Panasonic	0805-C-NOSILK	R14, R20, R22
2	RMCF0603FT2K00 2k Stackpole Electronics Inc	0603-C-NOSILK	R16, R21
1	CSR1206FTR100 100m Stackpole	1206-C	R17
2	RMCF0603FT4K70 4.7k Stackpole Electronics Inc	0603-C-NOSILK	R23, R24
2	RMCF0603FT10R0 10 Stackpole Electronics Inc	0603-C-NOSILK	R36, R37

OreSat Solar Module - Silicon Cells + MCXN design files

The KiCad project lives in the oresat/oresat-solar-hardware repository on GitHub; these links point at the commit this page was built from.

OreSat Solar Module - Silicon Cells + MCXN: common questions

How big is the OreSat Solar Module - Silicon Cells + MCXN?

The OreSat Solar Module - Silicon Cells + MCXN measures 83 × 100 mm, has 4 copper layers and is 1.7702 mm thick.

How many components are on the OreSat Solar Module - Silicon Cells + MCXN?

122 components, from 46 distinct parts. The full bill of materials is listed on this page.

Where can I download the OreSat Solar Module - Silicon Cells + MCXN design files?

From the oresat/oresat-solar-hardware repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the OreSat Solar Module - Silicon Cells + MCXN design in my own project?

The repository has no license, so all rights stay with oresat. Use it as a reference, and ask the author before reusing the design.
