About the OtterCastAudioV2 PCB
OtterCastAudioV2 is an open source PCB design by Ottercast, published on GitHub under the MIT license. It is a 4-layer board measuring 50 × 49.3 mm, with 216 components from 57 distinct parts.
Other key parts include the AllWinner-S3(FBGA-234), C80525, SY8089AAAC, SY6280AAC and SSM2603. By type, the board carries 95 capacitors, 85 resistors, 8 connectors, 8 inductors, 6 ICs and 6 diodes.
It belongs with the audio designs in this gallery.
From the project

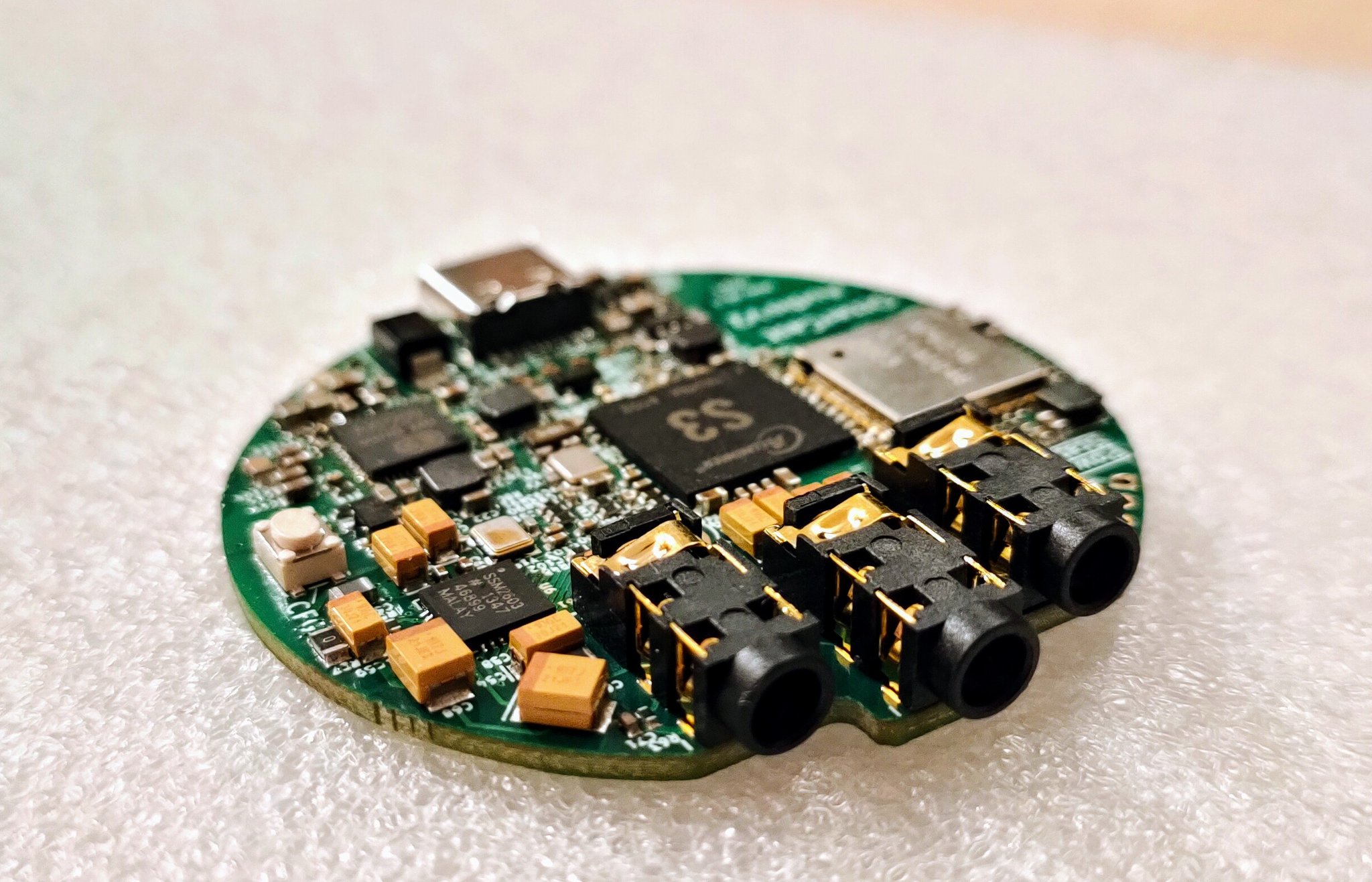

OtterCast is an open-source audio streaming device running Linux. Based on a Sochip S3 SoC, featuring a Webinterface, shairport-sync, snapcast, Spotify Connect and pulseaudio sink/source.
OtterCast is an open-source audio streaming device running Linux. Based on a Sochip S3 SoC, featuring a Webinterface, shairport-sync, snapcast, Spotify Connect and pulseaudio sink/source.
~We are currently planning a small batch production run, stay tuned.~ No we are not, sorry
You don't want to wait? You can of course run a small batch on your own! Please have a look into the production folder, a batch size of just 5 (and up to 30) boards is supported by JLC.

Main components on the OtterCastAudioV2
OtterCastAudioV2 bill of materials (BOM)
216 components, 57 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | dnp AllWinner-S3(FBGA-234) | FBGA-234(Pitch-0.65mm_Pad-0.3mm_11x11x1.08mm) | U1 |
| 1 | C80525 AXP209(QFN-48) | QFN-48-1EP_6x6mm_P0.4mm_EP4.05x4.05mm | U3 |
| 1 | SY8089AAAC | SOT-23-5 | U4 |
| 1 | SY6280AAC | SOT-23-5 | U5 |
| 1 | SSM2603 | LFCSP-28-5x5mm-0.5mm-EP3.14x3.14mm | U6 |
| 1 | AP6236 | LGA_44_12x12mm_0.9mm | U7 |
| 1 | DTA114YKA | SOT-23 | Q1 |
| 1 | C132147 26Mhz TCXO | 2016_SMD_CRYSTAL | X1 |
| 1 | 12.288MHZ 12.288Mhz | Oscillator_3225 | Y1 |
| 1 | 32.768KHZ 32.768kHz | Crystal_SMD_3215-2Pin_3.2x1.5mm | Y2 |
| 1 | 24MHZ 24MHz | Oscillator_3225 | Y3 |
| 1 | dnp UART | PinHeader_1x04_P2.00mm_Vertical_nosilk_center | J1 |
| 1 | order SD | microSD_HC_Hirose_DM3D-SF | J2 |
| 1 | C165948 USB | USB-C 16Pin | J3 |
| 1 | dnp OTG | PinHeader_1x04_P2.00mm_Vertical_nosilk_center | J4 |
| 3 | PJ-3270 | PJ-3270 | J5, J6, J7 |
| 1 | 49F-1201GYD2NL | 49F-1201GYDXNL | J8 |
| 1 | KH-5220-A56_U.FL | KH-5220-A56 | AE1 |
| 1 | order Mic | B4013AM422-42 | MK1 |
| 1 | C92589 RST | SW_SPST_PTS810 | SW3 |
Show 37 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | LED | LED_0603_1608Metric | D1, D2 |
| 1 | LED | LED_0603_1608Metric_Castellated | D3 |
| 1 | P6SMB6.8CA | D_SMB | D4 |
| 2 | ESD5302F | SOT-23 | D5, D6 |
| 3 | C1017 FERRET | R_0805 | FB1, FB2, FB3 |
| 4 | 2.2UH 2.2uH | L_Taiyo-Yuden_MD-3030 | L1, L2, L3, L4 |
| 1 | 2.2UH 2.2nH | L_0402 | L5 |
| 26 | 10U 10u | C_0603 | C1, C4, C6, C14, C16, C17, C19, C20 +18 |
| 1 | 470N 470n | C_0402 | C2 |
| 31 | 100N 100n | C_0402 | C3, C7, C8, C15, C18, C21, C32, C33 +23 |
| 6 | 47U 47u | C_0805 | C5, C10, C11, C42, C43, C45 |
| 1 | 2.2U 2.2u | C_0603 | C9 |
| 2 | 1n | C_0402 | C12, C47 |
| 2 | 1n | C_0805 | C13, C104 |
| 5 | 220P 220p | C_0402 | C46, C50, C53, C70, C71 |
| 1 | DNP | C_0402 | C49 |
| 6 | 18P 18p | C_0402 | C51, C52, C93, C94, C96, C97 |
| 9 | 10U 10u | CP_EIA-3216-10 | C54, C55, C56, C57, C60, C62, C63, C64 +1 |
| 2 | 100U 100u | CP_EIA-3528-12 | C67, C68 |
| 2 | 1p | C_0402 | C75, C77 |
| 1 | 10P 10p | C_0402 | C78 |
| 5 | 100 | R_0402 | R1, R32, R33, R61, R62 |
| 7 | 22 | R_0402 | R2, R15, R34, R54, R76, R77, R81 |
| 10 | 5K1 5k1 | R_0402 | R3, R4, R14, R24, R25, R30, R35, R36 +2 |
| 10 | DNP | R_0402 | R6, R22, R23, R29, R47, R52, R66, R67 +2 |
| 22 | 47K 47k | R_0402 | R7, R8, R9, R10, R11, R12, R13, R18 +14 |
| 4 | 200K 200k | R_0402 | R16, R21, R40, R78 |
| 12 | 2K2 2k2 | R_0402 | R17, R28, R37, R41, R48, R49, R50, R51 +4 |
| 1 | C17477 0R | R_0805 | R27 |
| 1 | 3K3 3k3 | R_0402 | R31 |
| 1 | 3K9 3k9 | R_0402 | R38 |
| 1 | 680 | R_0402 | R43 |
| 3 | 0 | R_0402 | R44, R45, R46 |
| 2 | 240 | R_0402 | R82, R83 |
| 1 | 10M | R_0402 | R84 |
| 1 | 6K04 6k04 | R_0402 | R89 |
| 4 | 51 | R_0402 | R90, R91, R92, R93 |
OtterCastAudioV2 design files
The KiCad project lives in the Ottercast/OtterCastAudioV2 repository on GitHub; these links point at the commit this page was built from.
OtterCastAudioV2: common questions
How big is the OtterCastAudioV2 PCB?
The OtterCastAudioV2 measures 50 × 49.3 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the OtterCastAudioV2?
216 components, from 57 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the OtterCastAudioV2 design files?
From the Ottercast/OtterCastAudioV2 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the OtterCastAudioV2 design in my own project?
Yes, under the terms of its MIT license, which Ottercast chose for the repository.
