About the Skywatch PCB

Skywatch is an open source RP2040/RP2350 PCB design by ozkan, published on GitHub under the MIT license. It is a 2-layer board measuring 233.7 × 91.5 mm, with 120 components from 23 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the GD25Q80CEIGR and ME6211C33M5G-N. By type, the board carries 48 diodes, 38 switches, 14 capacitors, 11 resistors, 3 ICs and 3 connectors.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

35% ergonomic ortholinear keyboard, powered by RP2040, along with OLED and hotswap sockets support

Have questions or need help, reach out via our Telegram group where you will find many helpful Skywatch owners.

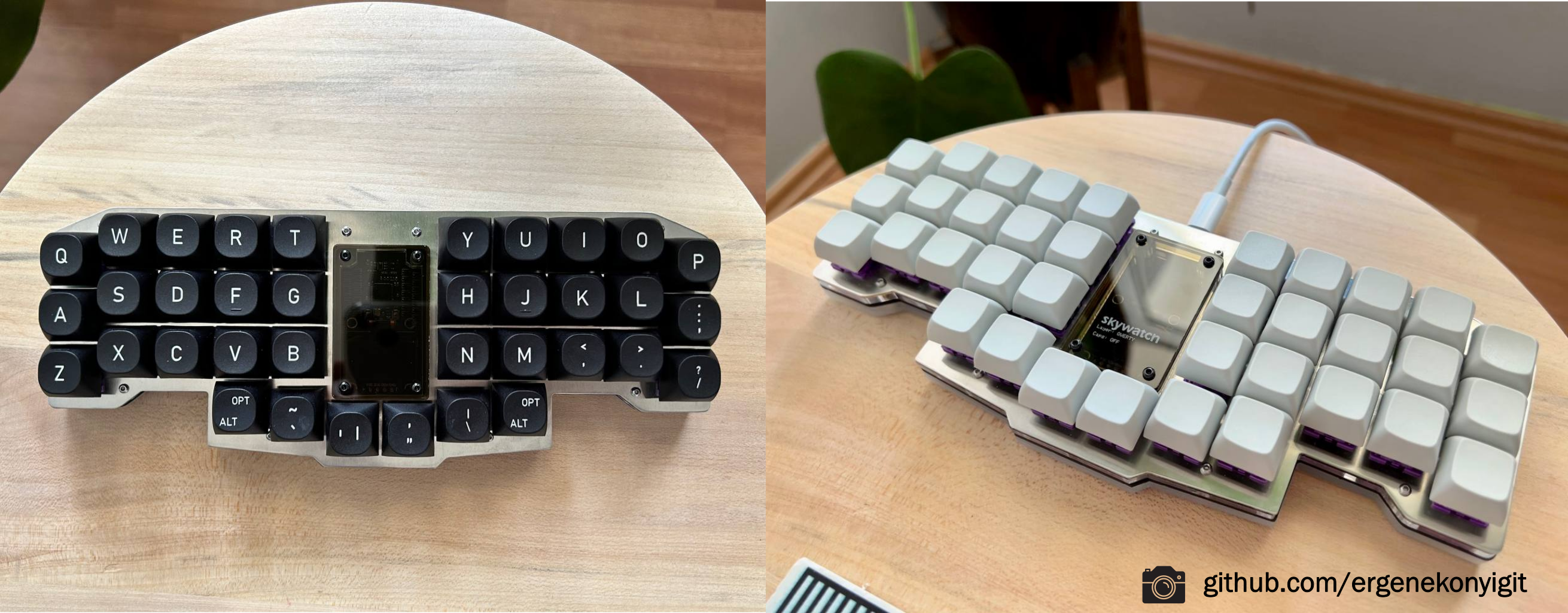

Skywatch, from the project README — From the project README

Main components on the Skywatch

RP2040 GD25Q80CEIGR ME6211C33M5G-N

Skywatch bill of materials (BOM)

120 components, 23 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	RP2040 Raspberry Pi	QFN-56-1EP_7x7mm_P0.4mm_EP3.2x3.2mm	U1
1	GD25Q80CEIGR GigaDevice Semicon Beijing	USON-8-1EP_3x2mm_P0.5mm_EP0.25x1.65mm	U2
1	ME6211C33M5G-N XC6210B332MR-G MICRONE(Nanjing Micro One Elec)	SOT-23-5	U3
1	2TJ412000HYGBC Crystal_GND24 JYJE	Crystal_SMD_2520-4Pin_2.5x2.0mm	Y1
1	TYPE-C-31-M-13B USB_C_Receptacle_USB2.0 Korean Hroparts Elec	USB_C_Receptacle_HRO_TYPE-C-31-M-13B	J1
1	Conn_01x05_Female	PinHeader_1x05_P2.54mm_Vertical	J2
1	Conn_01x04_Female	PinHeader_1x04_P2.54mm_Vertical	J3
1	SMD0603-050 Polyfuse TECHFUSE	Fuse_0603_1608Metric	F1
2	1TS015A-1400-0600-CT SW_Push HYP (Hongyuan Precision)	SW_SPST_CK_KXT3	SW1, SW2
36	MX_SW_HS	MX_TH_HS_1U	SW3, SW4, SW5, SW6, SW7, SW8, SW9, SW10 +28
1	NCD0402R1 LED Foshan NationStar Optoelectronics	LED_0402_1005Metric	D1
1	B5817WS B5817 Shandong Jingdao Microelectronics	D_SOD-323	D2
36	1N4148WS 1N4148W Slkor(SLKORMICRO Elec.)	D_SOD-323	D3, D4, D5, D6, D7, D8, D9, D10 +28
10	WS2812B	LED_WS2812B_PLCC4_5.0x5.0mm_P3.2mm	D39, D40, D41, D42, D43, D44, D45, D46 +2
1	PZ1608U600-2R5TF FerriteBead_Small Sunlord	L_0603_1608Metric	FB1
2	CL10A475KO8NNNC 1µ Samsung Electro-Mechanics	C_0603_1608Metric	C1, C2
2	0402CG150J500NT 15p FH (Guangdong Fenghua Advanced Tech)	C_0402_1005Metric	C3, C4
2	CL05A105KA5NQNC 1µ Samsung Electro-Mechanics	C_0402_1005Metric	C5, C6
8	CL05B104KO5NNNC 100n Samsung Electro-Mechanics	C_0402_1005Metric	C7, C8, C9, C10, C11, C12, C13, C14
3	0402WGF1001TCE 1k UNI-ROYAL(Uniroyal Elec)	R_0402_1005Metric	R1, R3, R8

Show 3 more

Qty	Part	Footprint	Refs
3	0402WGF1002TCE 10k UNI-ROYAL(Uniroyal Elec)	R_0402_1005Metric	R2, R9, R11
3	0402WGF5101TCE 5.1k UNI-ROYAL(Uniroyal Elec)	R_0402_1005Metric	R4, R5, R10
2	0402WGF270JTCE 27 UNI-ROYAL(Uniroyal Elec)	R_0402_1005Metric	R6, R7

Skywatch design files

The KiCad project lives in the ozkan/skywatch repository on GitHub; these links point at the commit this page was built from.

Skywatch: common questions

What microcontroller does the Skywatch use?

The Skywatch is built around the RP2040, from the RP2040/RP2350 family.

How big is the Skywatch PCB?

The Skywatch measures 233.7 × 91.5 mm, has 2 copper layers and is 1.2 mm thick.

How many components are on the Skywatch?

120 components, from 23 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Skywatch design files?

From the ozkan/skywatch repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Skywatch design in my own project?

Yes, under the terms of its MIT license, which ozkan chose for the repository.

Can I test firmware for the Skywatch without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
