KiCad RTM Adapterboard v3 0

PeterDirnhofer·KiCad_RTM_Adapterboard_v3_0

KiCad RTM Adapterboard v3 0 PCB layout, top view — open source ESP32 board by PeterDirnhofer

About the KiCad RTM Adapterboard v3 0 PCB

KiCad RTM Adapterboard v3 0 is an open source ESP32 PCB design by PeterDirnhofer, published on GitHub. It is a 2-layer board measuring 100 × 100 mm, with 68 components from 32 distinct parts.

Its main chip is the ESP32-DEVKITC-32D, from the ESP32 family. Other key parts include the ADS1115A(optional), DAC X, DAC Y, DAC Z and ADC 8 Click. By type, the board carries 27 resistors, 11 ICs, 11 connectors, 10 capacitors and 9 diodes.

From the project

Beschreibung in https://500-euro-rtm.de/wiki/index.php?title=500-Euro-Rastertunnelmikroskop

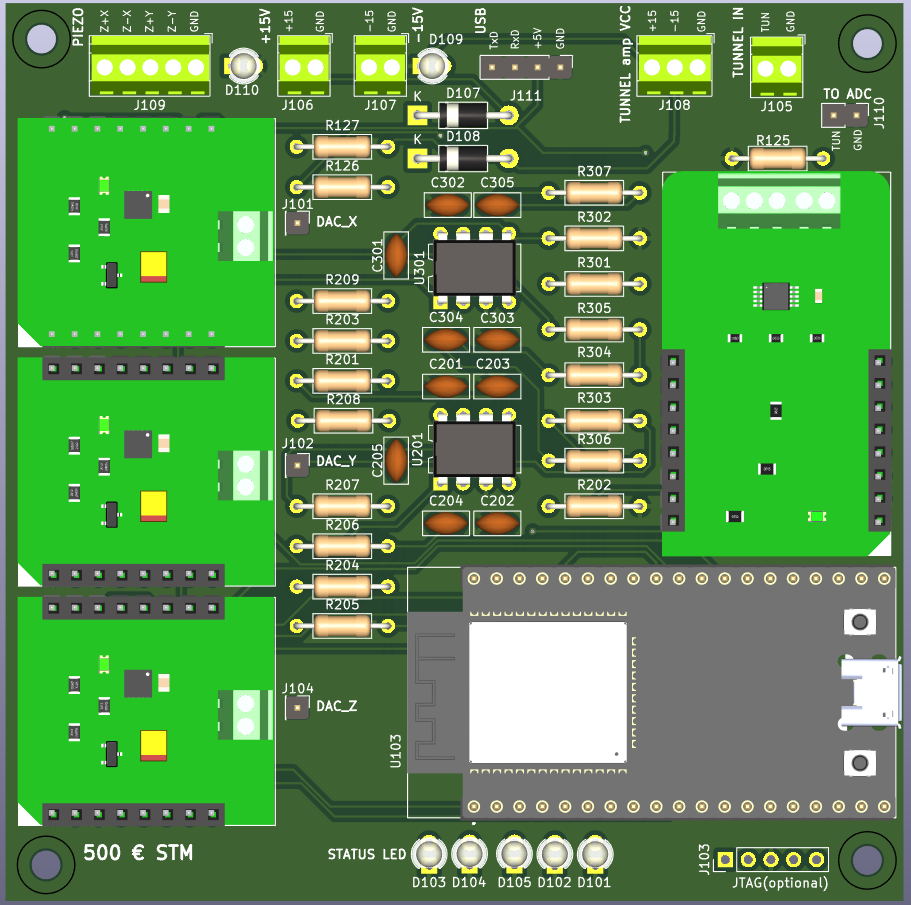

KiCad RTM Adapterboard v3 0, from the project README
From the project README

Main components on the KiCad RTM Adapterboard v3 0

ADS1115A(optional)DAC XESP32-DEVKITC-32DDAC YDAC ZADC 8 ClickmintUniRegensburgOTHTL072

KiCad RTM Adapterboard v3 0 bill of materials (BOM)

68 components, 32 distinct parts.

QtyPartRefs
1
ADS1115A(optional)
U101
1
DAC X
U102
1
ESP32-DEVKITC-32D
U103
1
DAC Y
U104
1
DAC Z
U106
1
ADC 8 Click
U107
1
mint
U108
1
UniRegensburg
U109
1
OTH
U110
2
TL072
U201, U301
3
1xPin
J101, J102, J104
1
JTAG(optional)
J103
1
TUNNEL_IN
J105
1
Power in +15V
J106
1
Power in -15V
J107
1
Power out Preamplifier
J108
1
Piezo
J109
1
2xPin
J110
1
USB_Connector
J111
2
LED
D101, D102
Show 12 more
QtyPartRefs
1
RED
D103
1
YELLOW
D104
1
GREEN
D105
2
1N5819
D107, D108
1
LED_+15V
D109
1
LED_-15V
D110
4
100n
C201, C202, C302, C303
6
4n7
C203, C204, C205, C301, C304, C305
9
220
R111, R112, R113, R114, R115, R208, R209, R308 +1
16
3K3
R124, R126, R127, R201, R202, R203, R204, R205 +8
1
1K6
R125
1
K3
R302

KiCad RTM Adapterboard v3 0 design files

The KiCad project lives in the PeterDirnhofer/KiCad_RTM_Adapterboard_v3_0 repository on GitHub; these links point at the commit this page was built from.

KiCad RTM Adapterboard v3 0: common questions

What microcontroller does the KiCad RTM Adapterboard v3 0 use?

The KiCad RTM Adapterboard v3 0 is built around the ESP32-DEVKITC-32D, from the ESP32 family.

How big is the KiCad RTM Adapterboard v3 0 PCB?

The KiCad RTM Adapterboard v3 0 measures 100 × 100 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the KiCad RTM Adapterboard v3 0?

68 components, from 32 distinct parts. The full bill of materials is listed on this page.

Where can I download the KiCad RTM Adapterboard v3 0 design files?

From the PeterDirnhofer/KiCad_RTM_Adapterboard_v3_0 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the KiCad RTM Adapterboard v3 0 design in my own project?

The repository has no license, so all rights stay with PeterDirnhofer. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the KiCad RTM Adapterboard v3 0 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
