Curio
About the Curio PCB
Curio is an open source ESP8266 PCB design by phybros, published on GitHub under the CC-BY-SA-4.0 license. It is a 4-layer board measuring 52.8 × 19.3 mm, with 20 components from 15 distinct parts.
Its main chip is the ESP-12E, from the ESP8266 family. Other key parts include the CY7C65213-28PVXI and NCP1117-3.3_SOT223. By type, the board carries 7 capacitors, 6 resistors, 3 ICs, 3 connectors and 1 switch.
It belongs with the dev boards & breakouts and iot & wireless designs in this gallery.
From the project
ESP-12 based dev board
This repo is the KiCAD project for the board.

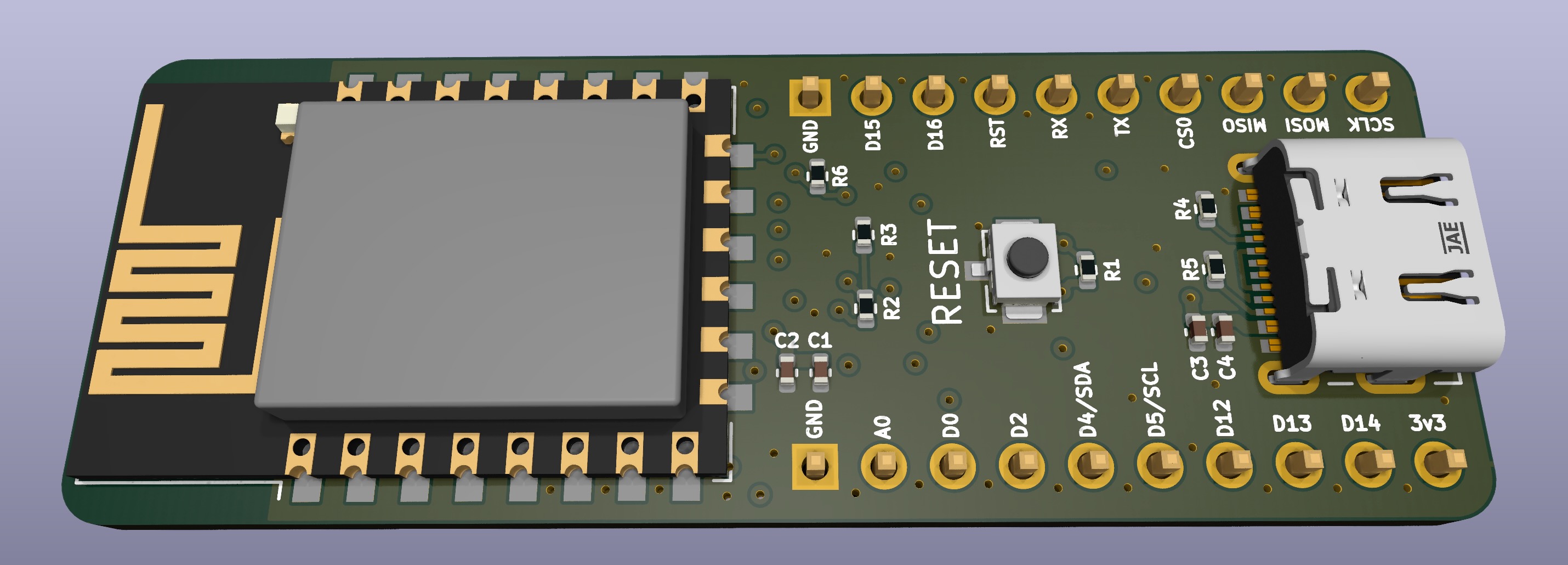

USB-C ESP-12E/F WiFi module Compatible with Arduino Breadboard friendly Voltage divider for the ADC0` pin
A more detailed writeup on the development of this board can be found at !
This repo is licensed under Creative Commons Attribution-ShareAlike 4.0 International.
Main components on the Curio
Curio bill of materials (BOM)
20 components, 15 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CY7C65213-28PVXI | SSOP-28_5.3x10.2mm_P0.65mm | U1 |
| 1 | ESP-12E | ESP-12E | U3 |
| 1 | NCP1117-3.3_SOT223 | SOT-223-3_TabPin2 | U4 |
| 1 | USB_C_Receptacle_USB2.0 | USB_C_Receptacle_JAE_DX07S016JA1R1500 | J1 |
| 2 | Conn_01x10 | PinHeader_1x10_P2.54mm_Vertical | J2, J3 |
| 1 | RST | SW_SPST_B3U-1100P | SW1 |
| 1 | 10n | C_0402_1005Metric | C1 |
| 3 | 10u | C_0402_1005Metric | C2, C5, C6 |
| 1 | 4.7u | C_0402_1005Metric | C3 |
| 1 | 0.1u | C_0402_1005Metric | C4 |
| 1 | 1u | C_0402_1005Metric | C9 |
| 2 | 1k | R_0402_1005Metric | R1, R6 |
| 1 | 220k | R_0402_1005Metric | R2 |
| 1 | 100k | R_0402_1005Metric | R3 |
| 2 | 5k1 | R_0402_1005Metric | R4, R5 |
Curio design files
The KiCad project lives in the phybros/curio repository on GitHub; these links point at the commit this page was built from.
- LayoutCURIO.kicad_pcb
- SchematicCURIO.kicad_sch
Curio: common questions
What microcontroller does the Curio use?
The Curio is built around the ESP-12E, from the ESP8266 family.
How big is the Curio PCB?
The Curio measures 52.8 × 19.3 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Curio?
20 components, from 15 distinct parts. The full bill of materials is listed on this page.
Where can I download the Curio design files?
From the phybros/curio repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Curio design in my own project?
Yes, under the terms of its CC-BY-SA-4.0 license, which phybros chose for the repository.
Can I test firmware for the Curio without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP8266 firmware against it before you order a PCB.
