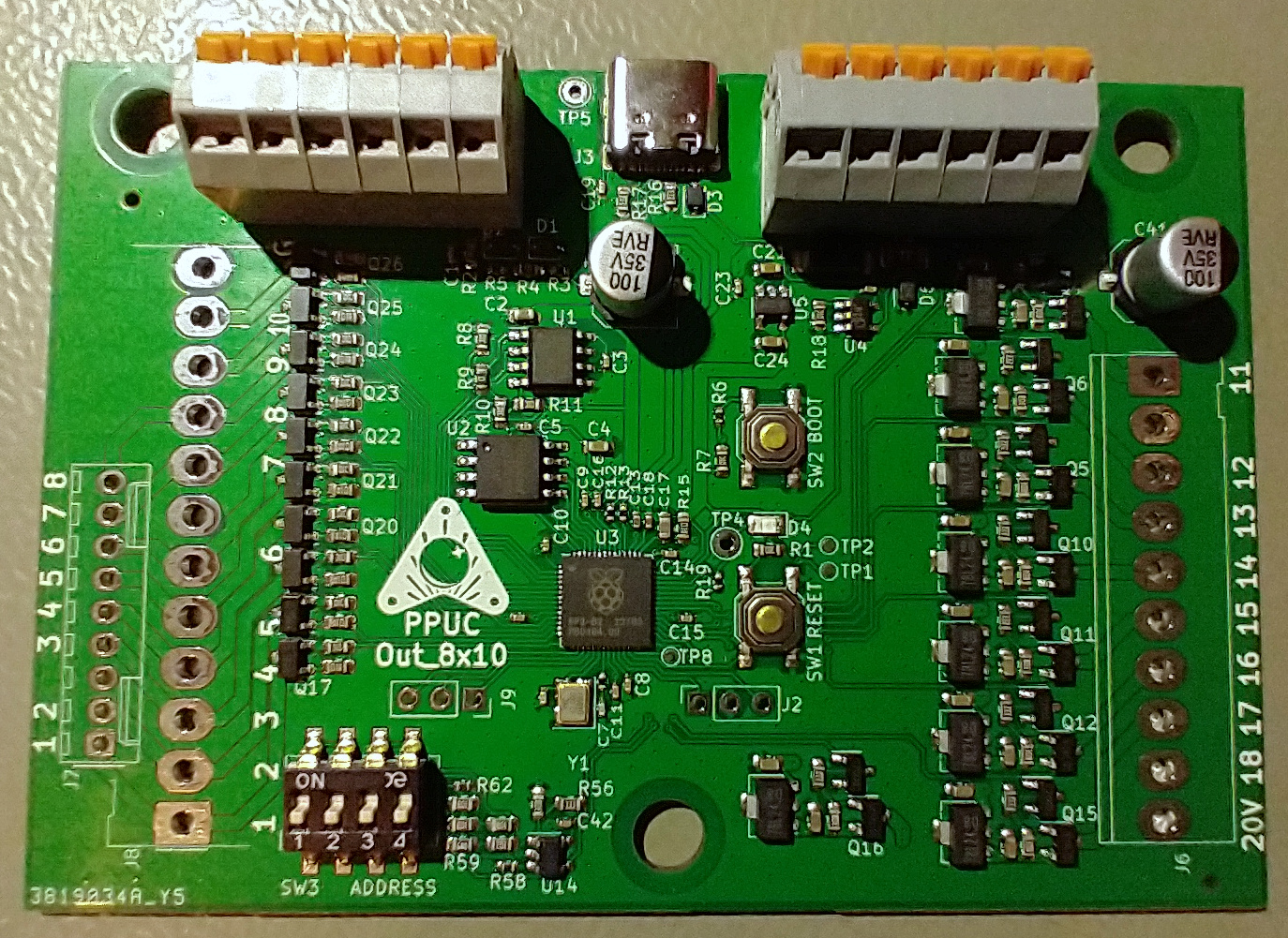

About the Hardware Out 8x10 PCB

Hardware Out 8x10 is an open source RP2040/RP2350 PCB design by PPUC, published on GitHub under the TAPR-OHL-1.0 license. It is a 2-layer board measuring 97.6 × 67.3 mm, with 162 components from 43 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the ADM3483, W25Q128JVSIQ, SN74AHCT1G125, AP2112K-3.3 and L78L24_SOT89. By type, the board carries 62 resistors, 42 capacitors, 26 transistors, 14 ICs, 7 diodes and 6 connectors.

From the project

Hardware for Lamp Matrix Board for PPUC

Main components on the Hardware Out 8x10

ADM3483 W25Q128JVSIQ RP2040 SN74AHCT1G125 AP2112K-3.3 L78L24_SOT89 LMV321

Hardware Out 8x10 bill of materials (BOM)

162 components, 43 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	ADM3483	SOIC-8_3.9x4.9mm_P1.27mm	U1
1	W25Q128JVSIQ	SOIC-8_5.23x5.23mm_P1.27mm	U2
1	RP2040	QFN-56-1EP_7x7mm_P0.4mm_EP3.2x3.2mm	U3
1	SN74AHCT1G125	SOT-23-5	U4
1	AP2112K-3.3	SOT-23-5	U5
8	L78L24_SOT89	SOT-89-3	U6, U7, U8, U9, U10, U11, U12, U13
1	LMV321	SOT-23-5	U14
8	2N7002	SOT-23	Q1, Q2, Q3, Q7, Q8, Q9, Q13, Q14
8	AO3401A	SOT-23	Q4, Q5, Q6, Q10, Q11, Q12, Q15, Q16
10	AO3400A	SOT-23	Q17, Q18, Q19, Q20, Q21, Q22, Q23, Q24 +2
1	12MHz,18pF	Crystal_SMD_3225-4Pin_3.2x2.5mm	Y1
2	CONN_01X06 Conn_01x06	Terminal_Block_RTMPin	J1, J4
1	USB_C_RECEPTACLE_USB2.0 USB_C_Receptacle_USB2.0	USB_C_Receptacle_XKB_U262-16XN-4BVC11	J3
1	CONN_01X10 Conn_01x10	Molex_KK-396_5273-10A_1x10_P3.96mm_Vertical	J6
1	CONN_01X09 Conn_01x09	Molex_KK-254_AE-6410-09A_1x09_P2.54mm_Vertical	J7
1	CONN_01X12 Conn_01x12	Molex_KK-396_5273-12A_1x12_P3.96mm_Vertical	J8
1	JUMPER_2_OPEN Jumper_2_Open	PinHeader_1x02_P2.54mm_Vertical	JP1
1	Reset	SW_SPST_SKQG_WithStem	SW1
1	Boot	SW_SPST_SKQG_WithStem	SW2
1	ADDRESS	SW_DIP_SPSTx04_Slide_6.7x11.72mm_W8.61mm_P2.54mm_LowProfile	SW3

Show 23 more

Qty	Part	Footprint	Refs
2	SD15	D_SOD-323	D1, D2
2	1A	D_SOD-323	D3, D7
1	LED gn	LED_0805_2012Metric	D4
1	SMAJ5.0	D_SMA	D5
1	SD05	D_SOD-323	D6
15	100N 100n	C_0402_1005Metric	C1, C3, C5, C8, C9, C10, C11, C12 +7
5	10U 10u	C_0603_1608Metric	C2, C4, C17, C21, C24
2	27PF 27pF	C_0402_1005Metric	C6, C7
2	1u	C_0402_1005Metric	C13, C18
2	100µ 35V	CP_Elec_6.3x7.7	C22, C41
16	1u 50V	C_0603_1608Metric	C25, C26, C27, C28, C29, C30, C31, C32 +8
16	10K 10k	R_0603_1608Metric	R1, R7, R8, R10, R11, R18, R36, R37 +8
12	100R	R_0603_1608Metric	R2, R15, R40, R41, R42, R43, R48, R49 +4
1	120R	R_0603_1608Metric	R4
5	1k	R_0402_1005Metric	R6, R14, R19, R58, R62
1	0	R_0603_1608Metric	R9
2	27	R_0402_1005Metric	R12, R13
2	5K1 5k1	R_0603_1608Metric	R16, R17
12	2k	R_0603_1608Metric	R20, R21, R22, R26, R27, R28, R32, R33 +4
8	3K3 3k3	R_0603_1608Metric	R23, R24, R25, R29, R30, R31, R34, R35
1	33K 33k	R_0603_1608Metric	R56
1	5k	R_0603_1608Metric	R59
1	3k	R_0603_1608Metric	R63

Hardware Out 8x10 design files

The KiCad project lives in the PPUC/Hardware_Out_8x10 repository on GitHub; these links point at the commit this page was built from.

Hardware Out 8x10: common questions

What microcontroller does the Hardware Out 8x10 use?

The Hardware Out 8x10 is built around the RP2040, from the RP2040/RP2350 family.

How big is the Hardware Out 8x10 PCB?

The Hardware Out 8x10 measures 97.6 × 67.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Hardware Out 8x10?

162 components, from 43 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Hardware Out 8x10 design files?

From the PPUC/Hardware_Out_8x10 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Hardware Out 8x10 design in my own project?

Yes, under the terms of its TAPR-OHL-1.0 license, which PPUC chose for the repository.
