About the Rp2040Term PCB

Rp2040Term is an open source RP2040/RP2350 PCB design by PR77, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 99.6 × 99.6 mm, with 44 components from 22 distinct parts.

Its main chip is the Pico, from the RP2040/RP2350 family. Other key parts include the LQ042T5DZ11, 4N25, TSR_1-2450 and TSR_1-2412. By type, the board carries 12 capacitors, 10 resistors, 6 ICs, 4 diodes, 3 connectors and 3 jumpers.

It belongs with the displays & leds designs in this gallery.

From the project

VT100 Terminal with TFT LCD

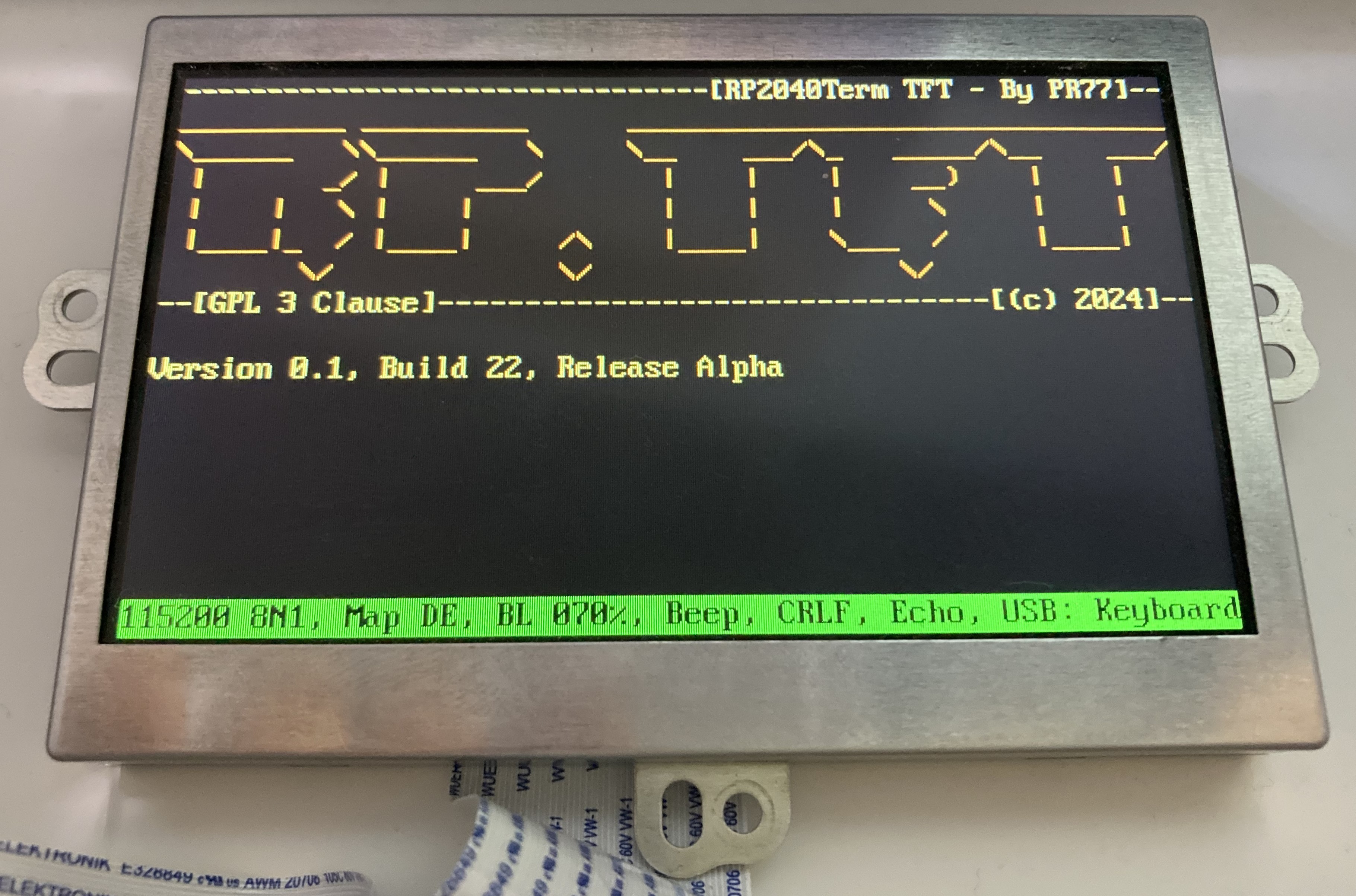

I am currently using this with a Sharp LQ042 LCD with a resolution of 480x272. This works perfectly with a 8x16 Font to give a total of 60 Columns by 17 Rows.

Rp2040Term, from the project README — From the project README

Main components on the Rp2040Term

Pico LQ042T5DZ11 4N25 TSR_1-2450 TSR_1-2412

Rp2040Term bill of materials (BOM)

44 components, 22 distinct parts.

Qty	Part	Footprint	Refs
1	Pico	RPi_Pico_SMD_TH	U1
1	LQ042T5DZ11	LQ042TDZ11	U2
2	4N25	DIP-6_W7.62mm	U3, U4
1	TSR_1-2450	Converter_DCDC_TRACO_TSR-1_THT	U5
1	TSR_1-2412	Converter_DCDC_TRACO_TSR-1_THT	U6
2	NPN	TO-92L_HandSolder	Q1, Q2
1	SERIAL	TerminalBlock_Phoenix_MKDS-1,5-3-5.08_1x03_P5.08mm_Horizontal	J1
1	Power_1	PhoenixContact_MSTBA_2,5_2-G-5,08_1x02_P5.08mm_Horizontal	J2
1	Power_2	PhoenixContact_MSTBA_2,5_2-G-5,08_1x02_P5.08mm_Horizontal	J3
1	TX_ISO	R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal	JP1
1	RX_ISO	R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal	JP2
1	GND_ISO	SolderJumper-2_P1.3mm_Open_TrianglePad1.0x1.5mm	JP3
1	Piezo Buzzer	Buzzer_12x9.5RM7.6	LS1
1	MGJ2D051515SC	Converter_DCDC_Murata_MGJ2DxxxxxxSC_THT	PS1
4	1N914	D_DO-35_SOD27_P7.62mm_Horizontal	D1, D2, D3, D4
2	100uH	L_Coilcraft_XAL5050-XXX	L1, L2
1	100uF	C_0805_2012Metric_Pad1.18x1.45mm_HandSolder	C1
11	100nF	C_0805_2012Metric_Pad1.18x1.45mm_HandSolder	C2, C3, C4, C5, C6, C7, C8, C9 +3
2	4K8	R_0805_2012Metric_Pad1.20x1.40mm_HandSolder	R1, R10
4	10K	R_0805_2012Metric_Pad1.20x1.40mm_HandSolder	R2, R3, R6, R9

Show 2 more

Qty	Part	Footprint	Refs
2	220	R_0805_2012Metric_Pad1.20x1.40mm_HandSolder	R4, R8
2	100K	R_0805_2012Metric_Pad1.20x1.40mm_HandSolder	R5, R7

Rp2040Term design files

The KiCad project lives in the PR77/rp2040Term repository on GitHub; these links point at the commit this page was built from.

Rp2040Term: common questions

What microcontroller does the Rp2040Term use?

The Rp2040Term is built around the Pico, from the RP2040/RP2350 family.

How big is the Rp2040Term PCB?

The Rp2040Term measures 99.6 × 99.6 mm, has 2 copper layers and is 1.61544 mm thick.

How many components are on the Rp2040Term?

44 components, from 22 distinct parts. The full bill of materials is listed on this page.

Where can I download the Rp2040Term design files?

From the PR77/rp2040Term repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Rp2040Term design in my own project?

Yes, under the terms of its GPL-3.0 license, which PR77 chose for the repository.

Can I test firmware for the Rp2040Term without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
