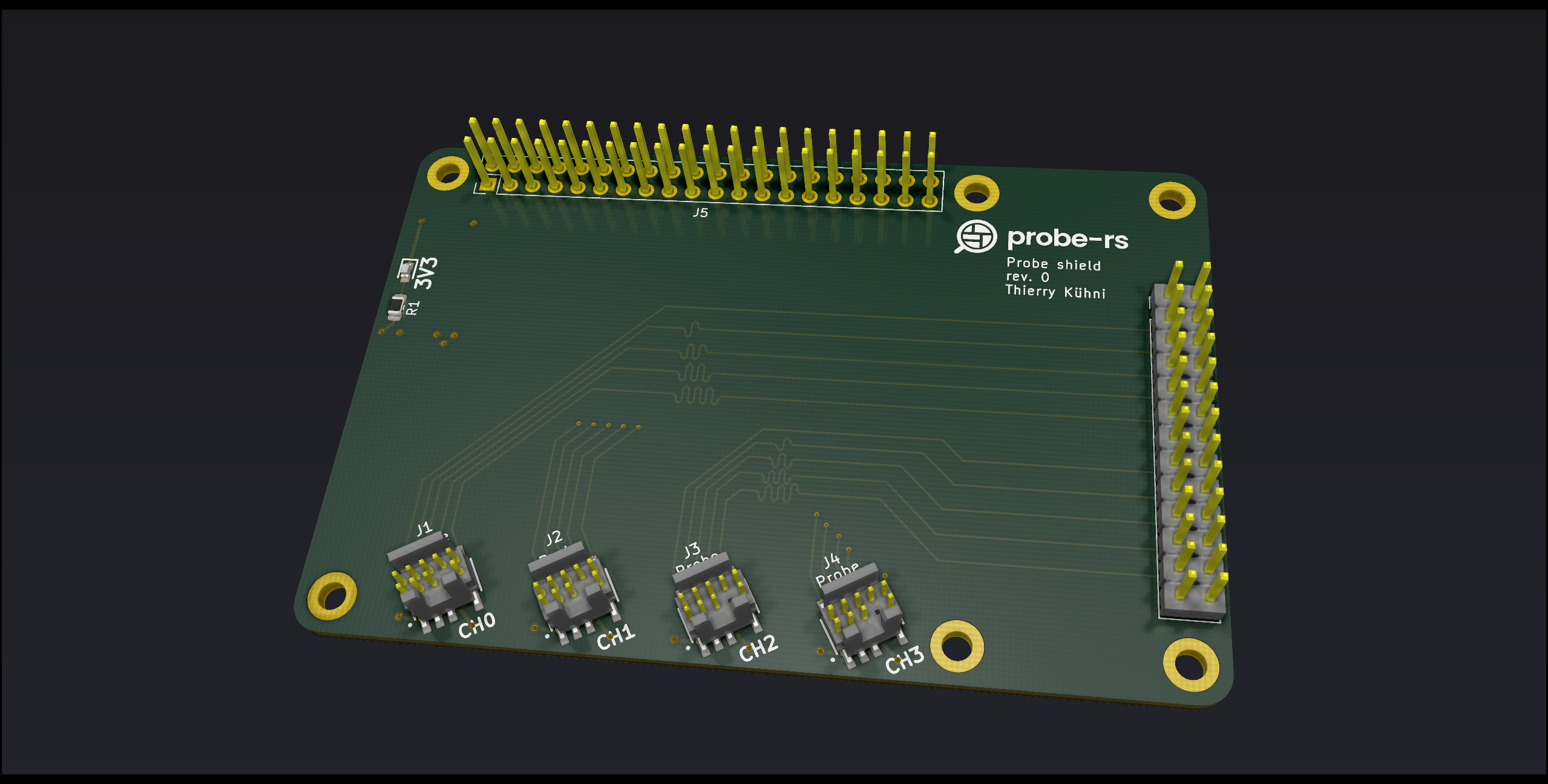

Target stack shield
About the Target stack shield
Target stack shield is an open source PCB design by probe-rs, published on GitHub. It is a 4-layer board measuring 85 × 66 mm, with 34 components from 14 distinct parts.
Other key parts include the NCP1117DT33T5G, SN74CB3T16211DGGR and PCA9535CPW,118. By type, the board carries 16 resistors, 7 capacitors, 6 ICs, 3 connectors and 2 LEDs.
It belongs with the dev boards & breakouts designs in this gallery.
From the project
A Raspberry PI shield for testing probe-rs against many chips & probes.
Main components on the Target stack shield
Target stack shield bill of materials (BOM)
34 components, 14 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | NCP1117DT33T5G | TO229P990X238-4N | IC1 |
| 4 | SN74CB3T16211DGGR | SOP50P810X120-56N | U1, U2, U3, U4 |
| 1 | PCA9535CPW,118 | SOP65P640X110-24N | U5 |
| 1 | GPIO shield connector 40pin | PinHeader_2x20_P2.54mm_Vertical_gpio_shield | J1 |
| 1 | probe shield connector 26pin | PinHeader_2x13_P2.54mm_Vertical_probe_shield | J2 |
| 1 | m2_keyA_67pin | TE_2199230-3 | J3 |
| 1 | 3.3V OK (green) | LEDC1608X80N | LED1 |
| 1 | KRTB_AILMS1-5B5C-B1B12-0-R18 | KRTBAILMS15B5CB1B120R18 | LED2 |
| 2 | 10u | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C1, C2 |
| 5 | 100n | C_0603_1608Metric_Pad1.05x0.95mm_HandSolder | C3, C4, C5, C6, C7 |
| 1 | 560 | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R1 |
| 12 | 100k | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R2, R3, R4, R8, R9, R10, R11, R12 +4 |
| 2 | 6.8k | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R5, R7 |
| 1 | 10k | R_0603_1608Metric_Pad1.05x0.95mm_HandSolder | R6 |
Target stack shield design files
The KiCad project lives in the probe-rs/hive repository on GitHub; these links point at the commit this page was built from.
Target stack shield: common questions
How big is the Target stack shield?
The Target stack shield measures 85 × 66 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Target stack shield?
34 components, from 14 distinct parts. The full bill of materials is listed on this page.
Where can I download the Target stack shield design files?
From the probe-rs/hive repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Target stack shield design in my own project?
The repository has no license, so all rights stay with probe-rs. Use it as a reference, and ask the author before reusing the design.
