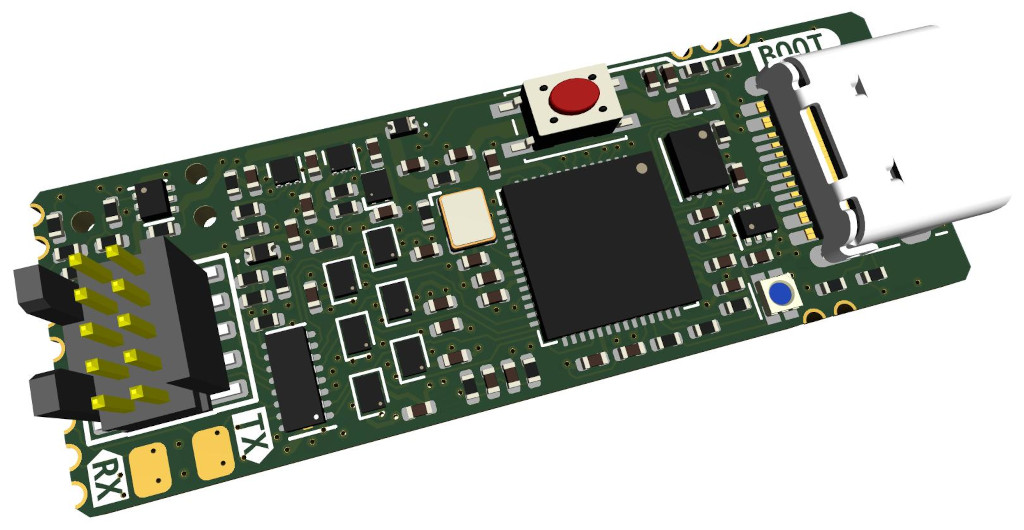

About the Rusty probe PCB
Rusty probe is an open source RP2040/RP2350 PCB design by probe-rs, published on GitHub. It is a 4-layer board measuring 40 × 14 mm, with 85 components from 26 distinct parts.
Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the 74LVC1T45GM,115, W25Q80DVUXIE, NUF8401MNT4G, FTSH-105-01-L-DV-K and NUF2042XV6T1G. By type, the board carries 30 capacitors, 29 resistors, 14 ICs, 4 connectors, 3 diodes and 1 transistor.
From the project
This is an open hardware probe for the Serial Wire Debug (SWD) and JTAG protocol. Based on the RP2040 MCU.
This is an open hardware probe for the Serial Wire Debug (SWD) and JTAG protocol. Based on the RP2040 MCU.
The firmware is available here and is open-source.
- The 10-pin Cortex-Debug connector is used. - The programming connector is the Tag Connect TC2030, however for just loading firmware the USB bootloader is recommended. - Castellated vias for all programming pins, power and 2 GPIOs. - USB-C connector. - Target 5V and Vtarget is protected with an diode circuit to not have current flow from the target to the host. - The probe support 1.8v - 3.3v signal voltage and can track Vtarget. -…

Main components on the Rusty probe
Rusty probe bill of materials (BOM)
85 components, 26 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 6 | 74LVC1T45GM,115 | SOT-886 | U1, U2, U8, U9, U10, U11 |
| 1 | W25Q80DVUXIE W25Q8 | USON-8-3x2mm-EP | U3 |
| 1 | NUF8401MNT4G | DFN-16-1EP_1.6x4mm_P0.5mm | U4 |
| 1 | FTSH-105-01-L-DV-K CortexDebug | PinHeader_2x05_FTSH-105-01-L-DV-K | U5 |
| 1 | RP2040 | RP2040-QFN-56 | U6 |
| 1 | NUF2042XV6T1G | SOT-563 | U7 |
| 3 | NCP133AMXADJTCG | DFN-6-1EP_1.2x1.2mm_P0.4mm_EP0.3x0.94mm_PullBack | U12, U13, U14 |
| 1 | NTZD3155C or CMLDM3757-TR-PBFREE or DMC2400UV-7 or DMG1016VQ-7 | SOT-563 | Q1 |
| 1 | ISM95-3251AH-12.000MHZ 12 MHz | Crystal_SMD_2520-4Pin_2.5x2.0mm | X1 |
| 1 | USB_C_RECEPTACLE_USB2.0 USB_C_Receptacle_USB2.0 | USB_C_Receptacle_USB4105 | J1 |
| 1 | Castellated Vias | 1x9_1.5mm_castellated | J2 |
| 1 | Castellated Vias | 1x2_1.5mm_castellated | J3 |
| 1 | Castellated Vias | 1x3_1.5mm_castellated | J4 |
| 1 | MF-FSMF050X-2 Fuse_Small | Fuse_0603_1608Metric | F1 |
| 1 | EVQ-P2002W | SW_SPST_EVQP2 | SW1 |
| 1 | LTST-C19HE1WT | LED_LiteOn_LTST-C19HE1WT | D1 |
| 2 | 20V | D_0402_1005Metric | D2, D3 |
| 1 | BLM15AX601SN1D | R_0402 | FB1 |
| 19 | 0.1U 0.1u | C_0402 | C1, C5, C7, C8, C9, C10, C11, C12 +11 |
| 11 | 2.2U 2.2u | C_0402 | C2, C3, C4, C6, C21, C24, C25, C26 +3 |
Show 6 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 4 | 17.4K 17.4k | R_0402 | R1, R13, R15, R28 |
| 5 | 1k | R_0402 | R2, R5, R6, R7, R17 |
| 5 | 5.1K 5.1k | R_0402 | R3, R4, R8, R20, R29 |
| 8 | 47K 47k | R_0402 | R9, R11, R12, R14, R16, R19, R21, R27 |
| 6 | 1MEG 1Meg | R_0402 | R10, R18, R22, R23, R24, R26 |
| 1 | 15K 15k | R_0402 | R25 |
Rusty probe design files
The KiCad project lives in the probe-rs/rusty-probe repository on GitHub; these links point at the commit this page was built from.
- Layoutrs-probe.kicad_pcb
- Schematicrs-probe.kicad_sch
- BOMproduction/nov-2023/bom.csv
Rusty probe: common questions
What microcontroller does the Rusty probe use?
The Rusty probe is built around the RP2040, from the RP2040/RP2350 family.
How big is the Rusty probe PCB?
The Rusty probe measures 40 × 14 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Rusty probe?
85 components, from 26 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Rusty probe design files?
From the probe-rs/rusty-probe repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Rusty probe design in my own project?
The repository has no license, so all rights stay with probe-rs. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Rusty probe without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
