Uncut Gem bkup PCB layout, top view — open source ESP32 board by QuantumVillage
Simulate this board

About the Uncut Gem bkup PCB

Uncut Gem bkup is an open source ESP32 PCB design by QuantumVillage, published on GitHub under the AGPL-3.0 license. It is a 2-layer board measuring 82.1 × 82.1 mm, with 78 components from 40 distinct parts.

Its main chip is the DOIT-ESP32-DEVKIT-V2-30pin, from the ESP32 family. Other key parts include the ADF4351, GALI-84, TL082 and LM1117MP-3.3. By type, the board carries 35 capacitors, 17 resistors, 6 ICs, 6 connectors, 4 diodes and 4 inductors.

From the project

A prototype Full Stack fully Open Source NV Center Diamond Magnetometer

This folder contains the entire KiCad project for the diamond sensor, with full electronics. The Git History contains previous versions, including the version first presented at BSides London in Dec 2024!

Here are two renders of the first version of the board:

Here is a bill of materials for the various parts and connections on the board:

NB - Here are some notes about this design:

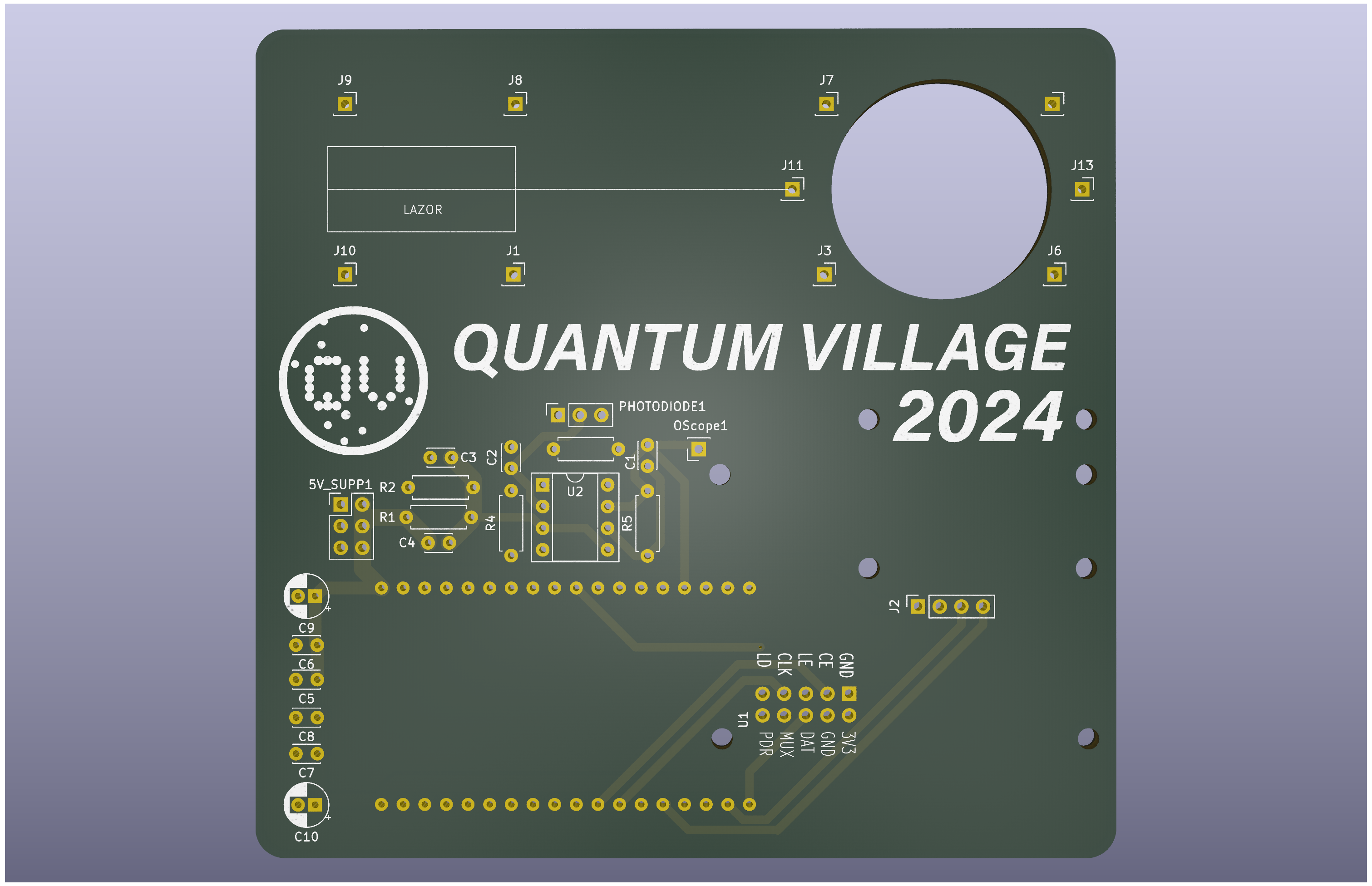

Uncut Gem bkup, from the project README
From the project README

Main components on the Uncut Gem bkup

ADF4351GALI-84DOIT-ESP32-DEVKIT-V2-30pinTL082LM1117MP-3.3

Uncut Gem bkup bill of materials (BOM)

78 components, 40 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ADF4351
U1
2
GALI-84
U2, U3
1
DOIT-ESP32-DEVKIT-V2-30pin
U4
1
TL082
U5
1
LM1117MP-3.3
U6
1
NPN
Q1
1
10MHZ
X1
1
RFIN_Coax_Sml
J1
1
RFOUT_A+
J2
1
RFOUT_A-
J3
1
RFOUT_DIAMOND
J4
1
OLED Screen Interface
J5
1
ADC_SIGNAL
J6
1
Conn_02x03_Odd_Even
5V_SUPP1
1
MUXOut
MUX_OUT1
1
OScope
OScope1
1
CONN_01X03_SOCKET
Conn_01x03_Socket
PHOTODIODE1
1
ESD9B5.0ST5G
LOCK
D1
2
D_Small
D2, D3
1
BPW34
D4
Show 20 more
QtyPartRefs
2
1.9NH
1.9nH
L1, L2
2
470NH
470nH
L3, L4
12
100PF
100pF
C1, C4, C6, C9, C10, C12, C14, C16 +4
10
100NF
100nF
C2, C3, C5, C8, C11, C13, C15, C17 +2
2
10NF
10nF
C7, C30
6
1NF
1nF
C18, C19, C27, C28, C29, C31
1
10PF
10pF
C21
2
100NF
100nF
C32, C33
1
33
C34
1
104
C35
2
100R
R1, R2
2
10KR
R3, R4
1
4.7KR
4.7kR
R5
4
50R
R6, R7, R9, R10
1
1KR
100R
R8
1
1KR
R11
1
360R
R12
3
1k
R13, R14, R16
1
1M
R15
1
47K
47k
R17

Uncut Gem bkup design files

The KiCad project lives in the QuantumVillage/UncutGem repository on GitHub; these links point at the commit this page was built from.

Uncut Gem bkup: common questions

What microcontroller does the Uncut Gem bkup use?

The Uncut Gem bkup is built around the DOIT-ESP32-DEVKIT-V2-30pin, from the ESP32 family.

How big is the Uncut Gem bkup PCB?

The Uncut Gem bkup measures 82.1 × 82.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Uncut Gem bkup?

78 components, from 40 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Uncut Gem bkup design files?

From the QuantumVillage/UncutGem repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Uncut Gem bkup design in my own project?

Yes, under the terms of its AGPL-3.0 license, which QuantumVillage chose for the repository.

Can I test firmware for the Uncut Gem bkup without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
