Clock Front

QuinnFreedman·modular·modules/Clock/PCBs/clock_front_pcb/clock_front_pcb.kicad_pcb

Clock Front PCB layout, top view — open source board by QuinnFreedman

About the Clock Front PCB

Clock Front is an open source PCB design by QuinnFreedman, published on GitHub. It is a 2-layer board measuring 38.1 × 95.9 mm, with 37 components from 8 distinct parts.

By type, the board carries 16 resistors, 11 connectors, 8 diodes and 2 switches.

It belongs with the audio designs in this gallery.

From the project

A collection of free & open source DIY synthesizer module designs for Eurorack

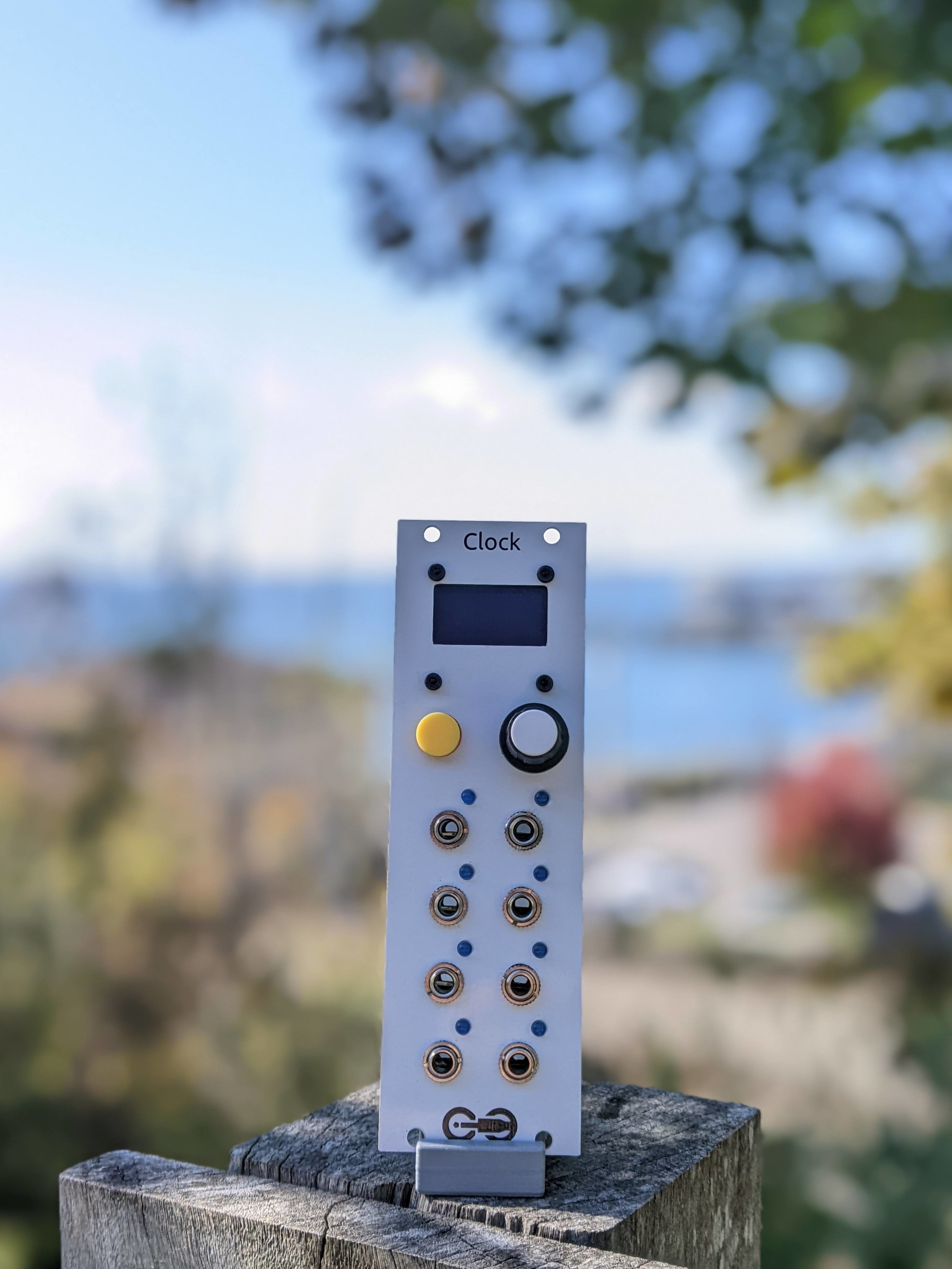

Clock Front, from the project README
From the project README

Clock Front bill of materials (BOM)

37 components, 8 distinct parts — part numbers from the project's BOM.

QtyPartRefs
8
THONKICONN
J1, J2, J3, J4, J5, J6, J7, J8
2
Conn_01x04_Socket
J9, J10
1
Conn_01x11_Socket
J11
1
EC11M
SW1
1
DR630 F1 LFS
SW2
8
LED
D1, D2, D3, D4, D5, D6, D7, D8
8
1kΩ
R1, R2, R3, R4, R5, R6, R7, R8
8
10kΩ
R9, R10, R11, R12, R13, R14, R15, R16

Clock Front design files

The KiCad project lives in the QuinnFreedman/modular repository on GitHub; these links point at the commit this page was built from.

Clock Front: common questions

How big is the Clock Front PCB?

The Clock Front measures 38.1 × 95.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Clock Front?

37 components, from 8 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Clock Front design files?

From the QuinnFreedman/modular repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Clock Front design in my own project?

The repository has no license, so all rights stay with QuinnFreedman. Use it as a reference, and ask the author before reusing the design.
