Drift PCB layout, top view — open source AVR/Arduino board by QuinnFreedman

About the Drift PCB

Drift is an open source AVR/Arduino PCB design by QuinnFreedman, published on GitHub. It is a 2-layer board measuring 18 × 100 mm, with 34 components from 21 distinct parts.

Its main chip is the Arduino Nano v3, from the AVR/Arduino family. Other key parts include the MCP4922, TL072 and MCP6002. By type, the board carries 8 connectors, 8 capacitors, 7 resistors, 3 ICs, 1 module and 1 switch.

It belongs with the audio designs in this gallery.

From the project

A collection of free & open source DIY synthesizer module designs for Eurorack

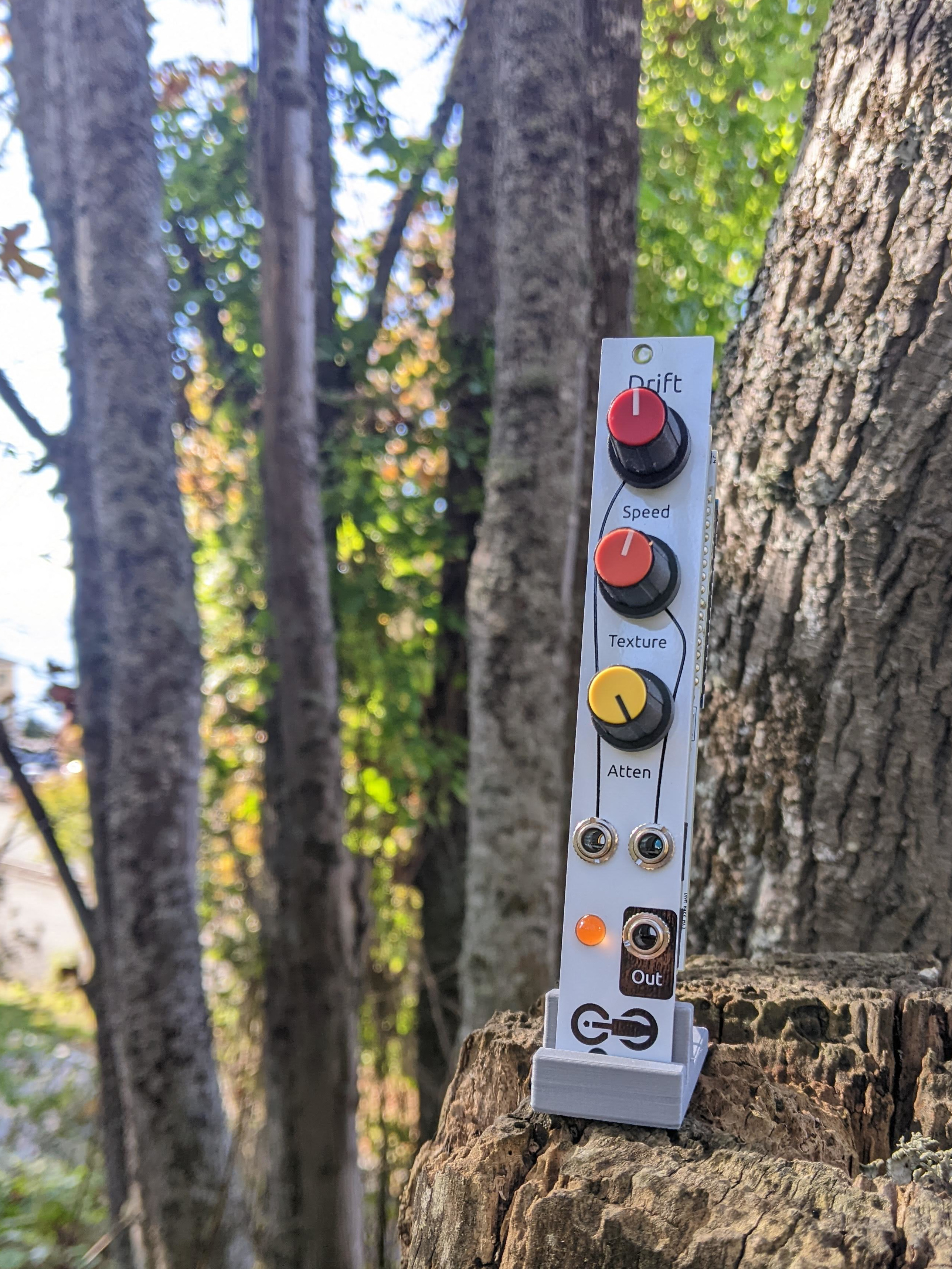

Drift, from the project README
From the project README

Main components on the Drift

MCP4922TL072MCP6002Arduino Nano v3

Drift bill of materials (BOM)

34 components, 21 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
MCP4922
U1
1
TL072
U2
1
MCP6002
U3
1
Arduino Nano v3
A1
3
THONKICONN
J1, J2, J3
1
Conn_01x06_Pin
J4
1
Conn_01x06_Socket
J5
1
Conn_01x04_Pin
J6
1
Conn_01x04_Socket
J7
1
Eurorack_2x8_Power
J9
2
Board
B1, B2
2
10kΩ
RV1, RV2
1
50kΩ
RV3
1
SW_DIP_x02
SW1
1
LED
D1
4
100nF
C1, C2, C3, C4
3
10uF
C5, C6, C7
1
4.7nF
C8
2
1kΩ
R1, R5
3
24kΩ
R2, R3, R4
Show 1 more
QtyPartRefs
2
100kΩ
R6, R7

Drift design files

The KiCad project lives in the QuinnFreedman/modular repository on GitHub; these links point at the commit this page was built from.

Drift: common questions

What microcontroller does the Drift use?

The Drift is built around the Arduino Nano v3, from the AVR/Arduino family.

How big is the Drift PCB?

The Drift measures 18 × 100 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Drift?

34 components, from 21 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Drift design files?

From the QuinnFreedman/modular repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Drift design in my own project?

The repository has no license, so all rights stay with QuinnFreedman. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Drift without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
