Quantizer

QuinnFreedman·modular·modules/Quantizer/PCBs/quantizer_pcb/quantizer_pcb.kicad_pcb

Quantizer PCB layout, top view — open source AVR/Arduino board by QuinnFreedman

About the Quantizer PCB

Quantizer is an open source AVR/Arduino PCB design by QuinnFreedman, published on GitHub. It is a 2-layer board measuring 50 × 100 mm, with 105 components from 26 distinct parts.

Its main chip is the Arduino_Nano_v3.x, from the AVR/Arduino family. Other key parts include the MCP4922, TL072, MCP6004, TLC5947DAP and LM4040LP-5. By type, the board carries 34 resistors, 17 connectors, 16 diodes, 15 switches, 11 capacitors and 5 ICs.

It belongs with the audio designs in this gallery.

From the project

A collection of free & open source DIY synthesizer module designs for Eurorack

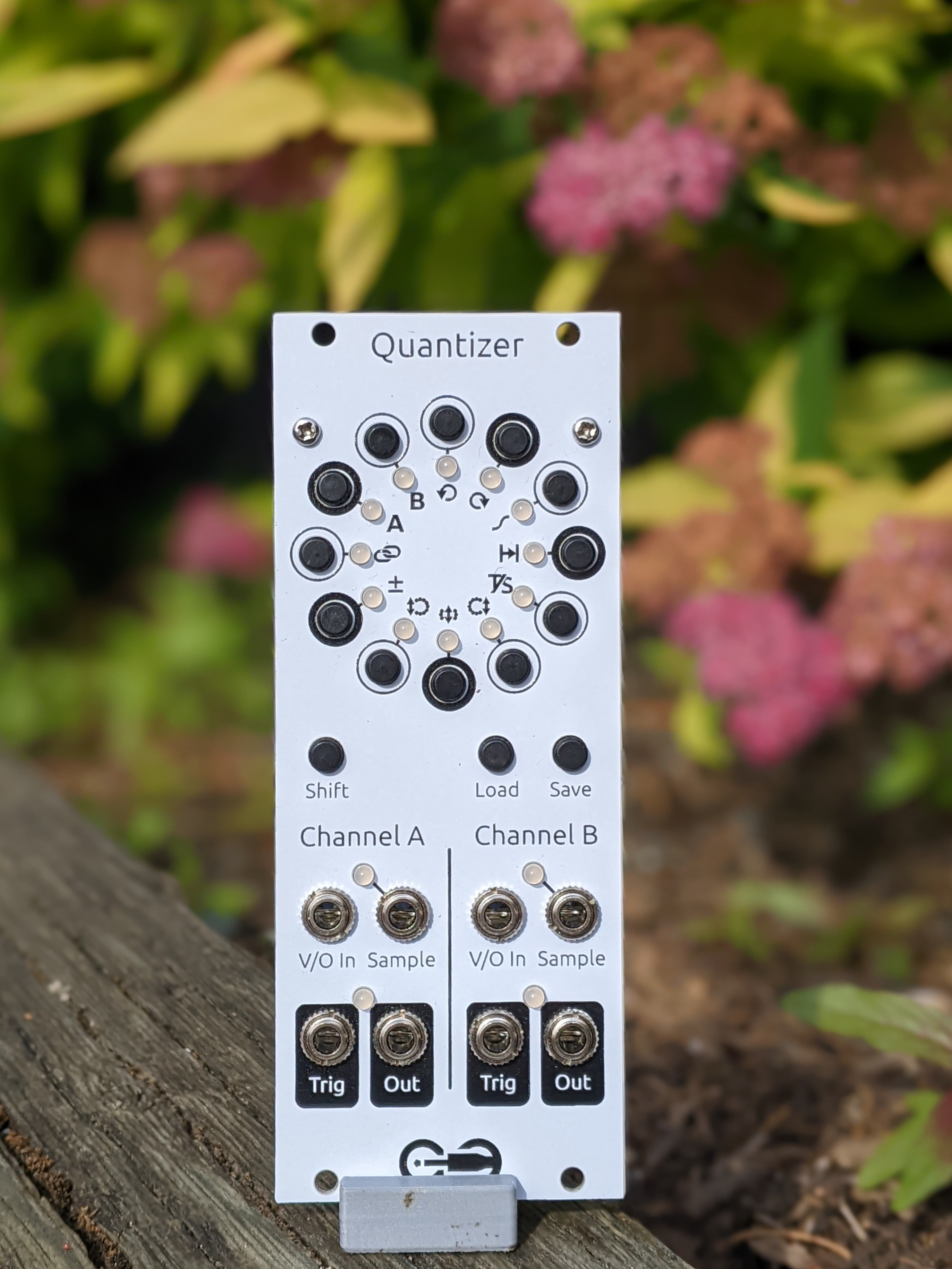

Quantizer, from the project README
From the project README

Main components on the Quantizer

MCP4922TL072MCP6004TLC5947DAPLM4040LP-5Arduino_Nano_v3.x

Quantizer bill of materials (BOM)

105 components, 26 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
MCP4922
U1
1
TL072
U2
1
MCP6004
U3
1
TLC5947DAP
U4
1
LM4040LP-5
U5
1
Arduino_Nano_v3.x
A1
8
THONKICONN
J1, J2, J3, J4, J5, J6, J7, J8
2
Conn_01x12_Socket
J9, J10
1
Conn_01x10_Socket
J11
1
Conn_01x09_Socket
J12
1
Conn_01x10_Pin
J13
1
Conn_01x09_Pin
J14
1
Eurorack_2x8_Power
J15
2
Conn_01x12_Pin
J16, J17
2
Board
B1, B2
2
1kΩ
RV1, RV2
15
TL1105SPF250Q
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +7
1
5VREF
TP1
1
5V
TP2
16
LED_Dual_KAK
D1, D2, D3, D4, D5, D6, D7, D8 +8
Show 6 more
QtyPartRefs
3
10uF
C1, C2, C3
6
100nF
C4, C5, C6, C7, C8, C11
2
100pF
C9, C10
9
10kΩ
R1, R14, R15, R20, R21, R22, R23, R30 +1
18
1kΩ
R2, R3, R4, R5, R6, R7, R8, R9 +10
7
100kΩ
R24, R25, R26, R27, R28, R29, R34

Quantizer design files

The KiCad project lives in the QuinnFreedman/modular repository on GitHub; these links point at the commit this page was built from.

Quantizer: common questions

What microcontroller does the Quantizer use?

The Quantizer is built around the Arduino_Nano_v3.x, from the AVR/Arduino family.

How big is the Quantizer PCB?

The Quantizer measures 50 × 100 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Quantizer?

105 components, from 26 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Quantizer design files?

From the QuinnFreedman/modular repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Quantizer design in my own project?

The repository has no license, so all rights stay with QuinnFreedman. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Quantizer without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
