ESP32 UniversalRemote PCB layout, top view — open source ESP32 board by qvinhdao
Simulate this board

About the ESP32 UniversalRemote PCB

ESP32 UniversalRemote is an open source ESP32 PCB design by qvinhdao, published on GitHub. It is a 2-layer board measuring 130 × 130 mm, with 53 components from 22 distinct parts.

Its main chip is the ESP32-WROOM-32U, from the ESP32 family. Other key parts include the LM1117T-3.3, HS0038B and CH340C. By type, the board carries 17 resistors, 11 capacitors, 9 diodes, 7 transistors, 4 ICs and 3 switches.

It belongs with the iot & wireless designs in this gallery.

From the project

Universal IR Hub

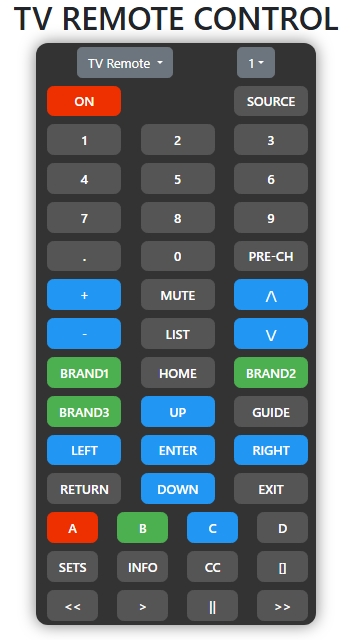

- Use a serial monitor with baud rate: 115200 to view logs - You can also send serial commands to the device

ESP32 UniversalRemote, from the project README
From the project README

Main components on the ESP32 UniversalRemote

ESP32-WROOM-32ULM1117T-3.3HS0038BCH340C

ESP32 UniversalRemote bill of materials (BOM)

53 components, 22 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-WROOM-32U
U1
1
LM1117T-3.3
U2
1
HS0038B
U3
1
CH340C
U4
6
S8050
Q1, Q3, Q4, Q5, Q6, Q7
1
BSS138
Q2
1
USB_B_Micro
J1
1
750MA/13.5V
750mA/13.5V
CB1
3
SW_Push
SW1, SW2, SW3
1
5.1V/1W
D1
1
LED
D2
1
IR333-A
D3
6
IR333-A
D4, D5, D6, D7, D8, D9
3
0.1UF
0.1uF
C1, C4, C8
1
CP/10UF
CP/10uF
C2
2
10UF
10uF
C3, C5
1
CP/100UF
CP/100uF
C6
1
CP/4.7UF
CP/4.7uF
C7
3
0.1UF/50V
0.1uF/50V
C9, C10, C11
7
10K
10k
R1, R3, R5, R8, R10, R11, R16
Show 2 more
QtyPartRefs
5
1k
R2, R4, R9, R13, R15
5
5.6R
R6, R7, R12, R14, R17

ESP32 UniversalRemote design files

The KiCad project lives in the qvinhdao/ESP32_UniversalRemote repository on GitHub; these links point at the commit this page was built from.

ESP32 UniversalRemote: common questions

What microcontroller does the ESP32 UniversalRemote use?

The ESP32 UniversalRemote is built around the ESP32-WROOM-32U, from the ESP32 family.

How big is the ESP32 UniversalRemote PCB?

The ESP32 UniversalRemote measures 130 × 130 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ESP32 UniversalRemote?

53 components, from 22 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the ESP32 UniversalRemote design files?

From the qvinhdao/ESP32_UniversalRemote repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the ESP32 UniversalRemote design in my own project?

The repository has no license, so all rights stay with qvinhdao. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the ESP32 UniversalRemote without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
