About the Boost Converter Module

Boost Converter Module is an open source PCB design by Rack-Robotics, published on GitHub. It is a 4-layer board measuring 70 × 34 mm, with 29 components from 17 distinct parts.

Other key parts include the TPL0401B-10DCKR, LM5156HPWPR and STN3N40K3. By type, the board carries 15 capacitors, 9 resistors, 3 ICs, 1 diode and 1 inductor.

It belongs with the power & battery and sensors designs in this gallery.

From the project

electrical-discharge power supply, open-source

A high-efficiency power supply unit designed for Electrical Discharge Machining (EDM) applications.

- circuit-boards/ - KiCAD PCB designs for all modules - schematics/ - Schematic PDFs for electronics - KiCAD-library/ - Custom component library and 3D models - LTSpice/ - Simulation files - powercoreV3-firmware/ - Arduino firmware for the RP2040 controller

- PSU HIGHLIGHTS - FEATURES - APPLICATIONS - GENERAL DESCRIPTION - SPECIFICATIONS - Recommended Operating Conditions - DEVICE INTERFACES - Power Input Connector - Power Output Connector - Digital Interface Connector - USB-Micro Serial…

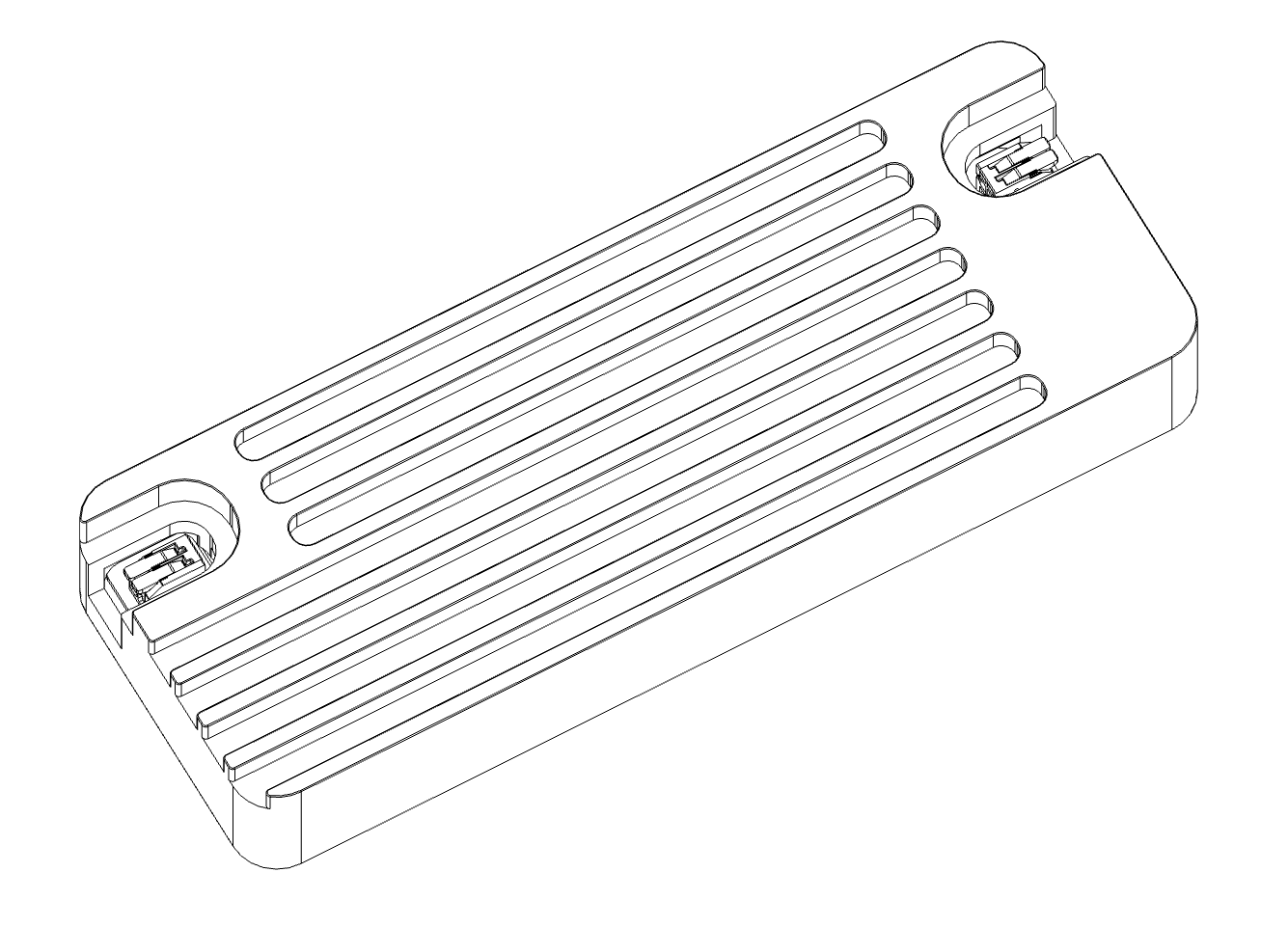

Boost Converter Module, from the project README
From the project README

Main components on the Boost Converter Module

TPL0401B-10DCKRLM5156HPWPRSTN3N40K3

Boost Converter Module bill of materials (BOM)

29 components, 17 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
TPL0401B-10DCKR
Texas Instruments
U1
1
LM5156HPWPR
Texas Instruments
U2
1
STN3N40K3
STMicroelectronics
U3
1
US1M-13-F
Diodes Incorporated
D1
1
680 uH
Bourns Inc.
L1
8
10 uF
Samsung Electro-Mechanics
C1, C2, C3, C4, C6, C7, C8, C9
2
1 uF
YAGEO
C5, C10
1
33 uF
TDK Corporation
C11
1
39NF
39nF
YAGEO
C12
1
22UF
Cornell Dubilier Knowles
C14
2
2.2 uF
TDK Corporation
C15, C16
3
200K
YAGEO
R1, R2, R3
2
2.2K
YAGEO
R4, R5
1
49.3K
YAGEO
R6
1
15K
YAGEO
R7
1
100K
Vishay Intertech
R8
1
90MR
90mR
YAGEO
R9

Boost Converter Module design files

The KiCad project lives in the Rack-Robotics/Powercore-V3 repository on GitHub; these links point at the commit this page was built from.

Boost Converter Module: common questions

How big is the Boost Converter Module?

The Boost Converter Module measures 70 × 34 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Boost Converter Module?

29 components, from 17 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Boost Converter Module design files?

From the Rack-Robotics/Powercore-V3 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Boost Converter Module design in my own project?

The repository has no license, so all rights stay with Rack-Robotics. Use it as a reference, and ask the author before reusing the design.
