Raiden s01

RaidenTechnology·raiden-s01·hardware/Raiden S0-1.kicad_pcb

Raiden s01 PCB layout, top view — open source ESP32 board by RaidenTechnology

About the Raiden s01 PCB

Raiden s01 is an open source ESP32 PCB design by RaidenTechnology, published on GitHub under the CERN-OHL-P-2.0 license. It is a 4-layer board measuring 36 × 60 mm, with 42 components from 24 distinct parts.

Its main chip is the ESP32-S3FN8, from the ESP32 family. Other key parts include the AZ1117CH-3.3TRG1. By type, the board carries 18 capacitors, 7 resistors, 6 connectors, 2 ICs, 2 crystals and 2 switches.

It belongs with the iot & wireless, rf & radio and dev boards & breakouts designs in this gallery.

From the project

Open-hardware ESP32-S3 development board — 4-layer, USB-C, U.FL antenna. KiCad 9, CERN-OHL-P.

Open-hardware ESP32-S3 development board — designed from scratch in KiCad 9.

The Raiden S0-1 is a compact 4-layer devkit built around the ESP32-S3FN8 (dual-core Xtensa LX7 @ 240 MHz, Wi-Fi + BLE 5, 8 MB embedded flash). Designed, routed and verified entirely by Raiden Technology.

- ERC: 0 errors — DRC: 0 errors, 0 unconnected items (KiCad 9.0.7, kicad-cli) - 5 permanent DRC notices are intentional local footprint overrides (U.FL RF keepout + M2 mounting holes)

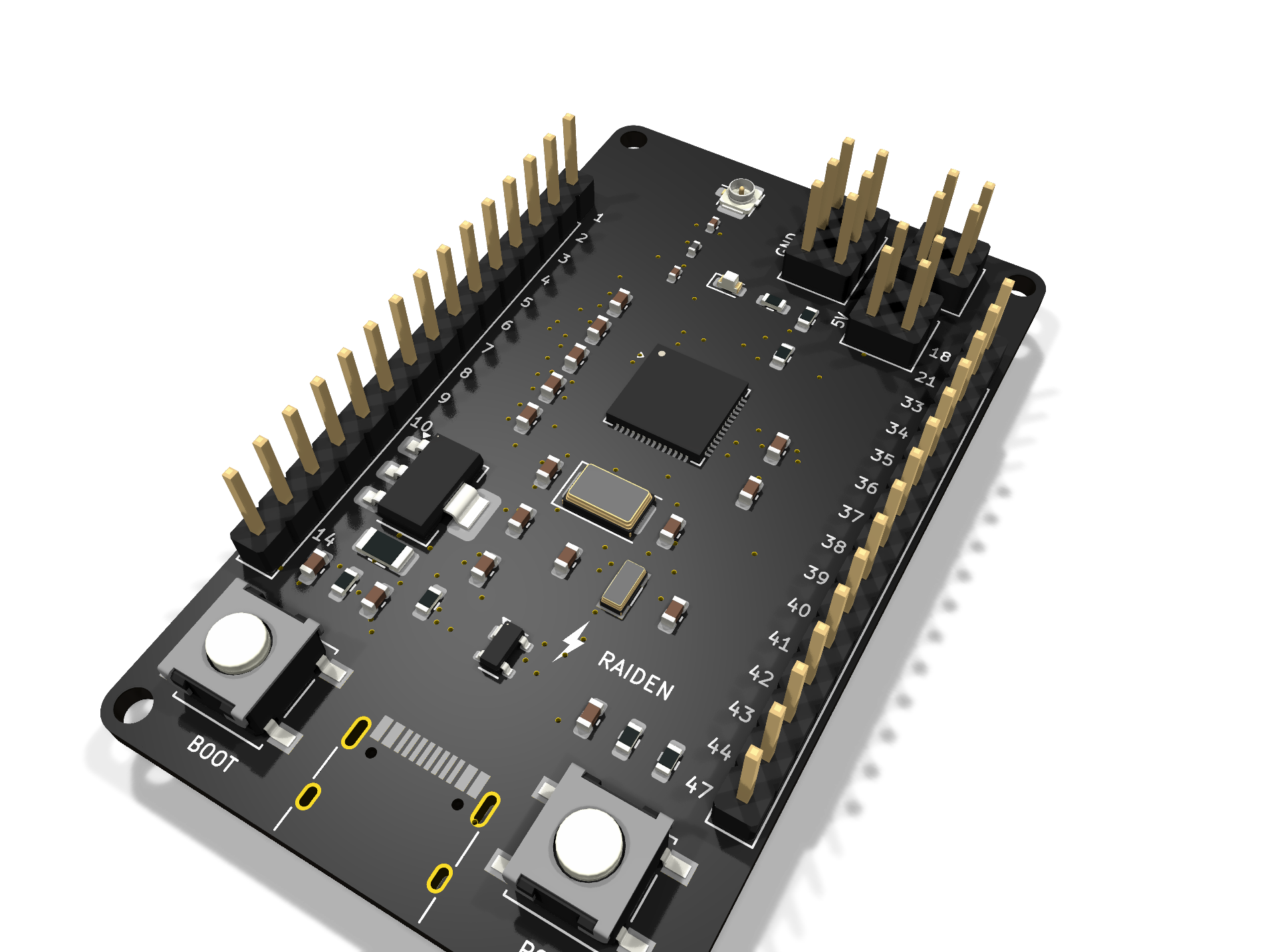

Raiden s01, from the project README
From the project README

Main components on the Raiden s01

ESP32-S3FN8AZ1117CH-3.3TRG1

Raiden s01 bill of materials (BOM)

42 components, 24 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-S3FN8
U1
1
AZ1117CH-3.3TRG1
AZ1117C-3.3
U2
1
Q13FC1350000400
32.768kHz
Y1
1
ECS-400-8-30B-CKM
40MHz
Y2
2
CONN_01X15
Conn_01x15
J1, J2
1
CONN_02X03_COUNTER_CLOCKWISE
Conn_02x03_Counter_Clockwise
J4
2
CONN_02X02_COUNTER_CLOCKWISE
Conn_02x02_Counter_Clockwise
J5, J6
1
TYPE-C-31-M-12
USB_C_Receptacle_USB2.0_14P
P1
1
U.FL-R-SMT-1(10)
Antenna
ANT1
1
1206L075YR
PTC 750mA
F1
2
B3S-1000
SW_Push
SW1, SW2
1
PRTR5V0U2X,215
PRTR5V0U2X
D1
1
KT-0603R
RED_LED
D2
1
LQG15HS2N0S02D
2.0nH
L1
7
CL10B104KB8NNNC
100nF
C1, C2, C3, C4, C5, C15, C16
2
CL10A106KP8NNNC
10uF
C6, C7
2
CL10A105KB8NNNC
1uF
C8, C13
2
CL10C100JB8NNNC
10pF
C9, C10
2
CL10C220JB8NNNC
22pF
C11, C12
1
CL10A475KP8NNNC
4.7uF
C14
Show 4 more
QtyPartRefs
2
CL05C010BB5NNNC
1pF
C17, C18
4
0603WAF1002T5E
10k OHM
R1, R2, R3, R7
2
0603WAF5101T5E
5.1k OHM
R4, R5
1
0603WAF4700T5E
470 OHM
R6

Raiden s01 design files

The KiCad project lives in the RaidenTechnology/raiden-s01 repository on GitHub; these links point at the commit this page was built from.

Raiden s01: common questions

What microcontroller does the Raiden s01 use?

The Raiden s01 is built around the ESP32-S3FN8, from the ESP32 family.

How big is the Raiden s01 PCB?

The Raiden s01 measures 36 × 60 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Raiden s01?

42 components, from 24 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Raiden s01 design files?

From the RaidenTechnology/raiden-s01 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Raiden s01 design in my own project?

Yes, under the terms of its CERN-OHL-P-2.0 license, which RaidenTechnology chose for the repository.

Can I test firmware for the Raiden s01 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
