About the Pre route PCB

Pre route is an open source PCB design by ramalamadingdong, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 53.3 × 68.6 mm, with 49 components from 43 distinct parts.

Other key parts include the TPS54331DDAR and INA226AIDGSR. By type, the board carries 19 resistors, 10 capacitors, 9 connectors, 5 transistors, 3 diodes and 2 ICs.

It belongs with the dev boards & breakouts, displays & leds and power & battery designs in this gallery.

From the project

Design a PCB end to end with an agent: CSV source of truth, idempotent build passes, containerized KiCad+Freerouting, and checks that run on the fab output.

Status: UNBUILT. No physical board of this design has been fabricated or powered on yet. Until one has, treat this as a reference for exercising the pipeline, not a verified design.

The design has passed its pre-order gates (2026-08-30): routed with 0 unconnected and 0 clearance violations across 5 identical DRC runs, validategerbers` 14/0, ERC clean, every BOM line in stock. The 17 residual DRC items are all form-factor or courtyard-graze artifacts, individually explained in the ledger in rev-1-plan.md. Passing gates is not the same as working hardware — the UNBUILT warning above stands…

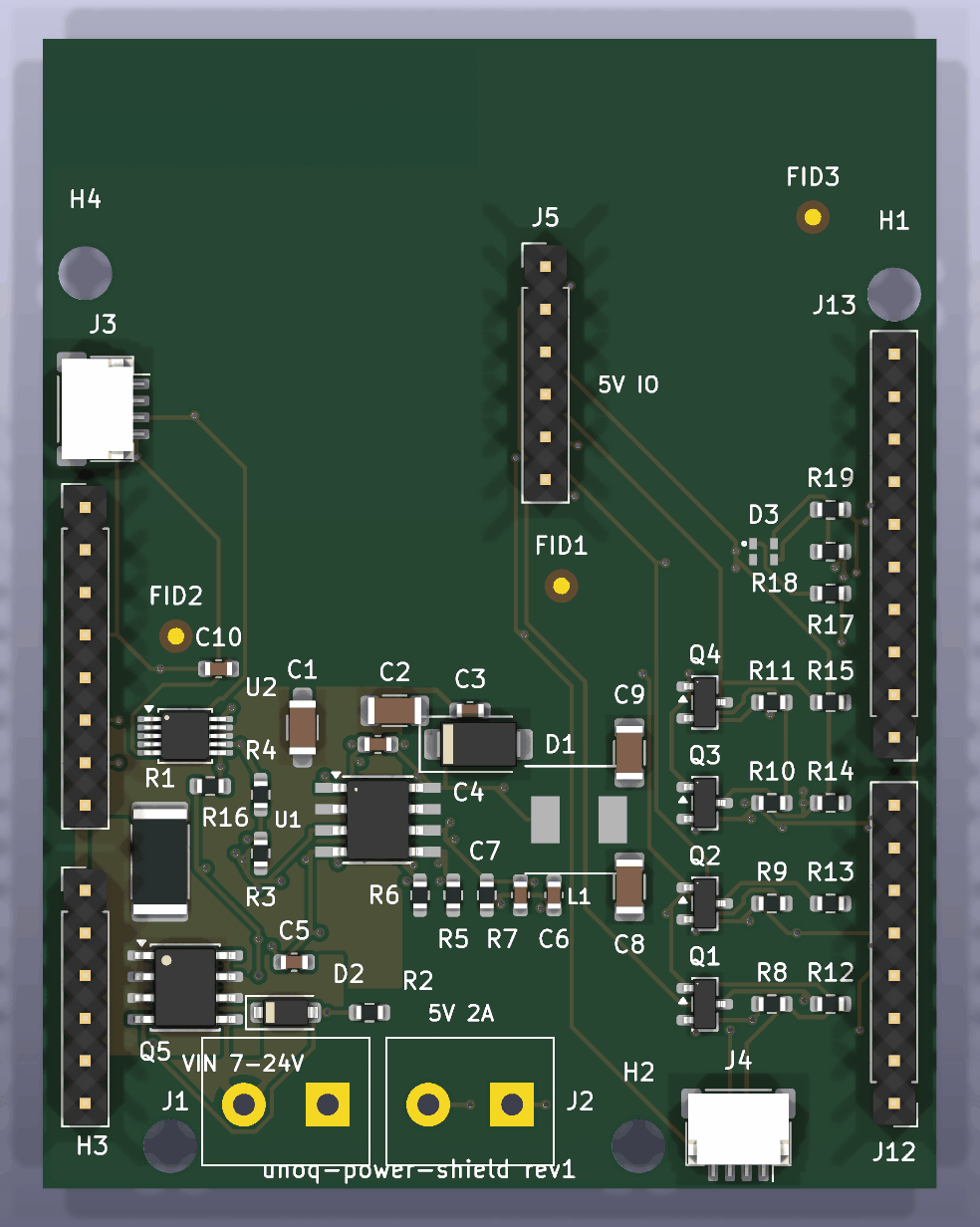

Pre route, from the project README
From the project README

Main components on the Pre route

Pre route bill of materials (BOM)

49 components, 43 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
TPS54331DDAR
U1
1
INA226AIDGSR
U2
4
BSS138LT1G
Q1, Q2, Q3, Q4
1
AO4407A
Q5
1
KF301-5.0-2P
VIN 7-24V
J1
1
KF301-5.0-2P
5V OUT
J2
2
SM04B-SRSS-TB
Qwiic
J3, J4
1
5V IO
J5
1
UNO PWR
J10
1
UNO ANALOG
J11
1
UNO D0-D7
J12
1
UNO D8-SCL
J13
1
SS34
D1
1
BZT52C12
D2
1
XL-1615RGBC-RF
D3
1
SWPA6045S100MT
10uH
L1
2
C51205
4.7uF 50V
C1, C2
1
C14663
C3
C3
1
C14663
C4
C4
1
C57112
C5
C5
Show 23 more
QtyPartRefs
1
C1588
C6
C6
1
C14858
C7
C7
2
C12891
22uF 25V
C8, C9
1
C14663
C10
C10
1
C5375464
10mR 3W
R1
1
C25804
R2
R2
1
C25808
R3
R3
1
C4216
R4
R4
1
C22967
R5
R5
1
C23186
R6
R6
1
C23352
R7
R7
1
C25804
R8
R8
1
C25804
R9
R9
1
C25804
R10
R10
1
C25804
R11
R11
1
C25804
R12
R12
1
C25804
R13
R13
1
C25804
R14
R14
1
C25804
R15
R15
1
C25804
R16
R16
1
C23138
R17
R17
1
C23138
R18
R18
1
C23138
R19
R19

Pre route design files

The KiCad project lives in the ramalamadingdong/pcb-agent repository on GitHub; these links point at the commit this page was built from.

Pre route: common questions

How big is the Pre route PCB?

The Pre route measures 53.3 × 68.6 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Pre route?

49 components, from 43 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Pre route design files?

From the ramalamadingdong/pcb-agent repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Pre route design in my own project?

Yes, under the terms of its GPL-3.0 license, which ramalamadingdong chose for the repository.
