SolarWeatherStation PCB layout, top view — open source board by rbat05

About the SolarWeatherStation PCB

SolarWeatherStation is an open source PCB design by rbat05, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 128 × 41.5 mm, with 16 components from 16 distinct parts.

Other key parts include the WeMos_S2_mini. By type, the board carries 9 connectors, 3 resistors, 2 capacitors, 1 IC and 1 diode.

It belongs with the power & battery, iot & wireless and sensors designs in this gallery.

From the project

Self-sustaining weather monitoring system with dual-node architecture.

1. Overview 2. Features 3. Performance 4. Design Showcase 5. Bill of Materials 6. System Architecture 7. Firmware & Code 8. 3D-Printed Parts 9. License

Operating entirely off-grid, the remote sensor node utilizes solar power and aggressive deep-sleep optimizations to monitor environmental conditions indefinitely. To bypass the extreme battery drain of standard WiFi, it broadcasts lightweight packets via ESP-NOW to a continuously powered indoor Relay node. This Relay acts as a bridge, forwarding the data into a local Python Flask server where it is logged, archived, and displayed on a…

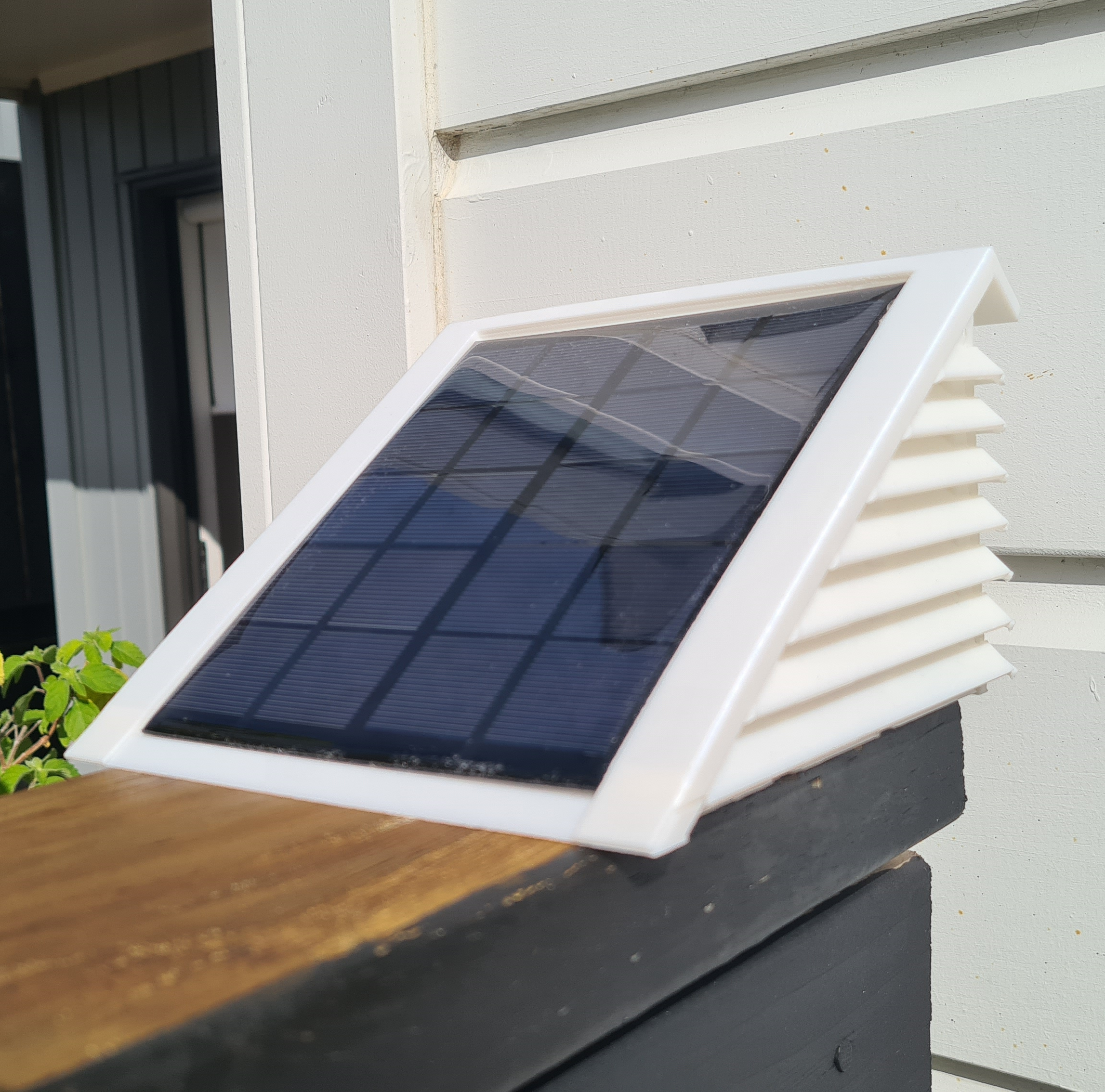

SolarWeatherStation, from the project README — From the project README

Main components on the SolarWeatherStation

SolarWeatherStation bill of materials (BOM)

16 components, 16 distinct parts.

Qty	Part	Footprint	Refs
1	WeMos_S2_mini	wemoss2	U1
1	BME280	PinSocket_1x04_P2.54mm_Vertical	J1
1	SD	PinSocket_1x06_P2.54mm_Vertical	J2
1	TINYRTC	PinSocket_1x05_P2.54mm_Vertical	J3
1	FQP27P06	TO-220-3_Vertical	J4
1	HT7333	TO-92	J5
1	SOLAR	TerminalBlock_MaiXu_MX126-5.0-02P_1x02_P5.00mm	J6
1	LIPO	TerminalBlock_MaiXu_MX126-5.0-02P_1x02_P5.00mm	J7
1	TP4056	PinHeader_1x06_P2.54mm_Vertical	J8
1	Switch	PinHeader_1x02_P2.54mm_Vertical	J9
1	1N5819	D_A-405_P7.62mm_Horizontal	D1
1	0.1uF	C_Disc_D3.0mm_W1.6mm_P2.50mm	C1
1	10u	C_Disc_D3.0mm_W1.6mm_P2.50mm	C2
1	10k	R_Axial_DIN0204_L3.6mm_D1.6mm_P5.08mm_Vertical	R1
1	68K	R_Axial_DIN0204_L3.6mm_D1.6mm_P5.08mm_Vertical	R2
1	100K	R_Axial_DIN0204_L3.6mm_D1.6mm_P5.08mm_Vertical	R3

SolarWeatherStation design files

The KiCad project lives in the rbat05/SolarWeatherStation repository on GitHub; these links point at the commit this page was built from.

SolarWeatherStation: common questions

How big is the SolarWeatherStation PCB?

The SolarWeatherStation measures 128 × 41.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the SolarWeatherStation?

16 components, from 16 distinct parts. The full bill of materials is listed on this page.

Where can I download the SolarWeatherStation design files?

From the rbat05/SolarWeatherStation repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the SolarWeatherStation design in my own project?

Yes, under the terms of its GPL-3.0 license, which rbat05 chose for the repository.
