Rick-Flash PCB layout, top view — open source ESP8266 board by rectifiedtech

About the Rick-Flash PCB

Rick-Flash is an open source ESP8266 PCB design by rectifiedtech, published on GitHub under the MIT license. It is a 2-layer board measuring 80 × 24 mm, with 19 components from 8 distinct parts.

Its main chip is the ESP-12E, from the ESP8266 family. Other key parts include the 4017. By type, the board carries 10 ICs, 4 resistors, 2 connectors, 1 buzzer, 1 switch and 1 capacitor.

It belongs with the iot & wireless designs in this gallery.

From the project

A 960TB SSD that Rick Rolls you via a piezo buzzer and a WiFi access point.

Here's a link to the limited production run of the Rick Flash project - https://www.ebay.com/itm/264855847576 - We might not make anymore of these unless there's more demand.

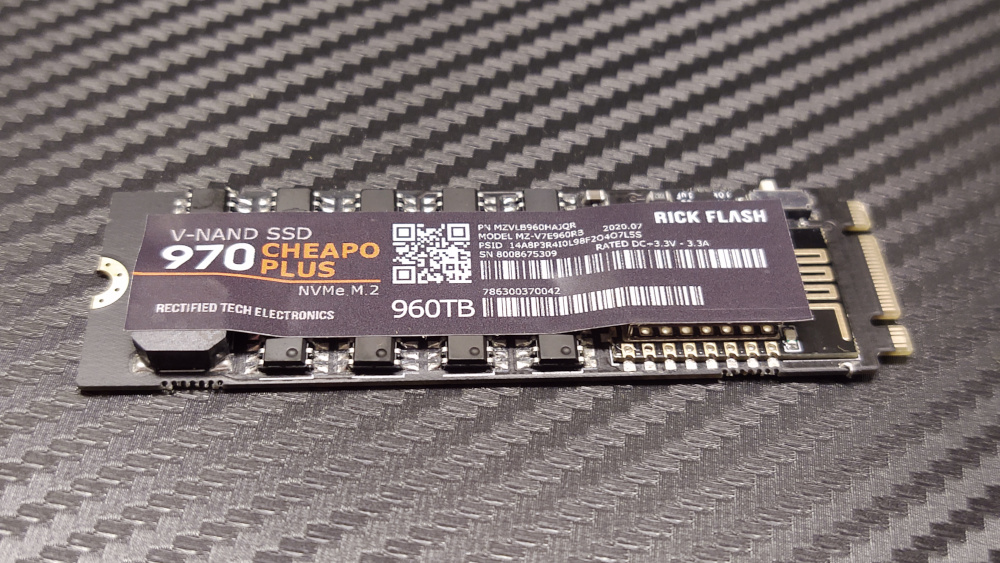

Rick-Flash, from the project README
From the project README

Main components on the Rick-Flash

4017ESP-12E

Rick-Flash bill of materials (BOM)

19 components, 8 distinct parts.

QtyPartRefs
9
4017
U1, U2, U3, U4, U5, U6, U7, U8 +1
1
ESP-12E
U10
1
M.2 Edge Connector
J1
1
ICSP_NODEMCU
J2
1
Buzzer
BZ1
1
POWER SW
SW1
1
1uF
C1
4
10k
R1, R2, R3, R4

Rick-Flash design files

The KiCad project lives in the rectifiedtech/Rick-Flash repository on GitHub; these links point at the commit this page was built from.

Rick-Flash: common questions

What microcontroller does the Rick-Flash use?

The Rick-Flash is built around the ESP-12E, from the ESP8266 family.

How big is the Rick-Flash PCB?

The Rick-Flash measures 80 × 24 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Rick-Flash?

19 components, from 8 distinct parts. The full bill of materials is listed on this page.

Where can I download the Rick-Flash design files?

From the rectifiedtech/Rick-Flash repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Rick-Flash design in my own project?

Yes, under the terms of its MIT license, which rectifiedtech chose for the repository.

Can I test firmware for the Rick-Flash without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP8266 firmware against it before you order a PCB.
