RP2040-DebugProbe PCB layout, top view — open source RP2040/RP2350 board by red-scorp
Simulate this board

About the RP2040-DebugProbe PCB

RP2040-DebugProbe is an open source RP2040/RP2350 PCB design by red-scorp, published on GitHub. It is a 4-layer board measuring 50.8 × 25.4 mm, with 66 components from 28 distinct parts.

Its main chip is the C2040, from the RP2040/RP2350 family. Other key parts include the W25Q128JVS, C2652100, C2456297 and C6187. By type, the board carries 23 resistors, 21 capacitors, 7 diodes, 6 ICs, 6 connectors and 1 crystal.

It belongs with the usb & debug tools designs in this gallery.

From the project

RP2040-based debug probe board

The RP2040-DebugProbe project aims to re-imagine Raspberry Pi Debug Probe.

The RP2040-DebugProbe board is a 4-layer design intended to accommodate the popular Raspberry Pi RP2040 MCU with all required component to function identically to Raspberry Pi Debug Probe.

This board features target JTAG connector and PC host USB Type-C connector. It also has a SWD connector and UART connector for the main MCU debugging. The board is pin-compatible with Raspberry Pi Debug Probe and can be used with the same picoprobe SW.

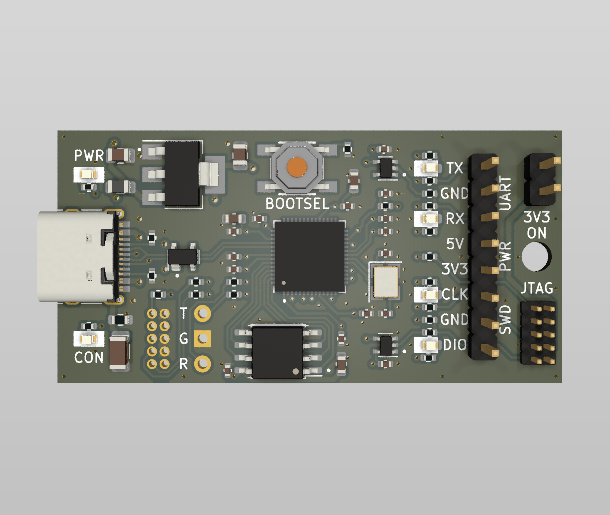

RP2040-DebugProbe, from the project README
From the project README

Main components on the RP2040-DebugProbe

W25Q128JVSC2040C2652100C2456297C6187

RP2040-DebugProbe bill of materials (BOM)

66 components, 28 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
W25Q128JVS
U1
1
C2040
RP2040
U2
2
C2652100
74AUP1T17
U3, U6
1
C2456297
W25Q128JVEIQ
U4
1
C6187
AMS1117-3.3
U5
1
C9002
12MHz
Y1
1
C2935953
CONN_MCU_JTAG
J1
1
C429954
CONN_MCU_UART
J2
1
C6332201
CONN_DBG_COMB
J3
1
C2685154
CONN_3V3_JUMPER
J4
1
C2935953
CONN_DBG_JTAG
J7
1
C2689844
CONN_USB
J10
1
C318884
BOOTSEL
SW1
2
C72043
GREEN
D1, D6
2
C2286
RED
D2, D5
1
C5158049
PRTR5V0U2X
D3
2
C72038
YELLOW
D4, D7
1
C1015
100@100MHz
FB2
3
C1604
2.2uF
C1, C5, C16
13
C1525
100nF
C2, C3, C4, C6, C7, C8, C9, C10 +5
Show 8 more
QtyPartRefs
2
C15850
10uF
C14, C15
2
C1547
12pF
C19, C20
1
C106074
4.7nF 1kV
C21
7
C11702
1k
R1, R2, R3, R4, R5, R6, R7
1
C25744
10k
R8
12
C25076
100R
R9, R13, R14, R15, R16, R17, R18, R19 +4
2
C25905
5k1
R10, R11
1
C136593
1M
R12

RP2040-DebugProbe design files

The KiCad project lives in the red-scorp/RP2040-DebugProbe repository on GitHub; these links point at the commit this page was built from.

RP2040-DebugProbe: common questions

What microcontroller does the RP2040-DebugProbe use?

The RP2040-DebugProbe is built around the C2040, from the RP2040/RP2350 family.

How big is the RP2040-DebugProbe PCB?

The RP2040-DebugProbe measures 50.8 × 25.4 mm, has 4 copper layers and is 1.6062 mm thick.

How many components are on the RP2040-DebugProbe?

66 components, from 28 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the RP2040-DebugProbe design files?

From the red-scorp/RP2040-DebugProbe repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the RP2040-DebugProbe design in my own project?

The repository has no license, so all rights stay with red-scorp. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the RP2040-DebugProbe without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
