RP2350-ProMini

red-scorp·RP2350-ProMini

RP2350-ProMini PCB layout, top view — open source RP2040/RP2350 board by red-scorp
Simulate this board

About the RP2350-ProMini PCB

RP2350-ProMini is an open source RP2040/RP2350 PCB design by red-scorp, published on GitHub. It is a 4-layer board measuring 17.8 × 41.9 mm, with 46 components from 28 distinct parts.

Its main chip is the RP2350A-QFN60, from the RP2040/RP2350 family. Other key parts include the W25Q128JVS, TPS63060 and W25Q128JVEIQ. By type, the board carries 16 capacitors, 9 resistors, 7 connectors, 4 ICs, 2 jumpers and 2 switches.

It belongs with the power & battery designs in this gallery.

From the project

RP2350-based board with footprint of Arduino ProMini

The RP2350-ProMini project aims to create a replacement for the Arduino Pro Mini using the RP2350 MCU.

The RP2350-ProMini board is a 4-layer board designed to accommodate the popular Raspberry Pi RP2350 MCU in the commonly used, but obsolete, Arduino Pro Mini footprint.

This project is a shoot-off from my earlier RP2040-ProMini project, which was designed to accommodate the Raspberry Pi RP2040 MCU in the same footprint.

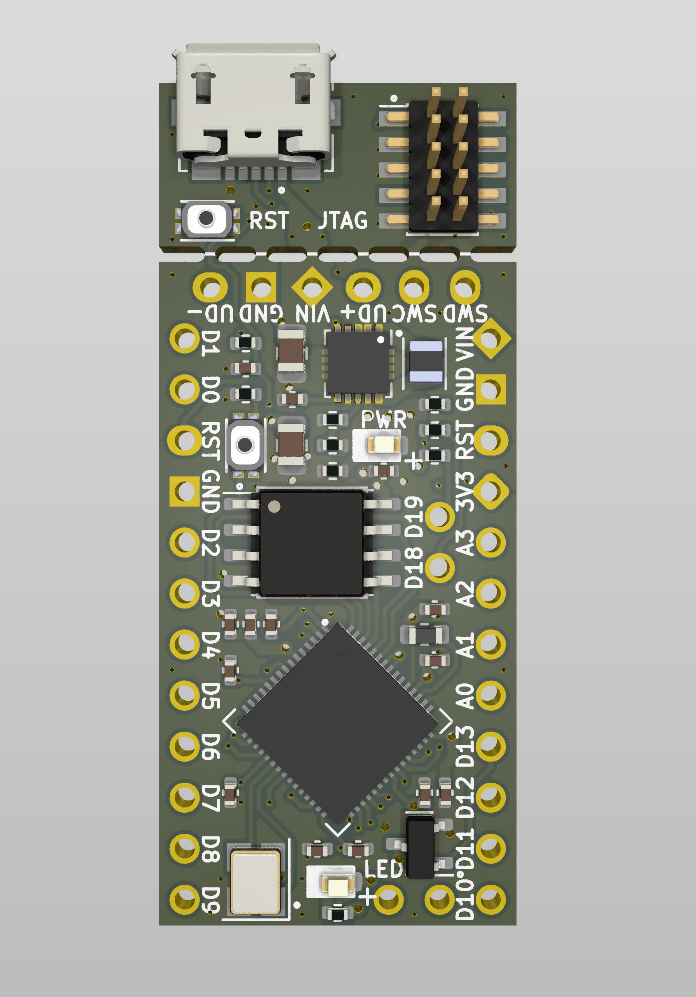

RP2350-ProMini, from the project README
From the project README

Main components on the RP2350-ProMini

W25Q128JVSRP2350A-QFN60TPS63060W25Q128JVEIQ

RP2350-ProMini bill of materials (BOM)

46 components, 28 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
W25Q128JVS
U1
1
RP2350A-QFN60
U2
1
TPS63060
U3
1
W25Q128JVEIQ
U4
1
AO3400A
Q1
1
12MHz
Y1
1
CONN_L
J1
1
CONN_U
J2
1
CONN_R2
J3
1
CONN_R
J4
1
CONN_R3
J5
1
USB_B_Micro
J6
1
CONN_JTAG
J7
1
CUT_LED
JP1
1
CUT_VIN
JP2
1
BOOTSEL
S1
1
RESET
S2
2
RED
D1, D2
1
1.5uH
L1
1
3.3uH
L2
Show 8 more
QtyPartRefs
3
2.2uF
C1, C5, C16
11
100nF
C2, C3, C4, C6, C7, C8, C9, C10 +3
2
10uF
C12, C14
2
5k1
R1, R6
3
10k
R3, R4, R5
1
1k
R7
2
1M
R8, R9
1
174k
R10

RP2350-ProMini design files

The KiCad project lives in the red-scorp/RP2350-ProMini repository on GitHub; these links point at the commit this page was built from.

RP2350-ProMini: common questions

What microcontroller does the RP2350-ProMini use?

The RP2350-ProMini is built around the RP2350A-QFN60, from the RP2040/RP2350 family.

How big is the RP2350-ProMini PCB?

The RP2350-ProMini measures 17.8 × 41.9 mm, has 4 copper layers and is 1.61 mm thick.

How many components are on the RP2350-ProMini?

46 components, from 28 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the RP2350-ProMini design files?

From the red-scorp/RP2350-ProMini repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the RP2350-ProMini design in my own project?

The repository has no license, so all rights stay with red-scorp. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the RP2350-ProMini without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
