Dark Passenger Base MCU
About the Dark Passenger Base MCU PCB
Dark Passenger Base MCU is an open source PCB design by rganlath3, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 87.5 × 64.9 mm, with 22 components from 19 distinct parts.
By type, the board carries 17 connectors, 2 diodes, 2 resistors and 1 capacitor.
It belongs with the robotics & motion, rf & radio and sensors designs in this gallery.
From the project

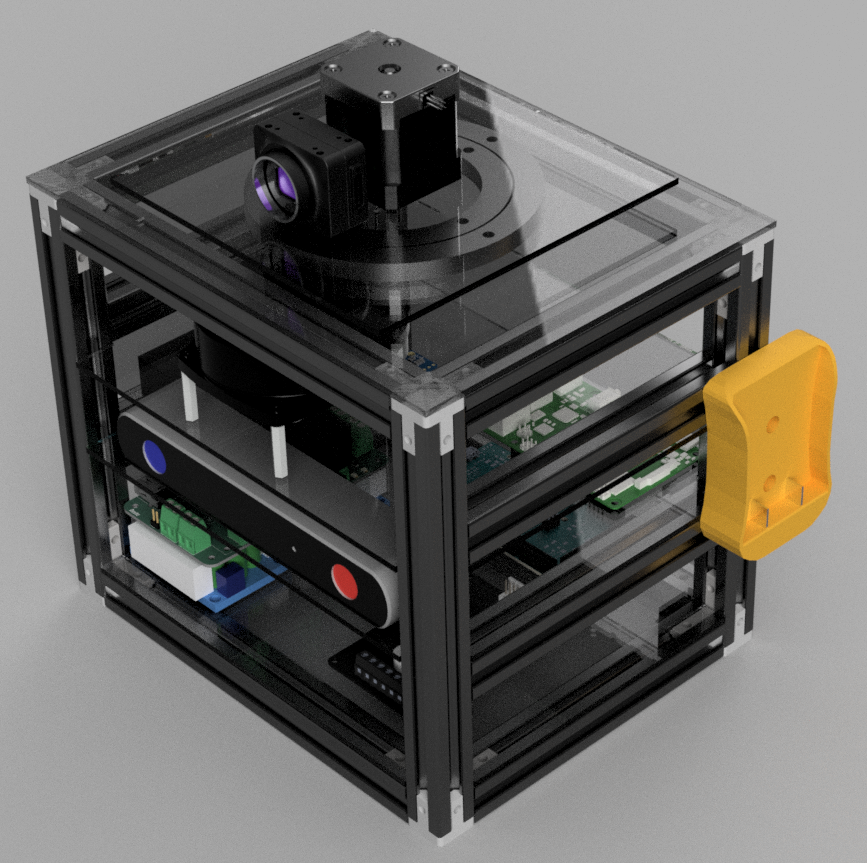

A roomba chassis modded into a ROS learning platform with modular capability tower design.
A modular payload for use as a ROS learning platform. Each floor of the chassis delivers different capabilities. The initial design is mounted on a differential drive roomba with plans to expand to treaded or quad-coptor platforms.
This PCB is used to stack 2x DC-DC converters below and a voltage cutoff board on the top. This PCB distributes power from battery inputs to get converted to 12V and 5V. It interfaces with the following components:
Dark Passenger Base MCU bill of materials (BOM)
22 components, 19 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | Conn_01x22 | PinSocket_1x22_P2.54mm_Vertical | J1, J2 |
| 1 | Battery IN | TerminalBlock_Phoenix_MPT-0,5-2-2.54_1x02_P2.54mm_Horizontal | J3 |
| 1 | NeoPixel | TerminalBlock_Phoenix_MPT-0,5-3-2.54_1x03_P2.54mm_Horizontal | J4 |
| 1 | 5V IN | TerminalBlock_Phoenix_MKDS-1,5-2_1x02_P5.00mm_Horizontal | J5 |
| 1 | FWD_LED_RELAY | TerminalBlock_Phoenix_MPT-0,5-5-2.54_1x05_P2.54mm_Horizontal | J6 |
| 1 | AFT_LED_RELAY | TerminalBlock_Phoenix_MPT-0,5-5-2.54_1x05_P2.54mm_Horizontal | J7 |
| 1 | GPS | BlankPin_1x04_P2.54mm | J8 |
| 1 | UART | BlankPin_1x02_P2.54mm | J9 |
| 1 | SPARE I2C | BlankPin_1x04_P2.54mm | J10 |
| 1 | IMU | BlankPin_1x04_P2.54mm | J11 |
| 1 | Toggle Switches | BlankPin_1x03_P2.54mm | J12 |
| 1 | Spare | BlankPin_1x05_P2.54mm | J13 |
| 1 | Motor Encoder 1 | TerminalBlock_Phoenix_MPT-0,5-8-2.54_1x08_P2.54mm_Horizontal | J14 |
| 1 | Motor Encoder 2 | TerminalBlock_Phoenix_MPT-0,5-8-2.54_1x08_P2.54mm_Horizontal | J15 |
| 1 | RESET | BlankPin_1x02_P2.54mm | J16 |
| 1 | Motor Control | TerminalBlock_Phoenix_MPT-0,5-9-2.54_1x09_P2.54mm_Horizontal | J18 |
| 2 | LED | LED_1206_3216Metric_Pad1.42x1.75mm_HandSolder | D1, D2 |
| 1 | C_Polarized | CP_Radial_D10.0mm_P5.00mm | C1 |
| 2 | 1k | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R1, R2 |
Dark Passenger Base MCU design files
The KiCad project lives in the rganlath3/DarkPassenger repository on GitHub; these links point at the commit this page was built from.
Dark Passenger Base MCU: common questions
How big is the Dark Passenger Base MCU PCB?
The Dark Passenger Base MCU measures 87.5 × 64.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Dark Passenger Base MCU?
22 components, from 19 distinct parts. The full bill of materials is listed on this page.
Where can I download the Dark Passenger Base MCU design files?
From the rganlath3/DarkPassenger repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Dark Passenger Base MCU design in my own project?
Yes, under the terms of its CERN-OHL-S-2.0 license, which rganlath3 chose for the repository.
