10087
RGBKB·Keyboard-files·Mun2/PCB/10087 Kicad/10087.kicad_pcb
About the 10087 PCB
10087 is an open source RP2040/RP2350 PCB design by RGBKB, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 142.7 × 95.7 mm, with 387 components from 27 distinct parts.
Its main chip is the RP2040TR13, from the RP2040/RP2350 family. Other key parts include the MCP1700-3302E_SOT23 and W25Q32JVZP. By type, the board carries 72 relays, 70 LEDs, 50 diodes, 40 resistors, 30 capacitors and 23 connectors.
It belongs with the keyboards designs in this gallery.
From the project
Public files for keyboards and more
All files are provided on an as is basis. No guarantees or warranties are given or implied.

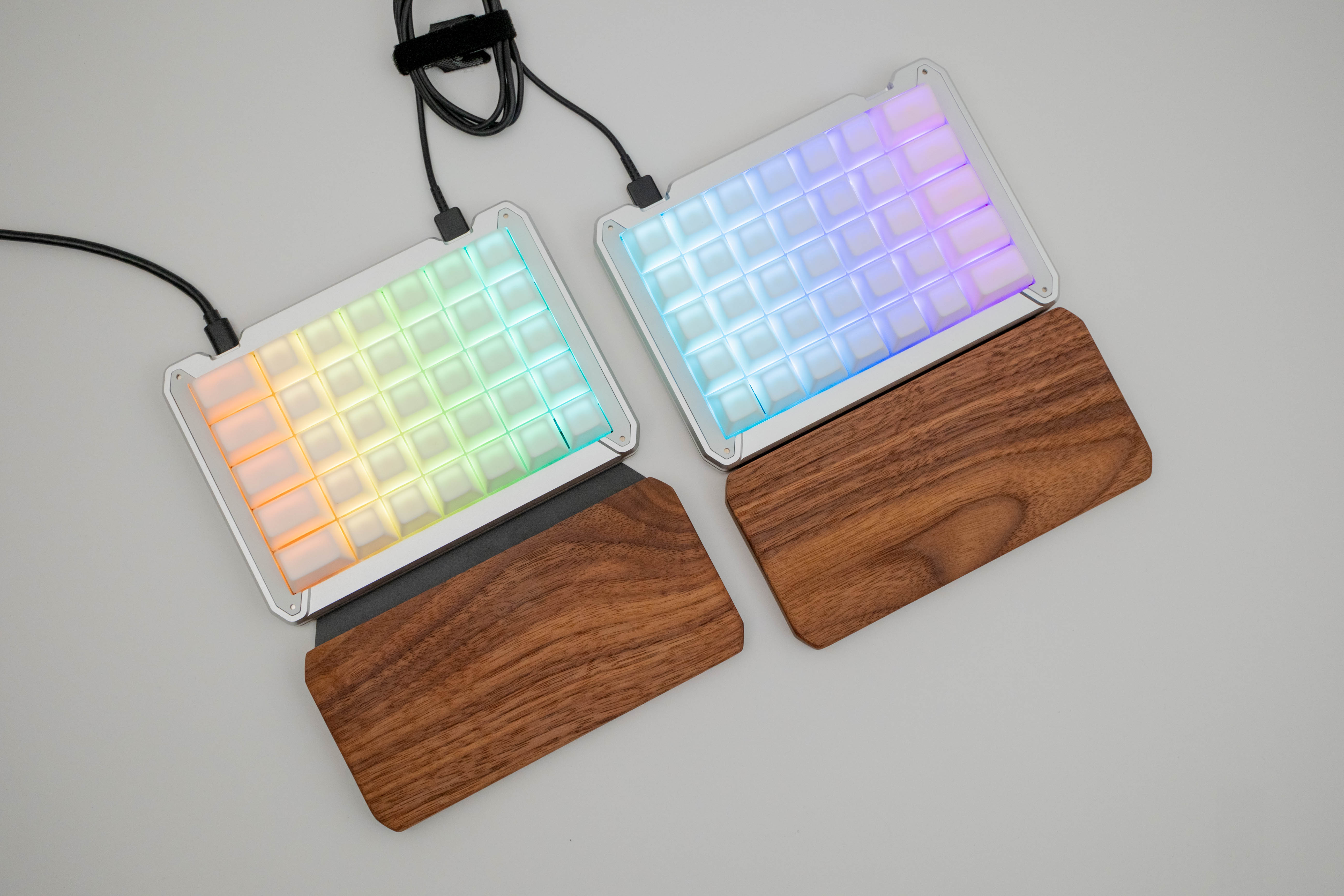

The split case has a few variants: Aluminum: 19mm thickness 3D Print: 15, 17, and 19mm thickness Each half of the case uses two identical frame parts, one top and one bottom. The 3D print files include a "Top" model with the USB ports removed. They are provided with no shrink compensation, you will need to apply a scaling factor (something close to 100.5% for PLA) in order to get the parts to fit properly. Magnets and steel plates are used to secure the case together. Three case thicknesses are…

Main components on the 10087
10087 bill of materials (BOM)
387 components, 27 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | RP2040TR13 | RP2040TR13 | U1, U4 |
| 2 | MCP1700-3302E_SOT23 | SOT-23 | U2, U6 |
| 2 | W25Q32JVZP | WSON-8-1EP_6x5mm_P1.27mm_EP3.4x4.3mm | U3, U5 |
| 2 | BSS138 | SOT-23 | Q1, Q2 |
| 2 | 12Mhz | Crystal_SMD_2520-4Pin_2.5x2.0mm | Y1, Y2 |
| 16 | MKi2c 1u | MKI2C-1U | J1, J2, J3, J4, J5, J6, J7, J8 +8 |
| 5 | 78171-0004 MOLEX | Molex_Pico-EZmate_781710004 | J9, J10, J11, J12, J24 |
| 2 | Conn_01x02_Female | PinSocket_1x02_P2.00mm_Vertical | J13, J14 |
| 14 | encoder | encoder_minimal | E1, E2, E3, E4, E5, E6, E7, E8 +6 |
| 72 | KEYSW | MX-Kailh-Socket | K1, K2, K3, K4, K5, K6, K7, K8 +64 |
| 70 | 100nF | C_0603_1608Metric | LC1, LC2, LC3, LC4, LC5, LC6, LC7, LC8 +62 |
| 4 | KMR221NGLFS | SW_Push_1P1T_NO_CK_KMR2 | SW1, SW2, SW3, SW4 |
| 4 | TYPEC-306DDW-ARP16 | TYPEC-306DDW-ARP16 | USB1, USB2, USB3, USB4 |
| 70 | WS2812B | WS2812-3528-Reversed | LED1, LED2, LED3, LED4, LED5, LED6, LED7, LED8 +62 |
| 36 | LBAV170LT1G | SOT-23-minimal | D1, D2, D3, D4, D5, D6, D7, D8 +28 |
| 12 | GG0402052R542P | D_0402_1005Metric | D16, D17, D39, D40, D42, D43, D44, D45 +4 |
| 2 | 1N4007 | D_SOD-123F | D41, D46 |
| 12 | 100nF | C_0402_1005Metric | C1, C2, C3, C4, C5, C6, C16, C17 +4 |
| 10 | 2.2uF | C_0402_1005Metric | C7, C8, C9, C10, C13, C22, C23, C24 +2 |
| 4 | 15pF | C_0402_1005Metric | C11, C12, C26, C27 |
Show 7 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 4 | 100nF | C_0603_1608Metric | C14, C15, C29, C30 |
| 4 | 10kR | R_0402_1005Metric | R1, R5, R10, R24 |
| 2 | 200R | R_0402_1005Metric | R2, R18 |
| 4 | 27R | R_0402_1005Metric | R3, R4, R16, R17 |
| 4 | 1kR | R_0402_1005Metric | R6, R9, R20, R23 |
| 4 | 7.15kR | R_0402_1005Metric | R7, R8, R21, R22 |
| 22 | 5.1kR | R_0402_1005Metric | R11, R12, R13, R14, R15, R19, R25, R26 +14 |
10087 design files
The KiCad project lives in the RGBKB/Keyboard-files repository on GitHub; these links point at the commit this page was built from.
10087: common questions
What microcontroller does the 10087 use?
The 10087 is built around the RP2040TR13, from the RP2040/RP2350 family.
How big is the 10087 PCB?
The 10087 measures 142.7 × 95.7 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the 10087?
387 components, from 27 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the 10087 design files?
From the RGBKB/Keyboard-files repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the 10087 design in my own project?
Yes, under the terms of its GPL-3.0 license, which RGBKB chose for the repository.
Can I test firmware for the 10087 without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
