1uO c v 2.2 PCB layout, top view — open source NXP board by rhinocerose

About the 1uO c v 2.2 PCB

1uO c v 2.2 is an open source NXP PCB design by rhinocerose, published on GitHub. It is a 2-layer board measuring 149 × 28.7 mm, with 122 components from 38 distinct parts.

Its main chip is the TEENSY_3.2_USB_DAC_RESET, from the NXP family. Other key parts include the OPA2172IDR, LM4040-5V, MCP6002SMT, MIC803-46D2VM3TR and LM321MF. By type, the board carries 46 resistors, 38 capacitors, 11 ICs, 4 transistors, 2 diodes and 1 connector.

It belongs with the audio designs in this gallery.

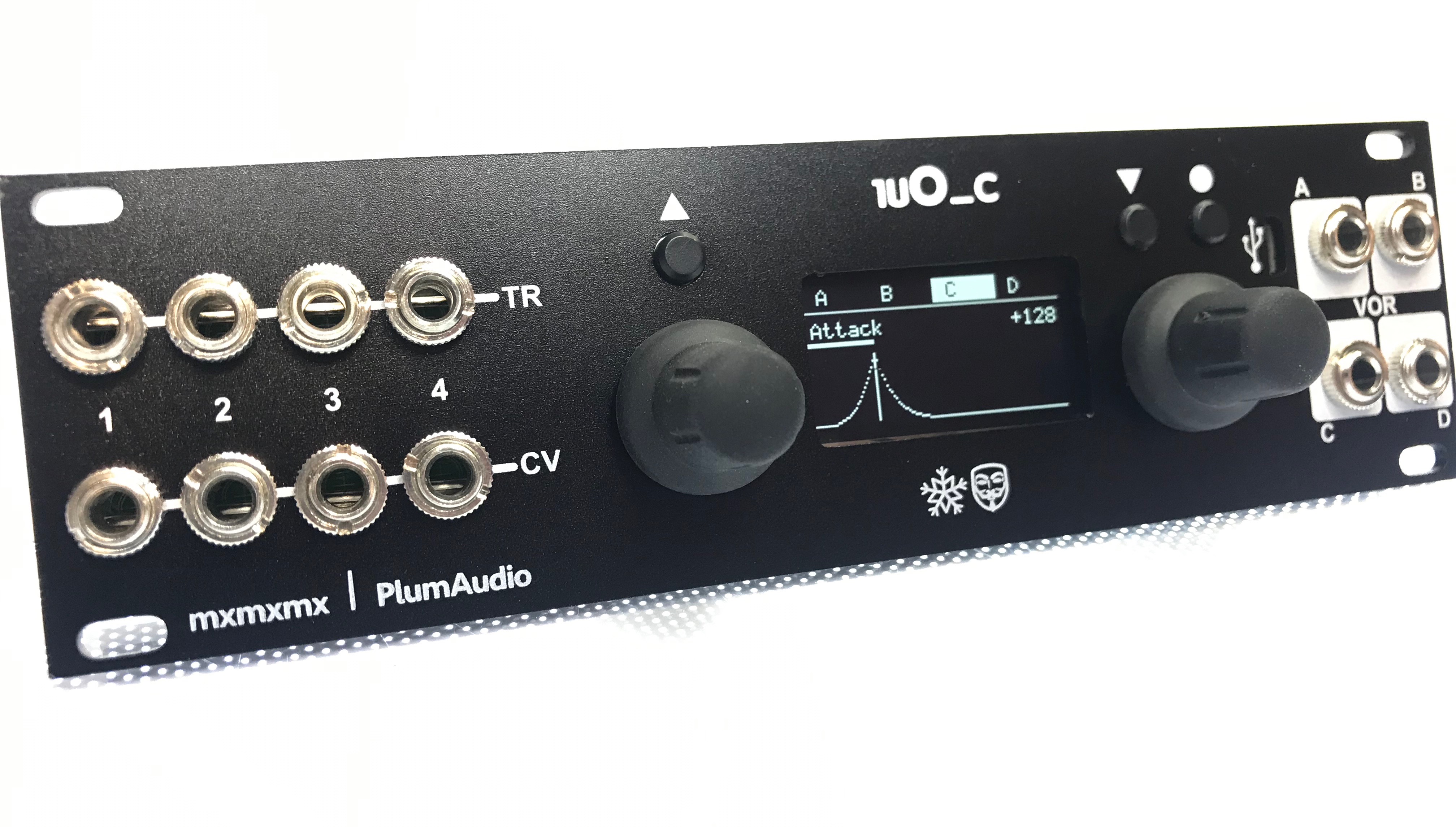

1uO c v 2.2, from the project README
From the project README

Main components on the 1uO c v 2.2

OPA2172IDRLM4040-5VMCP6002SMTMIC803-46D2VM3TRLM321MFDAC8565IAPWADP150AUJZ-3.3-R7LD1117S50TRUSB_BOARD

1uO c v 2.2 bill of materials (BOM)

122 components, 38 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
OPA2172IDR
IC1, IC2
1
LM4040-5V
IC3
2
MCP6002SMT
IC4, IC5
1
MIC803-46D2VM3TR
IC6
1
LM321MF
IC7
1
DAC8565IAPW
U1
1
ADP150AUJZ-3.3-R7
U2
1
LD1117S50TR
U3
1
USB_BOARD
U$1
4
MMBT3904LT1G
Q1, Q2, Q3, Q4
1
POWER_SIMPLE10
J$1
8
OG-PJ301_PJ301_THONKICONN
CV1, CV2, CV3, CV4, TR1, TR2, TR3, TR4
4
OG-PJ301_PJ301_THONKICONN
CV_A0, CV_B0, CV_C0, CV_D0
2
PEC11RPEC11R-SLOTED
ENC_L0, ENC_R0
3
—
SW_B0, SW_T0, SW_VOR0
1
TEENSY_3.2_USB_DAC_RESET
TEENSY3.2
1
1U_1.3OLED1U_1.3OLED_2
OLED0
2
1N5819HW
D1, D2
1
10UH
10uH
L1
2
10UF
10uF
C1, C4
Show 18 more
QtyPartRefs
2
22UF
22uF
C2, C3
4
22P
22p
C5, C6, C11, C12
17
100N
100n
C7, C8, C9, C10, C13, C14, C15, C17 +9
3
470N
470n
C16, C21, C22
2
10UF
10uF
C23, C24
2
1UF
1uF
C27, C28
4
330P-560P
330p-560p
C31, C32, C34, C35
1
10UF
10uF
C36
1
10UF
10uF
C40
4
220R
R1, R3, R5, R6
13
100K
100k
R2, R4, R7, R8, R16, R19, R24, R26 +5
4
24K
R9, R10, R11, R12
2
10K
10k
R13, R43
5
75K
75k
R14, R21, R28, R39, R42
3
510R
R15, R17, R47
1
2K
R18
8
33K
R20, R22, R27, R30, R32, R35, R36, R40
6
100R
R23, R25, R33, R41, R44, R45

1uO c v 2.2 design files

The KiCad project lives in the rhinocerose/eurorack-designs repository on GitHub; these links point at the commit this page was built from.

1uO c v 2.2: common questions

What microcontroller does the 1uO c v 2.2 use?

The 1uO c v 2.2 is built around the TEENSY_3.2_USB_DAC_RESET, from the NXP family.

How big is the 1uO c v 2.2 PCB?

The 1uO c v 2.2 measures 149 × 28.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the 1uO c v 2.2?

122 components, from 38 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the 1uO c v 2.2 design files?

From the rhinocerose/eurorack-designs repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the 1uO c v 2.2 design in my own project?

The repository has no license, so all rights stay with rhinocerose. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the 1uO c v 2.2 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug NXP firmware against it before you order a PCB.
