1uT u v1 1

rhinocerose·eurorack-designs·eurorack-1uT_u-master/kicad/1uT_u_v1_1.kicad_pcb

1uT u v1 1 PCB layout, top view — open source NXP board by rhinocerose

About the 1uT u v1 1 PCB

1uT u v1 1 is an open source NXP PCB design by rhinocerose, published on GitHub. It is a 2-layer board measuring 149 × 28.7 mm, with 128 components from 45 distinct parts.

Its main chip is the TEENSY_3.2_TEMPS_NO29, from the NXP family. Other key parts include the TL072D, TL074D, MIC803-46D2VM3TR, LM4040-5V and MCP6002SMT. By type, the board carries 55 resistors, 33 capacitors, 9 ICs, 7 LEDs, 2 transistors and 2 switches.

It belongs with the audio designs in this gallery.

From the project

For pcb's and panels: https://pushermanproductions.com/product/plum-audio-1u-temps-utile-pcb-and-aluminium-panel-30hp/

For pcb's and panels: https://pushermanproductions.com/product/plum-audio-1u-temps-utile-pcb-and-aluminium-panel-30hp/

Teensy Assembling (with Supervisor):https://youtu.be/IDsQhNgkL-Y

OLED Screen Assembling: https://youtu.be/ywh_6SPNrSg

** Note for Pusherman v1.0 Pcb's - There is minor silk screen mistake - The Inputs and Outputs not numberd correctly.

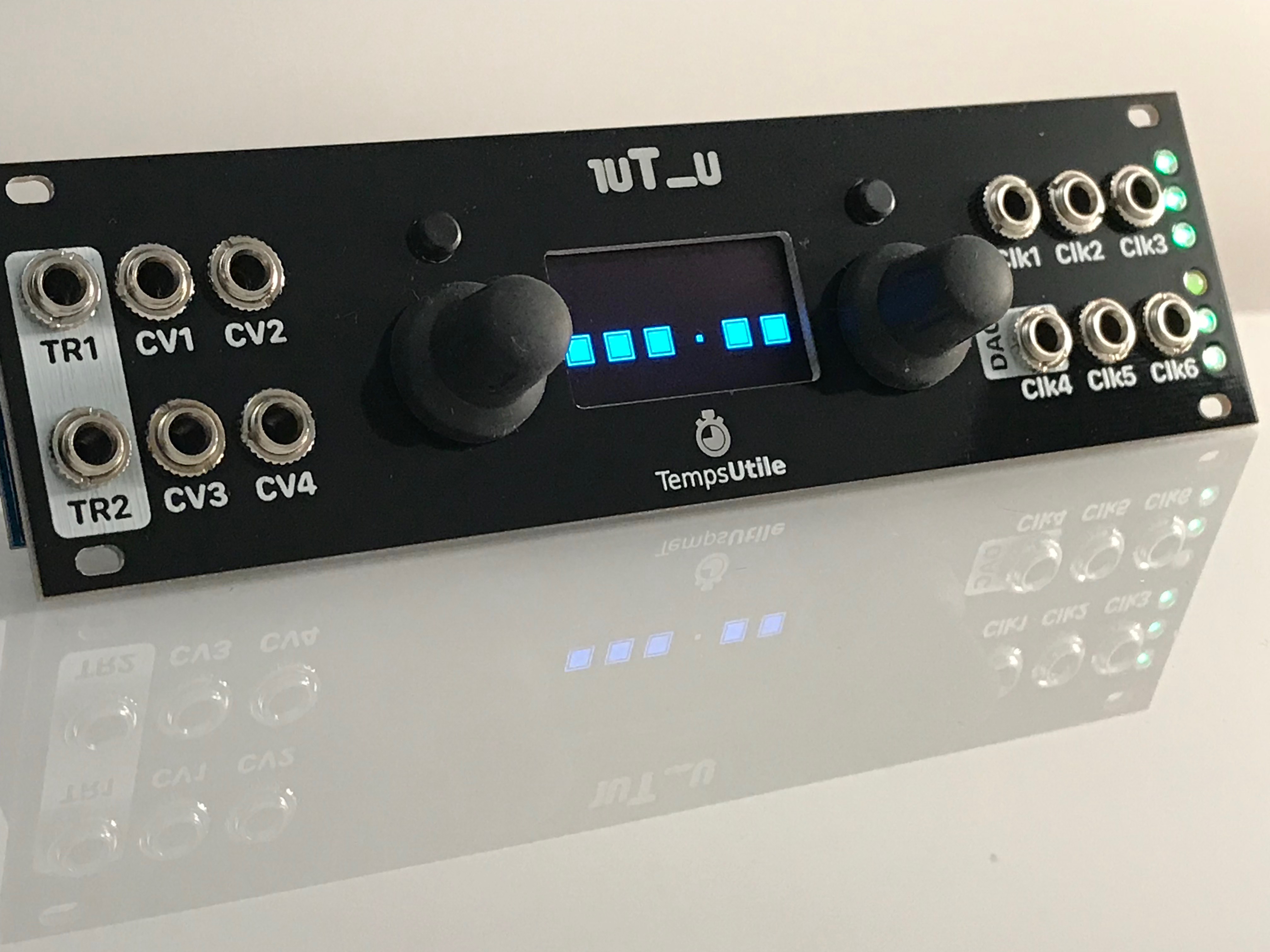

1uT u v1 1, from the project README
From the project README

Main components on the 1uT u v1 1

TL072DTL074DMIC803-46D2VM3TRLM4040-5VMCP6002SMTADP150AUJZ-3.3-R7LD1117S50TR

1uT u v1 1 bill of materials (BOM)

128 components, 45 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
TL072D
IC1, IC2
1
TL074D
IC3
1
MIC803-46D2VM3TR
IC4
1
LM4040-5V
IC5
2
MCP6002SMT
IC6, IC7
1
ADP150AUJZ-3.3-R7
U1
1
LD1117S50TR
U2
2
MMBT3904LT1G
Q1, Q2
1
POWER_SIMPLE10
J$1
7
OG-PJ301_PJ301_THONKICONN
CL1, CL2, CL3, CL6, CLK4, TRIG1, TRIG2
5
OG-PJ301_PJ301_THONKICONN
CL4/DAC0, CV_1, CV_2, CV_3, CV_4
2
PEC11R
ENC-L0, ENC-R0
1
—
RESET0
2
—
SW1, SW2
1
TEENSY_3.2_TEMPS_NO29
TEENSY_3.2
5
—
LED1, LED2, LED3, LED5, LED6
1
WP937EGW
LED4
1
1U_1.3OLED1U_1.3OLED_2
OLED0
2
1N5819HW
D1, D2
1
10UH
10uH
L1
Show 25 more
QtyPartRefs
2
10UF
10uF
C1, C2
14
100N
100n
C3, C4, C5, C6, C10, C11, C14, C17 +6
2
3.3N
3.3n
C7, C13
2
1n
C8, C9
2
22UF
22uF
C12, C16
3
470N
470n
C15, C18, C19
2
10UF
10uF
C20, C21
2
1UF
1uF
C24, C25
4
330P-560P
330p-560p
C27, C30, C31, C32
11
100K
100k
R1, R2, R3, R4, R5, R35, R38, R44 +3
5
10K
10k
R6, R11, R14, R23, R25
7
1.0K
1.0k
R7, R9, R12, R15, R17, R24, R27
5
20K
20k
R8, R10, R13, R19, R26
1
1K8
1k8
R16
1
1K2
1k2
R18
1
6K8
6k8
R20
2
3k
R21, R22
1
4K2
4k2
R28
3
510R
R29, R31, R32
1
3K9
3k9
R30
1
2K
R33
4
100R
R34, R36, R41, R42
4
75K
75k
R37, R45, R46, R49
6
33K
33k
R39, R40, R43, R48, R51, R52
2
47K
47k
R54, R55

1uT u v1 1 design files

The KiCad project lives in the rhinocerose/eurorack-designs repository on GitHub; these links point at the commit this page was built from.

1uT u v1 1: common questions

What microcontroller does the 1uT u v1 1 use?

The 1uT u v1 1 is built around the TEENSY_3.2_TEMPS_NO29, from the NXP family.

How big is the 1uT u v1 1 PCB?

The 1uT u v1 1 measures 149 × 28.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the 1uT u v1 1?

128 components, from 45 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the 1uT u v1 1 design files?

From the rhinocerose/eurorack-designs repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the 1uT u v1 1 design in my own project?

The repository has no license, so all rights stay with rhinocerose. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the 1uT u v1 1 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug NXP firmware against it before you order a PCB.
