PCM5102A
About the PCM5102A PCB

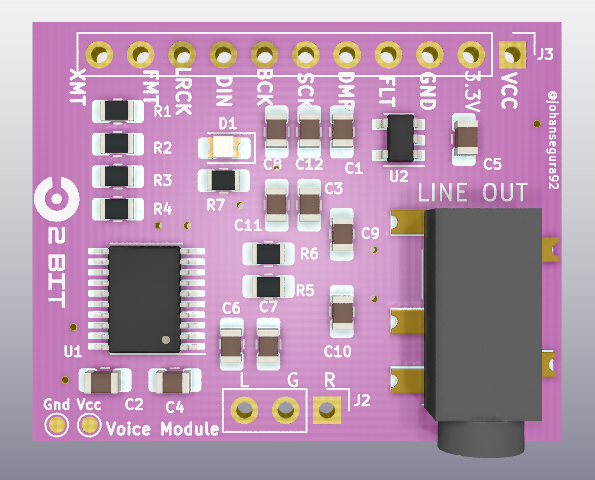

PCM5102A is an open source PCB design by risejohan, published on GitHub. It is a 2-layer board measuring 32.5 × 25.8 mm, with 25 components from 13 distinct parts.
Other key parts include the PCM5102 and MIC5219-2.5YM5. By type, the board carries 12 capacitors, 7 resistors, 3 connectors, 2 ICs and 1 diode.
It belongs with the audio designs in this gallery.
From the project
In this repo we can see some designs with free use for the community, 2 Bit electronic
Be able to use the designs of the common modules to have available and apply to electronic designs.
PCM5102 I2S DAC MODULE FOR AUDIO PLAYER DECODER The DAC module provides a very affordable high quality I2C for Arduino or any microcontroller. Since it's digital audio, it sounds great, much better than onboard analog audio. The stereo connector is already soldered to the board.
Main components on the PCM5102A
PCM5102A bill of materials (BOM)
25 components, 13 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | PCM5102 | TSSOP-20_4.4x6.5mm_P0.65mm | U1 |
| 1 | MIC5219-2.5YM5 | SOT-23-5 | U2 |
| 1 | PJ327A | PJ327A | J1 |
| 1 | P3 | PinHeader_1x03_P2.54mm_Vertical | J2 |
| 1 | P11 | PinHeader_1x11_P2.54mm_Vertical | J3 |
| 1 | LED | LED_0805_2012Metric_Castellated | D1 |
| 5 | 0.1uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C1, C2, C4, C8, C12 |
| 2 | 10uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C3, C11 |
| 1 | 4.7uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C5 |
| 2 | 2.2uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C6, C7 |
| 2 | 2.2nF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C9, C10 |
| 6 | 470 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1, R2, R3, R4, R5, R6 |
| 1 | 1K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R7 |
PCM5102A design files
The KiCad project lives in the risejohan/2Bit repository on GitHub; these links point at the commit this page was built from.
PCM5102A: common questions
How big is the PCM5102A PCB?
The PCM5102A measures 32.5 × 25.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the PCM5102A?
25 components, from 13 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the PCM5102A design files?
From the risejohan/2Bit repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the PCM5102A design in my own project?
The repository has no license, so all rights stay with risejohan. Use it as a reference, and ask the author before reusing the design.
