DSKY-digital indicator replica

rrainey·DSKY-digital-indicator-replica·pcb/DSKY_led_display.kicad_pcb

DSKY-digital indicator replica PCB layout, top view — open source Microchip SAM board by rrainey
Simulate this board

About the DSKY-digital indicator replica PCB

DSKY-digital indicator replica is an open source Microchip SAM PCB design by rrainey, published on GitHub under the CC-BY-SA-4.0 license. It is a 4-layer board measuring 63.5 × 105.5 mm, with 237 components from 18 distinct parts.

Its main chip is the ATSAMD21E18A-A, from the Microchip SAM family. Other key parts include the AP2204K-3.3, LP5036 and TCA9543ADR. By type, the board carries 192 diodes, 17 resistors, 15 capacitors, 9 ICs, 3 connectors and 1 switch.

It belongs with the displays & leds designs in this gallery.

From the project

A replica of the Apollo Guidance Computer DSKY digital display implemented with LEDs

This is a scale functional replica of the Digital Indicator panel for the Apollo Guidance Computer. It is designed to be part of a larger replica of the Display and Keyboard (DSKY) module of the AGC.

This project is composed of these component subfolders:

artwork** - artwork to be printed or silk-screened onto the glass/acrylic cover.

pcb** - KiCad 9 project for the controller PCB design.

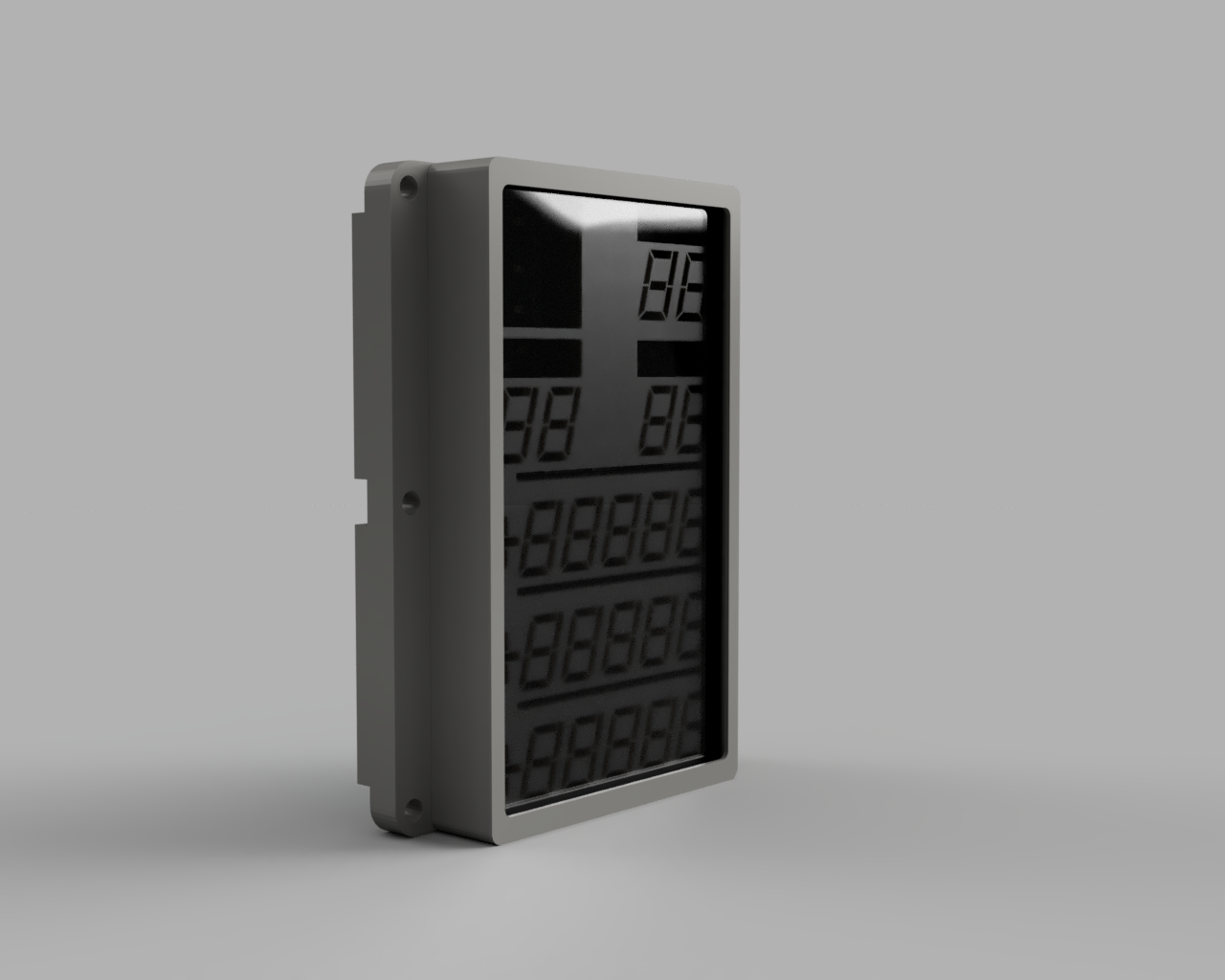

DSKY-digital indicator replica, from the project README
From the project README

Main components on the DSKY-digital indicator replica

AP2204K-3.3LP5036ATSAMD21E18A-ATCA9543ADR

DSKY-digital indicator replica bill of materials (BOM)

237 components, 18 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
AP2204K-3.3
U1
6
LP5036
U2, U3, U4, U5, U7, U8
1
ATSAMD21E18A-A
U6
1
TCA9543ADR
U9
1
105133-0001
J1
1
3221-10-0300-00
3221-10-0300-00-TR
J2
1
TSM-104-01-L-SV
J3
1
KMR241NG
SW1
1
PWR LED
D1
1
red
D2
188
IN-S85ATG
D3, D4, D5, D6, D7, D8, D9, D10 +180
2
B0540W
D191, D192
13
1 uF
C1, C2, C3, C4, C6, C7, C8, C9 +5
2
10 uF
C5, C15
2
1.5K
R4, R5
8
1K
R7, R8, R9, R10, R14, R21, R22, R23
1
0K
R13
6
3.65K
R15, R16, R17, R18, R19, R20

DSKY-digital indicator replica design files

The KiCad project lives in the rrainey/DSKY-digital-indicator-replica repository on GitHub; these links point at the commit this page was built from.

DSKY-digital indicator replica: common questions

What microcontroller does the DSKY-digital indicator replica use?

The DSKY-digital indicator replica is built around the ATSAMD21E18A-A, from the Microchip SAM family.

How big is the DSKY-digital indicator replica PCB?

The DSKY-digital indicator replica measures 63.5 × 105.5 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the DSKY-digital indicator replica?

237 components, from 18 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the DSKY-digital indicator replica design files?

From the rrainey/DSKY-digital-indicator-replica repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the DSKY-digital indicator replica design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which rrainey chose for the repository.

Can I test firmware for the DSKY-digital indicator replica without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Microchip SAM firmware against it before you order a PCB.
