INSPACe-CanSat-Team-Tejas-PCB-Design

Rujul-Rumale·INSPACe-CanSat-Team-Tejas-PCB-Design·hardware/Tejas.kicad_pcb

INSPACe-CanSat-Team-Tejas-PCB-Design layout, top view — open source NXP board by Rujul-Rumale

About the INSPACe-CanSat-Team-Tejas-PCB-Design

INSPACe-CanSat-Team-Tejas-PCB-Design is an open source NXP PCB design by Rujul-Rumale, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 101.9 × 101.9 mm, with 34 components from 19 distinct parts.

Its main chip is the Teensy4.1, from the NXP family. Other key parts include the XB24-ASI-001, BNO055, BME280, MICS_5524 and XT30UPB-M. By type, the board carries 13 ICs, 6 resistors, 5 capacitors, 4 diodes, 3 modules and 2 connectors.

It belongs with the sensors designs in this gallery.

From the project

Onboard computer PCB for the INSPACe Team Tejas CanSat — Teensy 4.1 + XBee + sensor suite, designed in KiCad. Schematic, layout, Gerbers, 3D renders and libraries.

Carrier board for our INSPACe CanSat ("Tejas") — Teensy 4.1, XBee radio, and a full sensor suite (BNO055, BME688, DPS310, INA260, MICS5524) with dual buck regulators, servo/ESC headers, and buzzer on a ~102×102 mm 2-layer board.

Designed by me (Rujul Rumale) in KiCad, Oct 2025 — schematic, layout, and Gerber release. I also put together the data-processing section of our PFR deck.

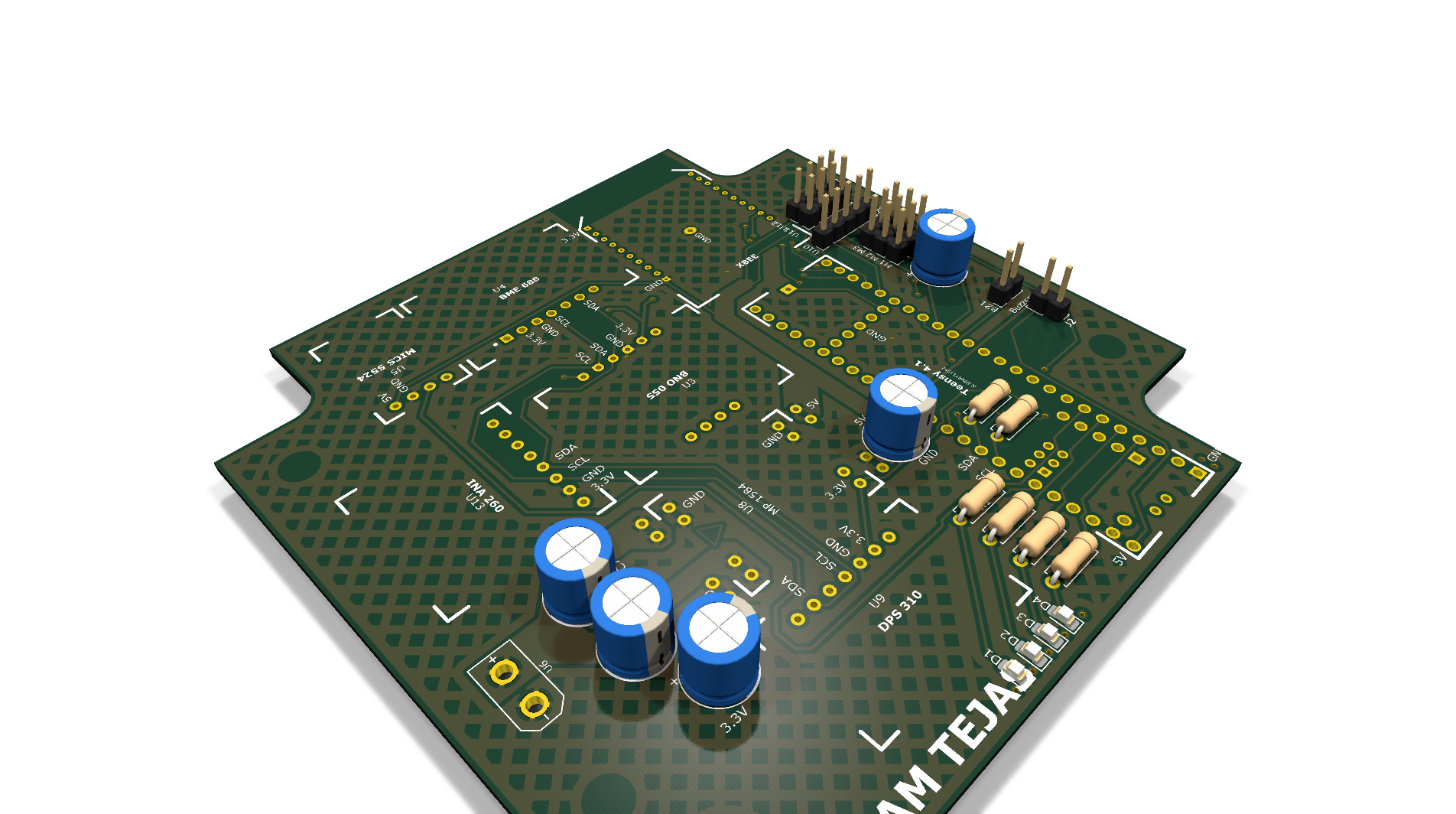

INSPACe-CanSat-Team-Tejas-PCB-Design, from the project README
From the project README

Main components on the INSPACe-CanSat-Team-Tejas-PCB-Design

Teensy4.1XB24-ASI-001BNO055BME280MICS_5524XT30UPB-MBUCK_5ADPS310L89ESPINA260

INSPACe-CanSat-Team-Tejas-PCB-Design bill of materials (BOM)

34 components, 19 distinct parts.

QtyPartRefs
1
Teensy4.1
U1
1
XB24-ASI-001
U2
1
BNO055
U3
1
BME280
U4
1
MICS_5524
U5
1
XT30UPB-M
U6
1
BUCK_5A
U7
1
BUCK_5A
U8
1
DPS310
U9
1
L89
U10
2
ESP
U11, U12
1
INA260
U13
3
Motor_Servo
M1, M2, M3
1
S8421-45R
J1
1
Conn_01x02_Pin
J2
1
Buzzer
BZ1
4
LED
D1, D2, D3, D4
5
C_Polarized
C7, C9, C10, C11, C12
6
R
R1, R2, R3, R4, R5, R6

INSPACe-CanSat-Team-Tejas-PCB-Design design files

The KiCad project lives in the Rujul-Rumale/INSPACe-CanSat-Team-Tejas-PCB-Design repository on GitHub; these links point at the commit this page was built from.

INSPACe-CanSat-Team-Tejas-PCB-Design: common questions

What microcontroller does the INSPACe-CanSat-Team-Tejas-PCB-Design use?

The INSPACe-CanSat-Team-Tejas-PCB-Design is built around the Teensy4.1, from the NXP family.

How big is the INSPACe-CanSat-Team-Tejas-PCB-Design?

The INSPACe-CanSat-Team-Tejas-PCB-Design measures 101.9 × 101.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the INSPACe-CanSat-Team-Tejas-PCB-Design?

34 components, from 19 distinct parts. The full bill of materials is listed on this page.

Where can I download the INSPACe-CanSat-Team-Tejas-PCB-Design design files?

From the Rujul-Rumale/INSPACe-CanSat-Team-Tejas-PCB-Design repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the INSPACe-CanSat-Team-Tejas-PCB-Design design in my own project?

Yes, under the terms of its CERN-OHL-S-2.0 license, which Rujul-Rumale chose for the repository.

Can I test firmware for the INSPACe-CanSat-Team-Tejas-PCB-Design without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug NXP firmware against it before you order a PCB.
