Kicad lin ctrl

s59mz·kicad-lin_ctrl

Kicad lin ctrl PCB layout, top view — open source AVR/Arduino board by s59mz

About the Kicad lin ctrl PCB

Kicad lin ctrl is an open source AVR/Arduino PCB design by s59mz, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 183 × 110 mm, with 94 components from 38 distinct parts.

Its main chip is the Arduino_Nano_Every, from the AVR/Arduino family. Other key parts include the LM2596, L78M05CDT-TR, 74HC14D, ULN2004 and 74HC238. By type, the board carries 47 capacitors, 11 connectors, 11 resistors, 10 ICs, 7 diodes and 2 inductors.

It belongs with the audio designs in this gallery.

From the project

Controller for HF Linear Power Amplifier

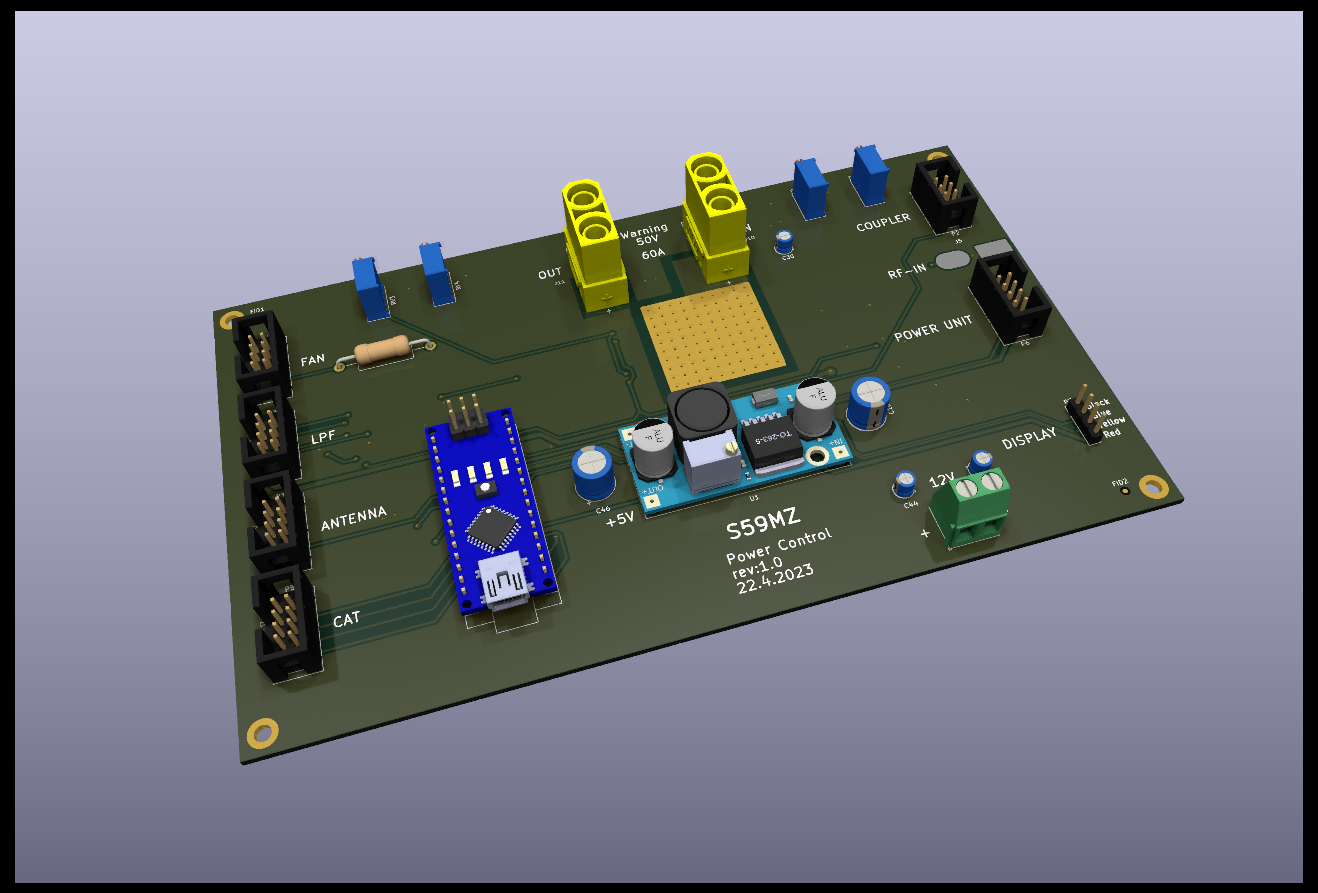

Kicad lin ctrl, from the project README
From the project README

Main components on the Kicad lin ctrl

LM2596L78M05CDT-TR74HC14DULN200474HC238CD4060BMBTS50085-1TMA_1LM358BTS50085-1TMAArduino_Nano_Every

Kicad lin ctrl bill of materials (BOM)

94 components, 38 distinct parts.

QtyPartRefs
1
LM2596
U1
1
L78M05CDT-TR
U2
1
74HC14D
U3
2
ULN2004
U4, U7
1
74HC238
U5
1
CD4060BM
U6
1
BTS50085-1TMA_1
U8
1
LM358
U9
1
BTS50085-1TMA
U10
1
Arduino_Nano_Every
A1
1
MJD127
Q1
1
12V-IN
J3
1
Input
J5
1
XT90-M
J10
1
XT90-F
J11
1
ANTENNA
P1
1
COUPLER
P2
1
LPF
P3
1
FAN
P4
1
CAT
P5
Show 18 more
QtyPartRefs
1
POWER UNIT
P6
1
DISPLAY
P7
3
10k
RV1, RV2, RV4
1
1k
RV3
5
1N4148W
D1, D2, D3, D4, D5
2
1SMB5917BT
D6, D7
2
100uH
L1, L2
39
10n
C1, C2, C3, C4, C5, C6, C7, C8 +31
1
10p
C9
3
10u
C12, C35, C44
2
1000u
C15, C46
2
100n
C22, C34
4
4k7
R1, R2, R7, R10
3
10k
R3, R4, R11
1
470R
R5
1
51
R6
1
100k
R8
1
1k
R9

Kicad lin ctrl design files

The KiCad project lives in the s59mz/kicad-lin_ctrl repository on GitHub; these links point at the commit this page was built from.

Kicad lin ctrl: common questions

What microcontroller does the Kicad lin ctrl use?

The Kicad lin ctrl is built around the Arduino_Nano_Every, from the AVR/Arduino family.

How big is the Kicad lin ctrl PCB?

The Kicad lin ctrl measures 183 × 110 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Kicad lin ctrl?

94 components, from 38 distinct parts. The full bill of materials is listed on this page.

Where can I download the Kicad lin ctrl design files?

From the s59mz/kicad-lin_ctrl repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Kicad lin ctrl design in my own project?

Yes, under the terms of its GPL-3.0 license, which s59mz chose for the repository.

Can I test firmware for the Kicad lin ctrl without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
