Kicad pmod i2s2

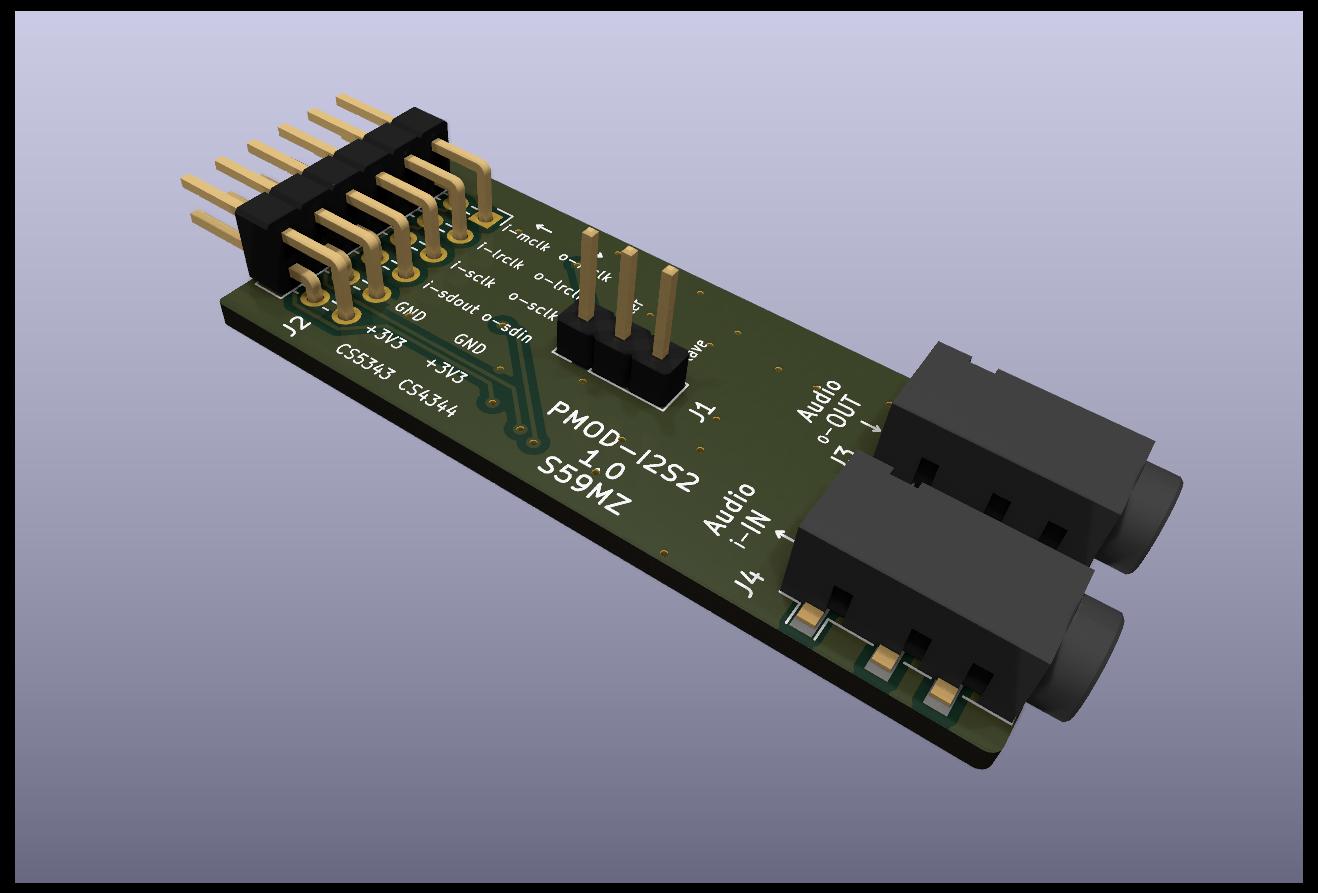

About the Kicad pmod i2s2 PCB
Kicad pmod i2s2 is an open source PCB design by s59mz, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 20.3 × 49.3 mm, with 40 components from 19 distinct parts.
Other key parts include the 74LVC1G126, CS4344 and CS5343. By type, the board carries 21 capacitors, 10 resistors, 4 connectors, 3 ICs and 2 inductors.
It belongs with the audio designs in this gallery.
From the project
PMOD module with two I2S interfaces and two stereo audio jacks for analog audio inputs and outputs.
Main components on the Kicad pmod i2s2
Kicad pmod i2s2 bill of materials (BOM)
40 components, 19 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 74LVC1G126 | SOT-23-5_HandSoldering | U1 |
| 1 | CS4344 | TSSOP-10_3x3mm_P0.5mm | U2 |
| 1 | CS5343 | TSSOP-10_3x3mm_P0.5mm | U3 |
| 1 | M/S | PinHeader_1x03_P2.54mm_Vertical | J1 |
| 1 | pmod | PinHeader_2x06_P2.54mm_Horizontal | J2 |
| 1 | Audio Out | Jack_3.5mm_PJ320D_Horizontal | J3 |
| 1 | Audio In | Jack_3.5mm_PJ320D_Horizontal | J4 |
| 2 | 600 | L_0603_1608Metric_Pad1.05x0.95mm_HandSolder | FB1, FB2 |
| 7 | 100n | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C1, C2, C3, C4, C5, C10, C11 |
| 2 | 4u7 | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C6, C7 |
| 3 | 10u | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C8, C12, C13 |
| 3 | 1u | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C9, C18, C19 |
| 2 | 3u3 | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C14, C15 |
| 2 | 180p | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C16, C17 |
| 2 | 2n7 | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C20, C21 |
| 1 | 0 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1 |
| 3 | 10k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R2, R3, R4 |
| 2 | 470 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R5, R6 |
| 4 | 5k1 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R7, R8, R9, R10 |
Kicad pmod i2s2 design files
The KiCad project lives in the s59mz/kicad-pmod_i2s2 repository on GitHub; these links point at the commit this page was built from.
- Layoutkicad-pmod_i2s2.kicad_pcb
- Schematickicad-pmod_i2s2.kicad_sch
Kicad pmod i2s2: common questions
How big is the Kicad pmod i2s2 PCB?
The Kicad pmod i2s2 measures 20.3 × 49.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Kicad pmod i2s2?
40 components, from 19 distinct parts. The full bill of materials is listed on this page.
Where can I download the Kicad pmod i2s2 design files?
From the s59mz/kicad-pmod_i2s2 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Kicad pmod i2s2 design in my own project?
Yes, under the terms of its GPL-3.0 license, which s59mz chose for the repository.
