Display interface

saktheeswaranswan·8-bit-computer-pcb-version-simple·helix_display_interface/display_interface/display_interface.kicad_pcb

Display interface PCB layout, top view — open source AVR/Arduino board by saktheeswaranswan

About the Display interface PCB

Display interface is an open source AVR/Arduino PCB design by saktheeswaranswan, published on GitHub under the MIT license. It is a 2-layer board measuring 96.5 × 55.3 mm, with 7 components from 6 distinct parts.

Its main chip is the ATmega328-PU, from the AVR/Arduino family. By type, the board carries 4 connectors, 1 IC and 1 capacitor.

It belongs with the displays & leds designs in this gallery.

From the project

An ATmega328-driven LCD Display peripheral for the MK1 8-bit CPU.

An ATmega328-driven LCD Display peripheral for the MK1 8-bit CPU.

LCD character display interface for the MK1 CPU computer.

Uses an ATmega328P as driver and implements Integer and Character output mode.

Commands and data are both transmitted on the external bus.

There are two external bus connectors for peripheral daisy chaining.

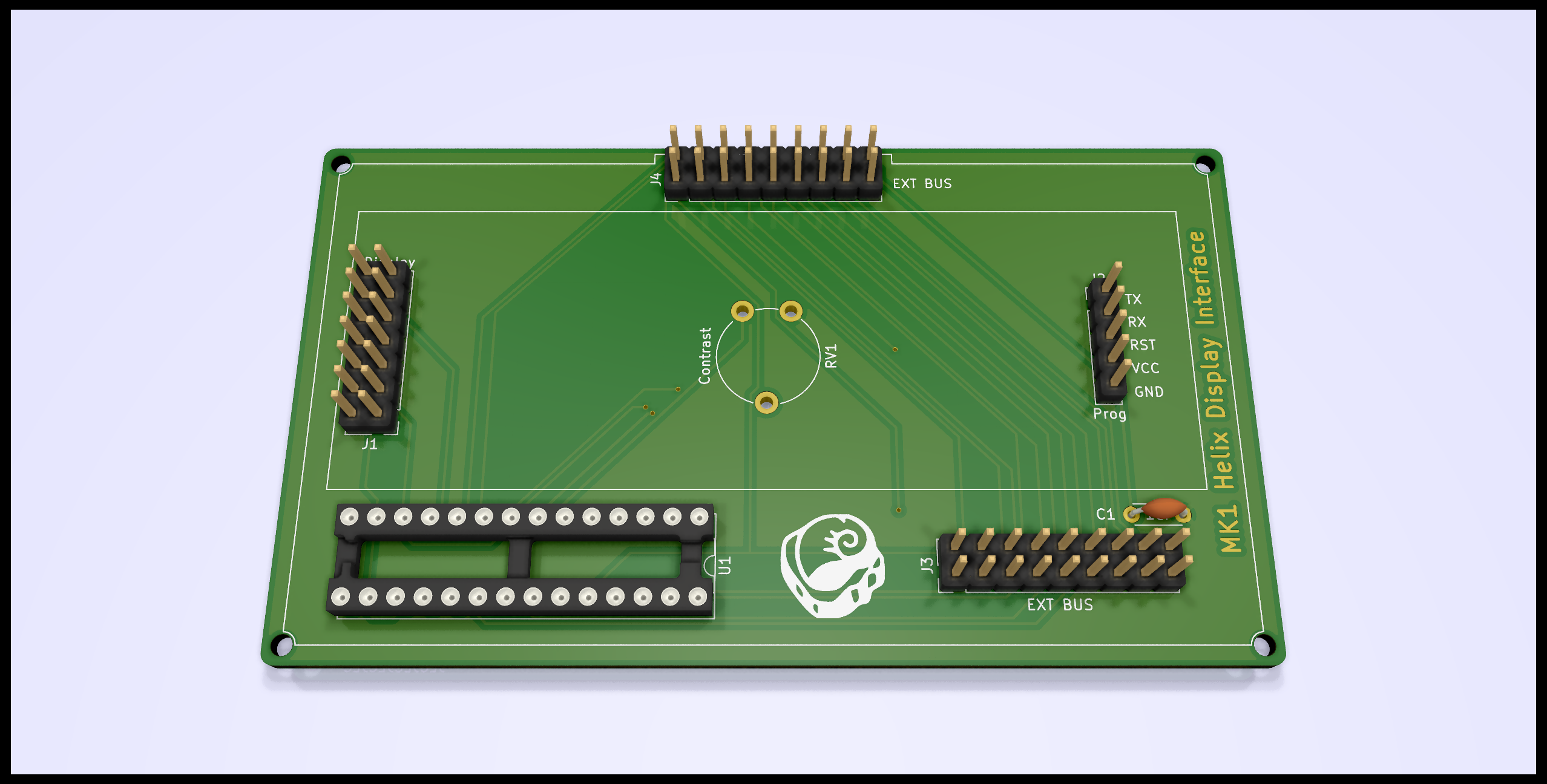

Display interface, from the project README
From the project README

Main components on the Display interface

ATmega328-PU

Display interface bill of materials (BOM)

7 components, 6 distinct parts.

QtyPartRefs
1
ATmega328-PU
U1
1
Display
J1
1
Prog
J2
2
EXT BUS
J3, J4
1
Contrast
RV1
1
1uf
C1

Display interface design files

The KiCad project lives in the saktheeswaranswan/8-bit-computer-pcb-version-simple repository on GitHub; these links point at the commit this page was built from.

Display interface: common questions

What microcontroller does the Display interface use?

The Display interface is built around the ATmega328-PU, from the AVR/Arduino family.

How big is the Display interface PCB?

The Display interface measures 96.5 × 55.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Display interface?

7 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the Display interface design files?

From the saktheeswaranswan/8-bit-computer-pcb-version-simple repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Display interface design in my own project?

Yes, under the terms of its MIT license, which saktheeswaranswan chose for the repository.

Can I test firmware for the Display interface without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
