Autohealer PCB layout, top view — open source ESP32 board by sarpharaj-09

About the Autohealer PCB

Autohealer is an open source ESP32 PCB design by sarpharaj-09, published on GitHub. It is a 2-layer board measuring 101.6 × 78.8 mm, with 36 components from 23 distinct parts.

Its main chip is the ESP32-DEVKIT-V1, from the ESP32 family. Other key parts include the TMC2209_SILENTSTEPSTICK. By type, the board carries 9 resistors, 8 transistors, 6 capacitors, 5 connectors, 4 ICs and 1 module.

It belongs with the robotics & motion, iot & wireless and sensors designs in this gallery.

From the project

An automatic tharapy machine that can heal you.

- 🎯 Overview - ✨ Features - 🔬 Technical Specifications - 🏗️ System Architecture - 📋 Project Background - 🎯 Objectives - 📚 Technology Stack - 🔧 Hardware Components - 🛠️ Methodology - 🎨 Project Gallery - ⚡ Installation & Setup - 🎮 Usage & Operation - 📊 Results & Analysis - 🔮 Future Enhancements - 📁 Project Structure - 📚 Documentation - 👥 Development Team - ⚠️ Limitations & Scope - 📄 License

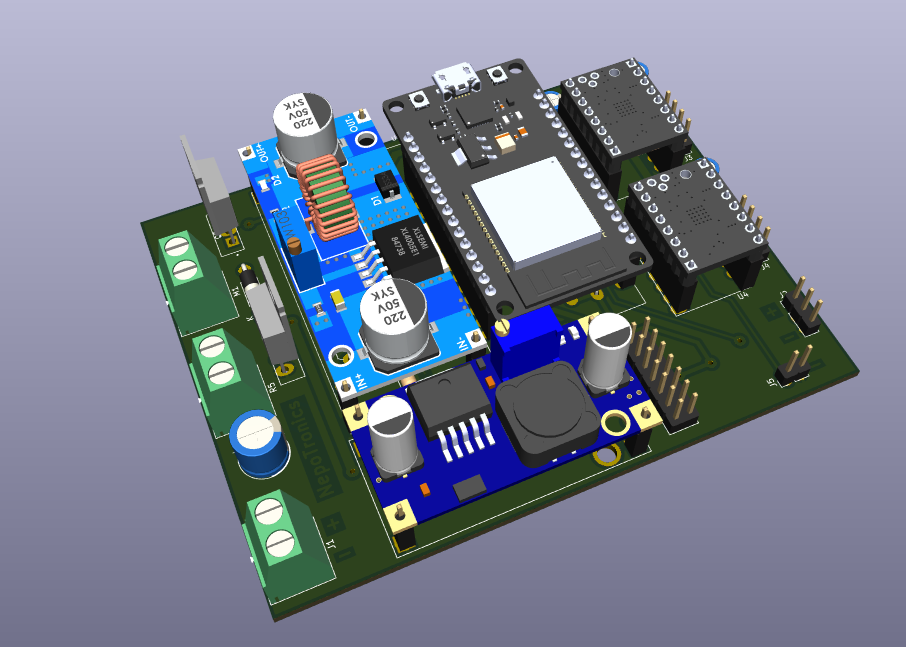

Autohealer, from the project README
From the project README

Main components on the Autohealer

ESP32-DEVKIT-V1TMC2209_SILENTSTEPSTICK

Autohealer bill of materials (BOM)

36 components, 23 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
~
U1
1
ESP32-DEVKIT-V1
U2
2
TMC2209_SILENTSTEPSTICK
U3, U4
1
Motor_DC
M1
4
BC547
Q1, Q2, Q5, Q6
2
BC557
Q3, Q7
2
IRFZ44NPBF
Q4, Q8
1
SCREW_TERMINAL_01X02
Screw_Terminal_01x02
J1
1
CONN_01X03_PIN
Conn_01x03_Pin
J2
2
CONN_01X04_PIN
Conn_01x04_Pin
J3, J4
1
CONN_01X02_PIN
Conn_01x02_Pin
J5
1
LM2596_MODULE
LM2596_module
PS1
1
XL4015_MODULE
XL4015_module
PS2
1
1N4003
D1
3
330UF
47uf_25V
C1, C3, C5
1
1UF_50V
1uf_50v
C2
2
100NF
100nf
C4, C6
1
4K7
4k7
R1
2
100R
R2, R6
2
1K
R3, R7
Show 3 more
QtyPartRefs
2
10K
R4, R9
1
HEATER_24V
Heater_24V
R5
1
100K
100k
R8

Autohealer design files

The KiCad project lives in the sarpharaj-09/autohealer repository on GitHub; these links point at the commit this page was built from.

Autohealer: common questions

What microcontroller does the Autohealer use?

The Autohealer is built around the ESP32-DEVKIT-V1, from the ESP32 family.

How big is the Autohealer PCB?

The Autohealer measures 101.6 × 78.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Autohealer?

36 components, from 23 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Autohealer design files?

From the sarpharaj-09/autohealer repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Autohealer design in my own project?

The repository has no license, so all rights stay with sarpharaj-09. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Autohealer without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
