About the Zayalan-RP2040 PCB

Zayalan-RP2040 is an open source RP2040/RP2350 PCB design by sasukeop108, published on GitHub. It is a 2-layer board measuring 21 × 51 mm, with 35 components from 19 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the W25Q128JVS and MCP1700x-120xxMB. By type, the board carries 17 capacitors, 8 resistors, 4 connectors, 3 ICs, 1 crystal and 1 switch.

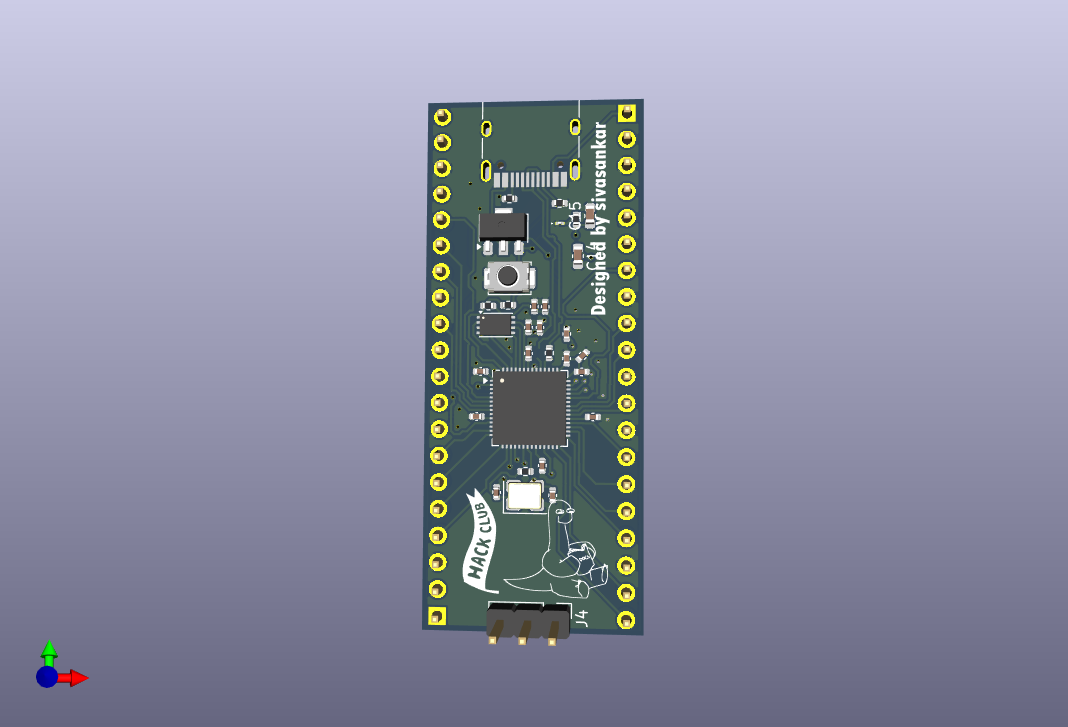

Zayalan-RP2040, from the project README — From the project README

Main components on the Zayalan-RP2040

RP2040 W25Q128JVS MCP1700x-120xxMB

Zayalan-RP2040 bill of materials (BOM)

35 components, 19 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	RP2040	QFN-56-1EP_7x7mm_P0.4mm_EP3.2x3.2mm	U1
1	W25Q128JVS	Winbond_USON-8-1EP_3x2mm_P0.5mm_EP0.2x1.6mm	U2
1	MCP1700x-120xxMB	SOT-89-3	U3
1	12MHz	Crystal_SMD_3225-4Pin_3.2x2.5mm	Y2
1	USB_C_Receptacle_USB2.0_14P	USB_C_Receptacle_HRO_TYPE-C-31-M-12	J1
1	~	PinHeader_1x20_P2.54mm_Vertical	J2
1	Conn_01x20_Pin	PinHeader_1x20_P2.54mm_Vertical	J3
1	Conn_01x03_Pin	PinHeader_1x03_P2.54mm_Vertical	J4
1	SW_Push	SW_Push_SPST_NO_Alps_SKRK	SW1
1	LED	LED_01005_0402Metric	D1
1	0.1 uF	C_0402_1005Metric	C1
10	0.1uF	C_0402_1005Metric	C2, C3, C4, C5, C6, C7, C8, C11 +2
2	1uF	C_0402_1005Metric	C9, C10
2	15pF	C_0402_1005Metric	C13, C16
2	10uF	C_0603_1608Metric	C14, C15
2	5.1k	R_0402_1005Metric	R1, R2
2	27	R_0402_1005Metric	R3, R4
3	1K	R_0402_1005Metric	R5, R7, R12
1	10K	R_0402_1005Metric	R6

Zayalan-RP2040 design files

The KiCad project lives in the sasukeop108/Zayalan-RP2040 repository on GitHub; these links point at the commit this page was built from.

Zayalan-RP2040: common questions

What microcontroller does the Zayalan-RP2040 use?

The Zayalan-RP2040 is built around the RP2040, from the RP2040/RP2350 family.

How big is the Zayalan-RP2040 PCB?

The Zayalan-RP2040 measures 21 × 51 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Zayalan-RP2040?

35 components, from 19 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Zayalan-RP2040 design files?

From the sasukeop108/Zayalan-RP2040 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Zayalan-RP2040 design in my own project?

The repository has no license, so all rights stay with sasukeop108. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Zayalan-RP2040 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
