About the Pico dram tester PCB

Pico dram tester is an open source RP2040/RP2350 PCB design by schlae, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 100 × 100 mm, with 47 components from 29 distinct parts.

Its main chip is the PICO2, from the RP2040/RP2350 family. Other key parts include the 4116, 4132, 4164/41128/41256, 4416/4464 and 44256. By type, the board carries 16 resistors, 10 capacitors, 9 ICs, 5 test points, 3 connectors and 2 switches.

It belongs with the displays & leds and retro computing designs in this gallery.

From the project

Raspberry Pi Pico 2 Vintage DRAM Tester

Having trouble with your old-school DIP dynamic RAM chips? Here's a simple RAM tester that will give you a definitive pass or fail for a variety of chips.

New rev 3 now available! New features include:

USB-C power connector with PD resistors Universal encoder wiring supports Bourns and Panasonic style encoders * Through-hole footprint for the Pico2 to ease soldering

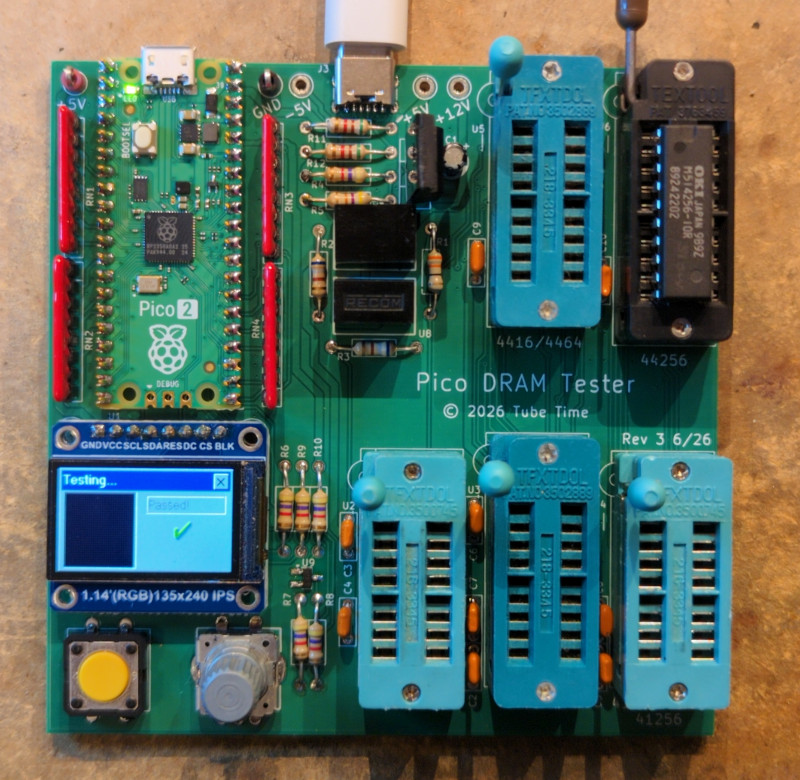

Pico dram tester, from the project README — From the project README

Main components on the Pico dram tester

PICO2 4116 4132 4164/41128/41256 4416/4464 44256 DCDC_ITR03 RFM-0505S APX803S

Pico dram tester bill of materials (BOM)

47 components, 29 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	PICO2	Pico2_PTH	U1
1	4116	DIP_Socket-16_W4.3_W5.08_W7.62_W10.16_W10.9_3M_216-3340-00-0602J	U2
1	4132	DIP_Socket-18_W4.3_W5.08_W7.62_W10.16_W10.9_3M_218-3341-00-0602J	U3
1	4164/41128/41256	DIP_Socket-16_W4.3_W5.08_W7.62_W10.16_W10.9_3M_216-3340-00-0602J	U4
1	4416/4464	DIP_Socket-18_W4.3_W5.08_W7.62_W10.16_W10.9_3M_218-3341-00-0602J	U5
1	44256	DIP_Socket-20_W4.3_W5.08_W7.62_W10.16_W10.9_3M_220-3342-00-0602J	U6
1	DCDC_ITR03	DCDC_ITR03	U7
1	RFM-0505S	DCDC_ITR03	U8
1	APX803S	SOT-23_Handsoldering	U9
1	781-SUP53P06-20-E3 SUP53P06-20-E3 or equiv	TO-220-3_Vertical	Q1
1	TFT 4383	ADAFRUIT_4383	J1
1	MRD_114_IPS_LCD_8P mrd_114_ips_lcd_8p	PinHeader_1x08_P2.54mm_Vertical	J2
1	179-UJCHGSMT1P6TR POWER	USB_C_Receptacle_GCT_USB4125-xx-x-0190_6P_TopMnt_Horizontal	J3
1	TYPE	SolderJumper-2_P1.3mm_Open_Pad1.0x1.5mm	JP1
1	RotaryEncoder_Switch	ENCODER_SW_UNIV	SW1
1	653-B3F-4005 BACK	SW_SPST_Omron_B3F-50xx	SW2
1	534-5005 5V	TestPoint_Keystone_5005-5009_Compact	TP1
1	534-5006 GND	TestPoint_Keystone_5005-5009_Compact	TP2
1	12V	TestPoint_Keystone_5005-5009_Compact	TP3
1	534-5007 -5V	TestPoint_Keystone_5005-5009_Compact	TP4

Show 9 more

Qty	Part	Footprint	Refs
1	5VIN	TestPoint_Keystone_5005-5009_Compact	TP5
1	10UF 10uF	CAPAE200P500X1100	C1
9	0.1UF 0.1uF	CAPAC200	C2, C3, C4, C5, C6, C7, C8, C9 +1
1	33	RESA500	R1
2	680	RESA500	R2, R3
6	4.7K	RESA500	R4, R6, R7, R8, R9, R10
1	100	RESA500	R5
2	5.1K	RESA500	R11, R12
4	33	R_Array_SIP8	RN1, RN2, RN3, RN4

Pico dram tester design files

The KiCad project lives in the schlae/pico-dram-tester repository on GitHub; these links point at the commit this page was built from.
