Dna puzzle electronics
About the Dna puzzle electronics PCB
Dna puzzle electronics is an open source AVR/Arduino PCB design by scimusmn, published on GitHub. It is a 2-layer board measuring 127 × 66 mm, with 29 components from 9 distinct parts.
Its main chip is the ATtiny84-20PU, from the AVR/Arduino family. Other key parts include the Adafruit_Metro_Mini. By type, the board carries 8 ICs, 7 diodes, 7 resistors and 6 connectors.
From the project
Iowa Science Rover - Electronics ================================
Iowa Science Rover - Electronics ================================

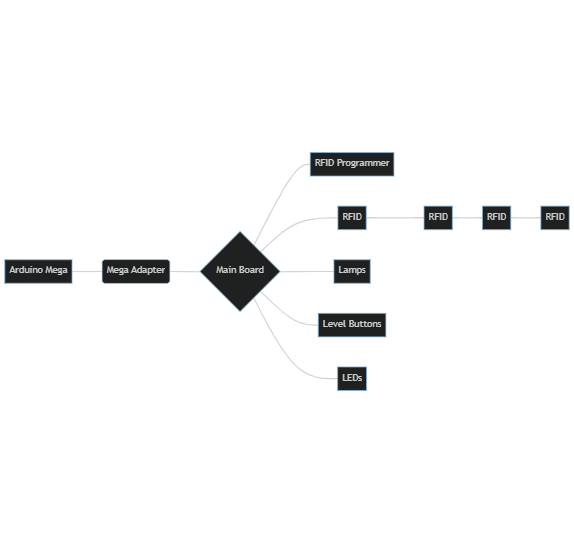

Due to the myriad inputs and outputs that need to be managed, the electronics of the kiosk have been split into a constellation of connected boards rather than using a single monolithic board. The scheme of connections is as follows:
Arduino Mega: This is an ATmega2560-based microcontroller, used as the central processor for the kiosk. Mega Adapter: This provides a convenient 40-pin ribbon cable connection between the Arduino Mega and the main board. It carries power from the main board to the Arduino. Main Board: The heart…
Main components on the Dna puzzle electronics
Dna puzzle electronics bill of materials (BOM)
29 components, 9 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 7 | ATtiny84-20PU | DIP-14_W7.62mm | U1, U2, U3, U4, U5, U6, U7 |
| 1 | Adafruit_Metro_Mini | Metro-Mini | U8 |
| 3 | Conn_01x03 | Molex_KK-254_AE-6410-03A_1x03_P2.54mm_Vertical | J1, J2, J6 |
| 1 | Conn_01x02 | Molex_KK-254_AE-6410-02A_1x02_P2.54mm_Vertical | J3 |
| 1 | SMM_Mega_Shield_Connector | PinHeader_2x20_P2.54mm_Vertical | J4 |
| 1 | Conn_02x06_Odd_Even | PinHeader_2x06_P2.54mm_Vertical | J5 |
| 1 | R_POT | Potentiometer_ACP_CA6-H2,5_Horizontal | RV1 |
| 7 | LED | LED_D3.0mm | D1, D2, D3, D4, D5, D6, D7 |
| 7 | R | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1, R2, R3, R4, R5, R6, R7 |
Dna puzzle electronics design files
The KiCad project lives in the scimusmn/iowa-rover repository on GitHub; these links point at the commit this page was built from.
Dna puzzle electronics: common questions
What microcontroller does the Dna puzzle electronics use?
The Dna puzzle electronics is built around the ATtiny84-20PU, from the AVR/Arduino family.
How big is the Dna puzzle electronics PCB?
The Dna puzzle electronics measures 127 × 66 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Dna puzzle electronics?
29 components, from 9 distinct parts. The full bill of materials is listed on this page.
Where can I download the Dna puzzle electronics design files?
From the scimusmn/iowa-rover repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Dna puzzle electronics design in my own project?
The repository has no license, so all rights stay with scimusmn. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Dna puzzle electronics without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
