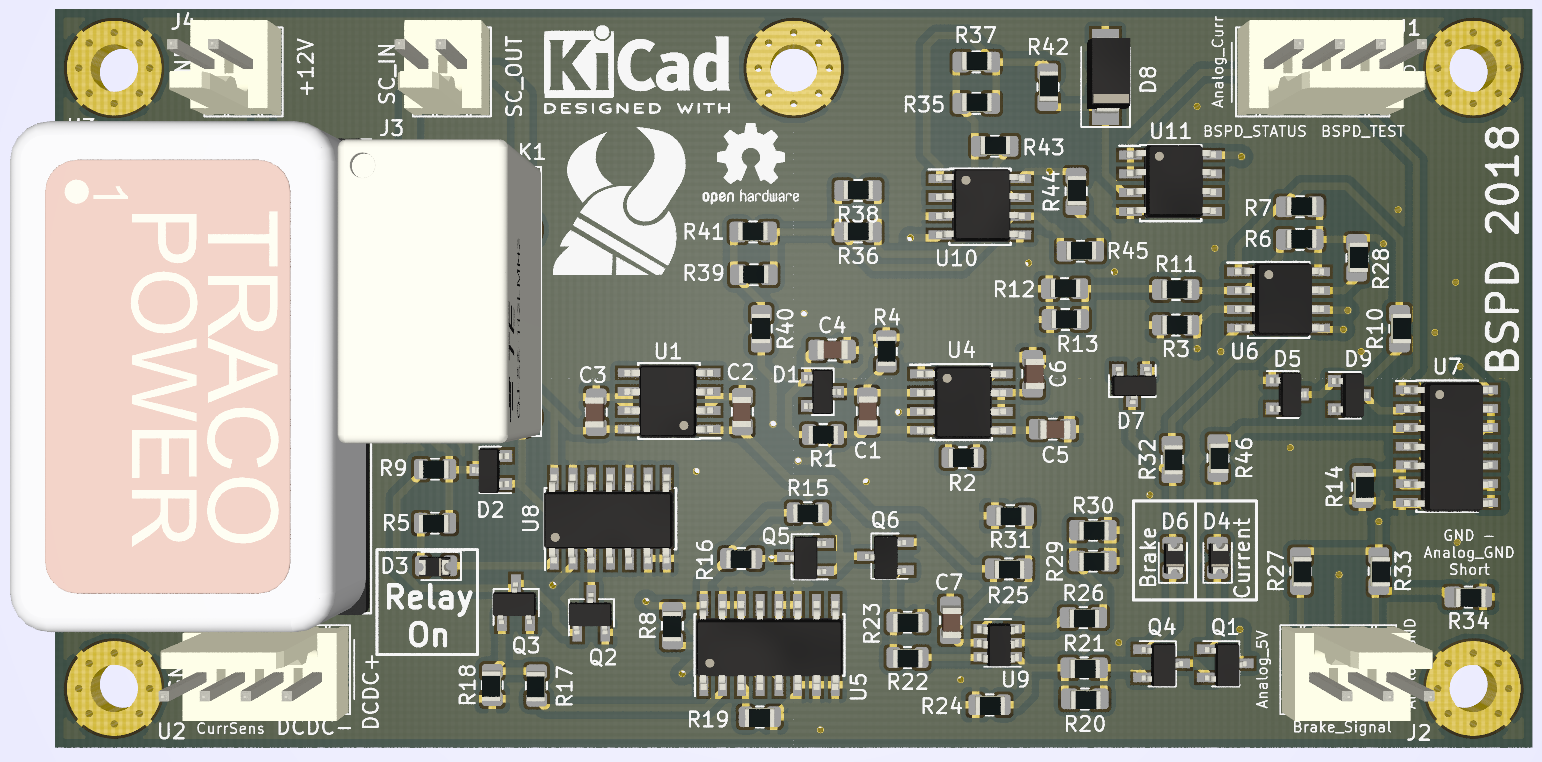

BSPD PCB layout, top view — open source board by SDU-Vikings

About the BSPD PCB

BSPD is an open source PCB design by SDU-Vikings, published on GitHub under the CC0-1.0 license. It is a 2-layer board measuring 100 × 50 mm, with 84 components from 41 distinct parts.

Other key parts include the L78L05_SO8, HAS_100-S, TEN8-1223, LM555 and CD4043B. By type, the board carries 46 resistors, 11 ICs, 9 diodes, 7 capacitors, 6 transistors and 4 connectors.

It belongs with the test & measurement designs in this gallery.

From the project

Formula Student -- Brake System Plausibility Device

Formula Student Ruleset: FS-Rules2018V1.1 This BSPD passed scrutineering at Formula Student UK 2018 Please let us know if you used this design for your car or if you have used it and made useful improvements to it Also if you have any questions please let us know --> SDU-Vikings

The project is made in KiCad. Get it here --> KiCad 5.0 The schematic layout and PCB layout is found in the KiCad/ subfolder.

BSPD, from the project README
From the project README

Main components on the BSPD

L78L05_SO8HAS_100-STEN8-1223LM555CD4043BLM2903HEF4071CD4041UBLTC6994TL072

BSPD bill of materials (BOM)

84 components, 41 distinct parts.

QtyPartRefs
1
L78L05_SO8
U1
1
HAS_100-S
U2
1
TEN8-1223
U3
1
LM555
U4
1
CD4043B
U5
1
LM2903
U6
1
HEF4071
U7
1
CD4041UB
U8
1
LTC6994
U9
2
TL072
U10, U11
2
MMBT3904
Q1, Q4
4
2N7002
Q2, Q3, Q5, Q6
1
Conn_01x04
J1
1
Conn_01x03
J2
2
Conn_01x02
J3, J4
1
TE-OJ-SS-112LMH2
K1
5
BAS16LT1
D1, D2, D5, D7, D9
3
LED
D3, D4, D6
1
10V
D8
1
1µ
C1
Show 21 more
QtyPartRefs
2
0,1 µF
C2, C7
1
0,33 µF
C3
2
4,7µ
C4, C6
1
100n
C5
11
10k
R1, R2, R4, R5, R9, R14, R15, R16 +3
2
100k
R3, R6
12
10k
R7, R8, R10, R27, R28, R32, R33, R36 +4
3
2,2k
R11, R13, R41
1
220
R12
2
33
R17, R22
2
3,3k
R20, R21
1
680
R24
1
1M
R25
1
68k
R26
1
33k
R29
1
150k
R30
1
680k
R31
1
0
R34
1
220k
R35
3
22k
R37, R39, R40
2
15k
R44, R45

BSPD design files

The KiCad project lives in the SDU-Vikings/BSPD repository on GitHub; these links point at the commit this page was built from.

BSPD: common questions

How big is the BSPD PCB?

The BSPD measures 100 × 50 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the BSPD?

84 components, from 41 distinct parts. The full bill of materials is listed on this page.

Where can I download the BSPD design files?

From the SDU-Vikings/BSPD repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the BSPD design in my own project?

Yes, under the terms of its CC0-1.0 license, which SDU-Vikings chose for the repository.
