WindSensor rev1c PCB layout, top view — open source board by SensorsINI

About the WindSensor rev1c PCB

WindSensor rev1c is an open source PCB design by SensorsINI, published on GitHub. It is a 2-layer board measuring 20 × 20 mm, with 13 components from 10 distinct parts.

Other key parts include the SDP320x21, SDP320x22, SDP320x23 and PCA9632DP2_118. By type, the board carries 4 ICs, 4 test points, 2 resistors, 1 connector, 1 LED and 1 capacitor.

It belongs with the power & battery and sensors designs in this gallery.

From the project

Code for Autonomous sail boat

This is the Argo Wind Sensor PCB and 3D printed case design, including the boat hull housing cable gland entry and the replacement mast base part that increases the mast clearance over the deck to allow room for the cable gland. The wind sensor is designed to measure wind speed and direction for the Argo sailboat.

It is based on Sensiorion reference design (since removed from sensorion because the page could not be migrated). Sensirion kindly supplied the step file as a starting point for the current design. The current design is combined with a mast mounting part that clamps to the mast…

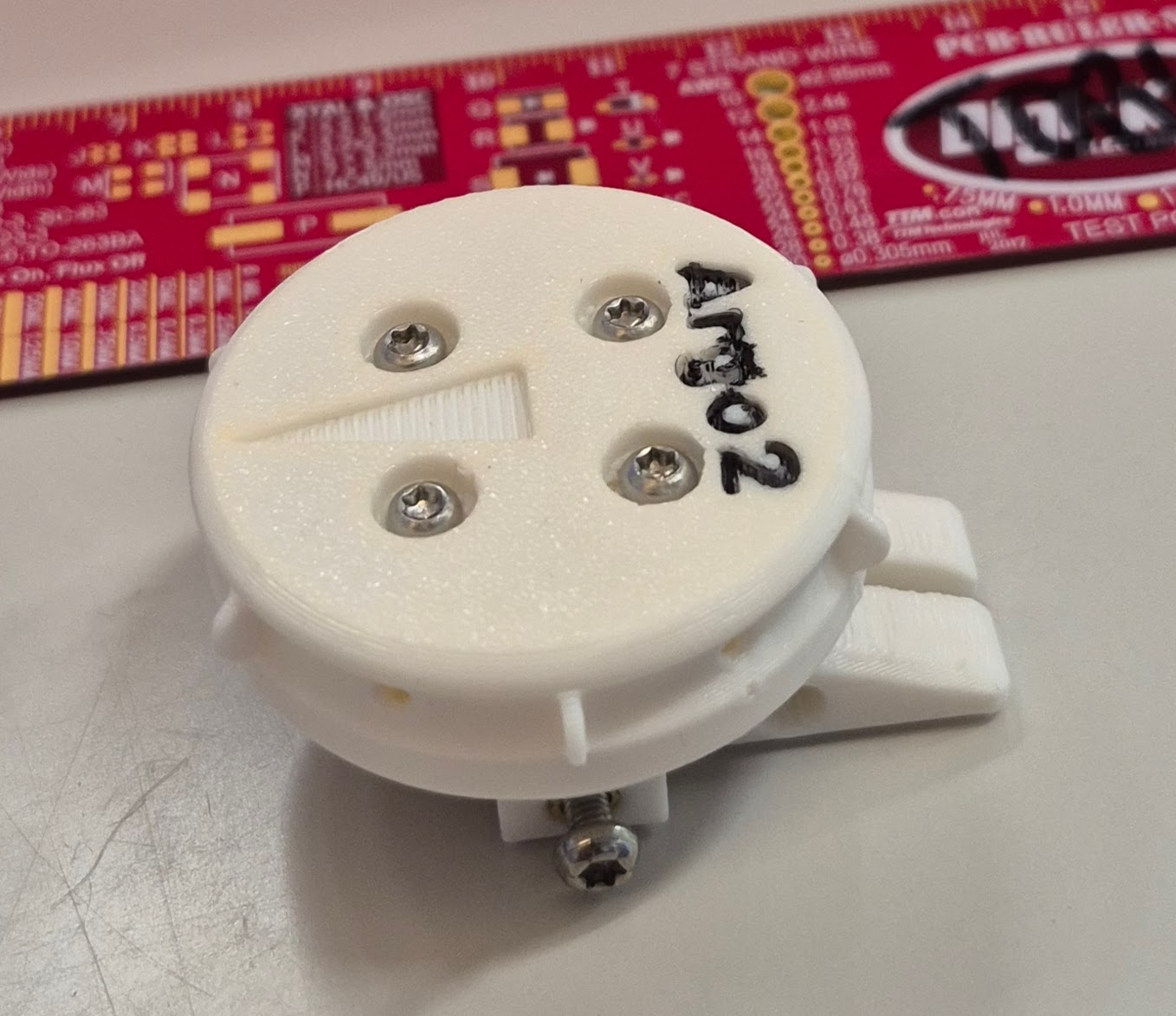

WindSensor rev1c, from the project README
From the project README

Main components on the WindSensor rev1c

SDP320x21SDP320x22SDP320x23PCA9632DP2_118

WindSensor rev1c bill of materials (BOM)

13 components, 10 distinct parts.

QtyPartRefs
1
SDP320x21
U1
1
SDP320x22
U2
1
SDP320x23
U3
1
PCA9632DP2_118
U4
1
Conn_I2C_Molex_705450003
J1
4
TestPoint_Probe_autonamed
TP1, TP2, TP3, TP4
1
QBLP679-RGBXW
LED1
1
22u
C1
1
1.2k
R1
1
2.7k
R2

WindSensor rev1c design files

The KiCad project lives in the SensorsINI/argo repository on GitHub; these links point at the commit this page was built from.

WindSensor rev1c: common questions

How big is the WindSensor rev1c PCB?

The WindSensor rev1c measures 20 × 20 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the WindSensor rev1c?

13 components, from 10 distinct parts. The full bill of materials is listed on this page.

Where can I download the WindSensor rev1c design files?

From the SensorsINI/argo repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the WindSensor rev1c design in my own project?

The repository has no license, so all rights stay with SensorsINI. Use it as a reference, and ask the author before reusing the design.
