Argo v9-stable rev4

SensorsINI·argo·pcb/argo-v9-stable/argo-v9-stable-rev4/argo-v9-stable-rev4.kicad_pcb

Argo v9-stable rev4 PCB layout, top view — open source board by SensorsINI
Simulate this board

About the Argo v9-stable rev4 PCB

Argo v9-stable rev4 is an open source PCB design by SensorsINI, published on GitHub. It is a 2-layer board measuring 94.8 × 67.2 mm, with 94 components from 58 distinct parts.

Other key parts include the MP2672GD-0000, orange_pi_zero_2w_2GB, MAX11612, CH221K and TXS0102. By type, the board carries 36 resistors, 9 ICs, 7 LEDs, 7 capacitors, 5 connectors and 3 diodes.

It belongs with the power & battery, sensors and rf & radio designs in this gallery.

From the project

Code for Autonomous sail boat

This directory contains all the printed circuit board (PCB) design files, libraries, and documentation for the Argo autonomous sailboat project.

The design was done with KiCad version 9 stable. It is important to use the stable KiCad version, not the development release, since KiCad will not open files from later versions! - Download KiCad stable here

Outstanding bugs: The rev4 PCB requires soldering a single 10k resistor to ground from the buzzer testpoint to prevent buzzer activation during boot. This resistor should be added to rev 5.

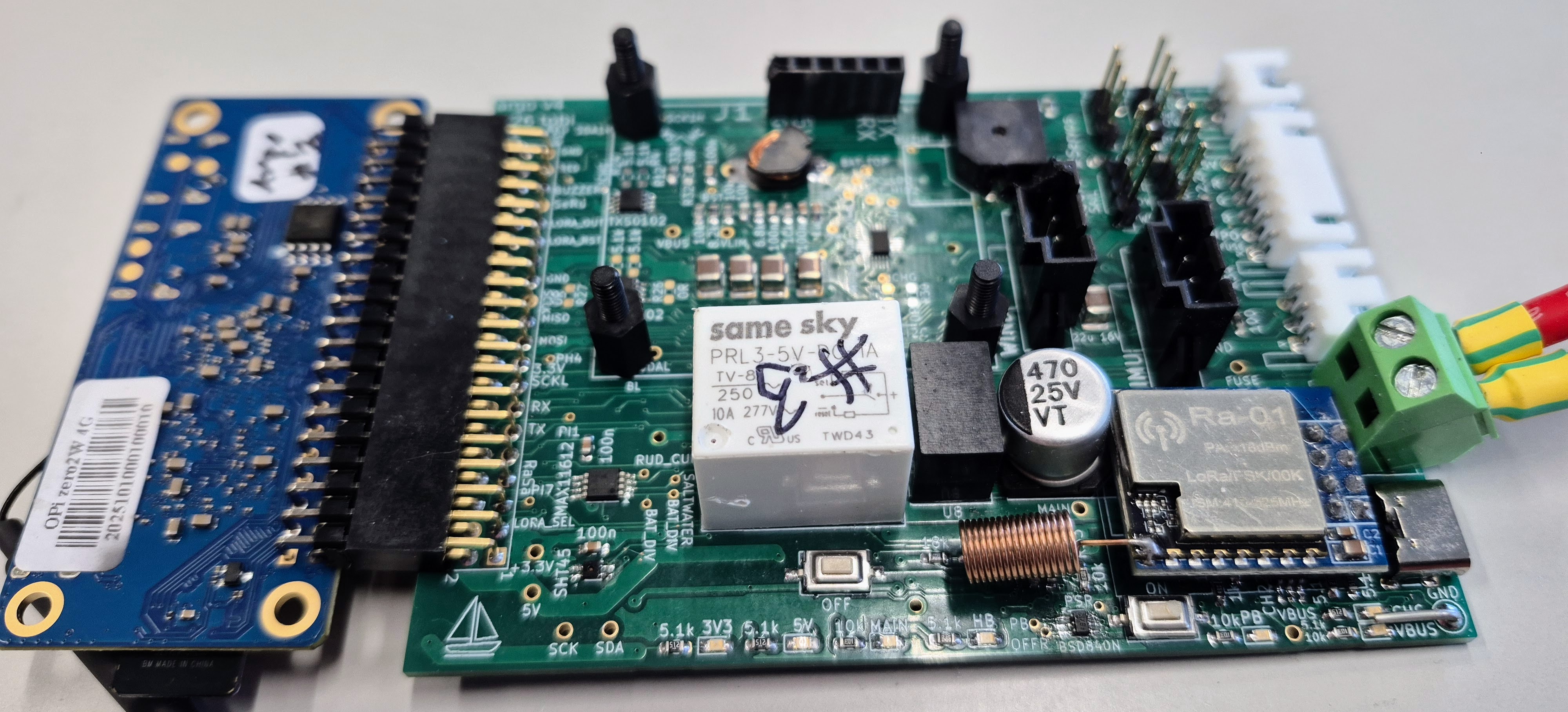

Argo v9-stable rev4, from the project README
From the project README

Main components on the Argo v9-stable rev4

MP2672GD-0000orange_pi_zero_2w_2GBMAX11612CH221KTXS0102SHT45RA-01TSR_1-2450

Argo v9-stable rev4 bill of materials (BOM)

94 components, 58 distinct parts.

QtyPartRefs
1
MP2672GD-0000
IC2
1
orange_pi_zero_2w_2GB
U1
1
MAX11612
U2
1
CH221K
U3
2
TXS0102
U4, U7
1
SHT45
U5
1
RA-01
U6
1
TSR_1-2450
U8
2
BSD840N
Q1, Q2
1
Sparkfun_NEO-N9M-SMA
J1
1
USB4125-GF-A
J2
1
LED_power_button_RGB_LED
J3
2
Conn_I2C_Molex_705450003
J4, J5
1
5.08 terminal block
BATTERY1
1
JST_XH2
BAT_BAL1
5
22u 16V
C_{5V}1, C_{BAT}1, C_{IN}1, C_{SYS}1, C_{SYS}2
1
100n
C_{BST}1
1
1u
C_{VCC}1
1
Fuse
F2
1
Conn_01x01_Pin
GND1
Show 38 more
QtyPartRefs
1
PRL3-5V-DC-1A
K1
1
CMI-9653S-SMT
LS1
2
RUDDER
RADIO_RUDDER1, SERVO_RUDDER1
2
SAIL
RADIO_SAIL1, SERVO_SAIL1
1
1k
R_{221K}1
1
10k
R_{221K}2
2
5.1k
R_{CC1}1, R_{CC2}1
1
JST_XH2
SALTWATER1
1
ON
SW1
1
OFF
SW2
1
3V3
3v3v1
1
5V
5V1
1
MAIN
BAT1
1
CHG
CHG1
1
HB
HB1
1
PB
PB1
1
VBUS
VBUS1
1
CZRU52C3V3
D1
2
TS4148_RCG
D2, D3
1
2.5u
L1
1
10uF
C1
4
100n
C3, C4, C5, C7
1
1u 25V
C6
1
1000uF
C8
1
150k
R1
11
10k
R2, R8, R10, R13, R15, R16, R17, R18 +3
1
2.7k
R3
8
5.1k
R4, R14, R19, R20, R24, R28, R29, R35
1
27k
R5
1
18k
R6
1
100
R7
2
1R
R7A1, R7A2
1
8.2k
R9
1
6.8k
R11
1
33k
R12
1
2.2k
R23
1
15k
R25
5
0R
R26, R27, R30, R31, R32

Argo v9-stable rev4 design files

The KiCad project lives in the SensorsINI/argo repository on GitHub; these links point at the commit this page was built from.

Argo v9-stable rev4: common questions

How big is the Argo v9-stable rev4 PCB?

The Argo v9-stable rev4 measures 94.8 × 67.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Argo v9-stable rev4?

94 components, from 58 distinct parts. The full bill of materials is listed on this page.

Where can I download the Argo v9-stable rev4 design files?

From the SensorsINI/argo repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Argo v9-stable rev4 design in my own project?

The repository has no license, so all rights stay with SensorsINI. Use it as a reference, and ask the author before reusing the design.
