Nif-T PCB layout, top view — open source ESP32 board by SharKingStudios

About the Nif-T PCB

Nif-T is an open source ESP32 PCB design by SharKingStudios, published on GitHub under the MIT license. It is a 4-layer board measuring 100 × 100 mm, with 103 components from 37 distinct parts.

Its main chip is the ESP32-WROOM-32E(4MB), from the ESP32 family. Other key parts include the LAN8720A-CP-TR, DP1435-5V, CH340C, LM2596SX-5.0/NOPB and AMS1117-3.3. By type, the board carries 22 diodes, 20 capacitors, 15 resistors, 11 ICs, 8 transistors and 8 connectors.

It belongs with the iot & wireless designs in this gallery.

From the project

An all in one smart home automation board!

Main characters: - MCU: ESP32-WROOM-32E - Ethernet PHY: LAN8720A (RMII, external 50 MHz oscillator) - Power over Ethernet: IEEE 802.3af PoE (on-board PD + isolation) - Relays: 8× PCB-mount power relays - RGB LEDs: 10× SK6812 Mini - Buzzer: On-board piezo - User Input: Programmable user button - Connectivity: Ethernet (primary), USB-UART for flashing/debug - Power: PoE-powered with on-board regulation for ESP32 + peripherals - Misc: Boot circuitry, reset logic, pull-ups, decoupling, and other necessary magic

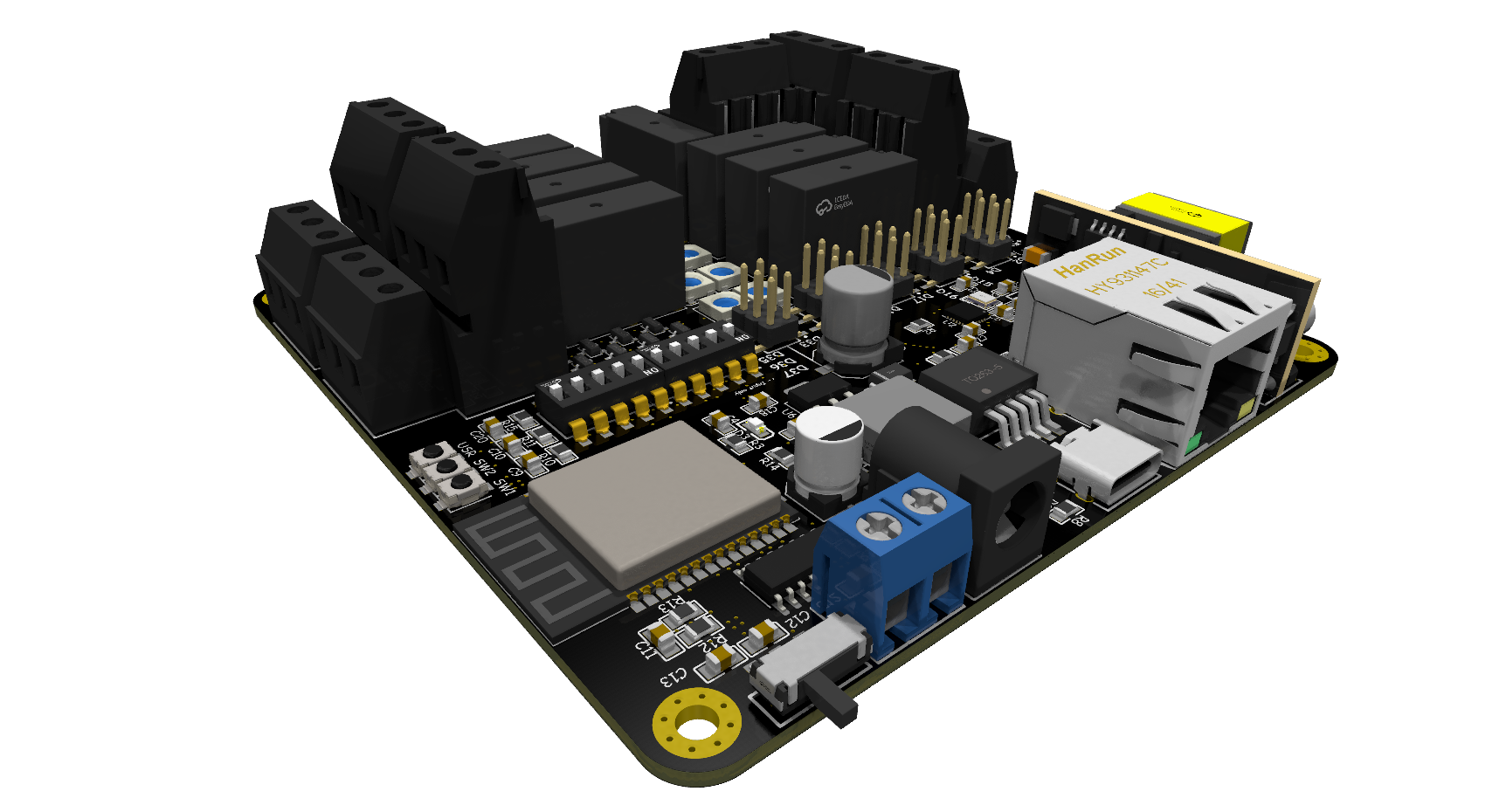

Nif-T, from the project README
From the project README

Main components on the Nif-T

ESP32-WROOM-32E(4MB)LAN8720A-CP-TRDP1435-5VCH340CLM2596SX-5.0/NOPBAMS1117-3.3DB128B-5.08-3P-BK-S

Nif-T bill of materials (BOM)

103 components, 37 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-WROOM-32E(4MB)
U1
1
LAN8720A-CP-TR
U2
1
DP1435-5V
U3
1
CH340C
U4
1
LM2596SX-5.0/NOPB
U5
1
AMS1117-3.3
U6
5
DB128B-5.08-3P-BK-S
U7, U8, U9, U10, U11
8
S8050
Q1, Q2, Q3, Q4, Q5, Q6, Q7, Q8
1
X322525MOB4SI
X1
1
Barrel_Jack
J1
1
Conn_01x02
J2
5
Conn_02x03_Odd_Even
J3, J4, J5, J6, J7
1
USB_C_Plug
P1
1
FST-1230
BUZZER1
1
HY931147C
RJ1
8
G5NB-1A-E-DC5V
RLY1, RLY2, RLY3, RLY4, RLY5, RLY6, RLY7, RLY8
3
SW_Push
SW1, SW2, SW3
1
SW_SPDT
SW4
2
DSIC-05-LS-GER
SW5, SW6
3
SS54_C22452
D1, D2, D22
Show 17 more
QtyPartRefs
1
LED
D3
10
SK6812
D4, D5, D6, D7, D8, D9, D10, D11 +2
8
1N4148W-E3-08
D14, D15, D16, D17, D18, D19, D20, D21
1
CYA1040-33UH
L1
1
BLM21PG221SN1D
L2
3
0.22uF
C1, C2, C3
7
0.1uF
C4, C5, C7, C9, C10, C13, C20
3
1uF
C6, C8, C11
5
10uF
C12, C14, C16, C17, C18
1
RVT1H470M0607
C15
1
RVT1E331M0810
C19
1
12.1k
R1
1
22
R2
6
10k
R3, R10, R11, R12, R13, R15
4
49.9
R4, R5, R6, R7
2
5.1k
R8, R9
1
200
R14

Nif-T design files

The KiCad project lives in the SharKingStudios/Nif-T repository on GitHub; these links point at the commit this page was built from.

Nif-T: common questions

What microcontroller does the Nif-T use?

The Nif-T is built around the ESP32-WROOM-32E(4MB), from the ESP32 family.

How big is the Nif-T PCB?

The Nif-T measures 100 × 100 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Nif-T?

103 components, from 37 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Nif-T design files?

From the SharKingStudios/Nif-T repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Nif-T design in my own project?

Yes, under the terms of its MIT license, which SharKingStudios chose for the repository.

Can I test firmware for the Nif-T without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
