Open-FlipDisk

shashwtd·Open-FlipDisk·PCB/OpenFlipdisc.kicad_pcb

Open-FlipDisk PCB layout, top view — open source Raspberry Pi board by shashwtd
Simulate this board

About the Open-FlipDisk PCB

Open-FlipDisk is an open source Raspberry Pi PCB design by shashwtd, published on GitHub. It is a 2-layer board measuring 111.6 × 68.8 mm, with 47 components from 25 distinct parts.

Its main chip is the RaspberryPi_Pico_W, from the Raspberry Pi family. Other key parts include the AP63205WU-7, 74HC595 and TB6612FNG. By type, the board carries 20 capacitors, 9 ICs, 4 connectors, 4 switches, 4 diodes and 3 resistors.

From the project

an open source 5x5 flip-dot display module built around custom electromagnetic flip discs, a Raspberry Pi Pico 2 W, and a custom driver PCB.

an open source 5x5 flip-dot display module built around custom electromagnetic flip discs, a Raspberry Pi Pico 2 W, and a custom driver PCB.

I started this because small flip-dot modules are hard to find, and the polished commercial options from companies like AlfaZeta are too expensive for this project. this repository has all the work ive done on this project in my attempt to make my own flip dot display.. it also contains a PCB which can be used to drive the flipdots individually

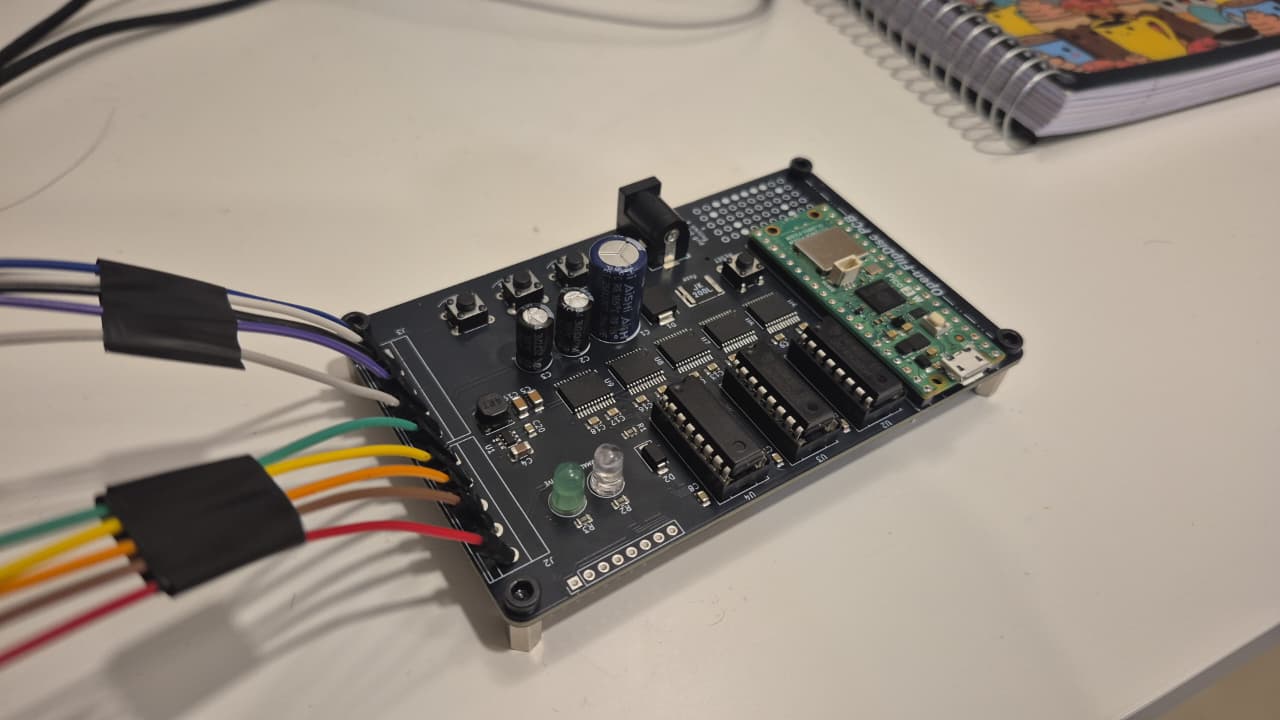

Open-FlipDisk, from the project README
From the project README

Main components on the Open-FlipDisk

AP63205WU-774HC595TB6612FNGRaspberryPi_Pico_W

Open-FlipDisk bill of materials (BOM)

47 components, 25 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
AP63205WU-7
DIODES(美台)
U1
3
74HC595
U2, U3, U4
5
TB6612FNG
U5, U6, U7, U8, U9
1
RaspberryPi_Pico_W
A1
1
Barrel_Jack
J1
2
SCREW_TERMINAL_01X05
Screw_Terminal_01x05
J2, J3
1
CONN_01X08
Conn_01x08
J4
1
Fuse T2A
F1
1
CLEAR
SW1
1
FUNC1
SW2
1
FUNC2
SW3
1
RESET
SW4
1
SS34
D1
1
SS14
D2
1
D_PWR (green)
D3
1
D_ACT (red)
D4
1
4.7UH
4.7uH
L1
1
1000UF
1000uF
C1
2
100UF
100uF
C2, C3
1
10UF
10uF
C4
Show 5 more
QtyPartRefs
2
22UF
22uF
C5, C19
13
0.1UF
0.1uF
C6, C7, C8, C9, C10, C11, C12, C13 +5
1
100NF
100nF
C20
1
10K
10k
R1
2
330R
R2, R3

Open-FlipDisk design files

The KiCad project lives in the shashwtd/Open-FlipDisk repository on GitHub; these links point at the commit this page was built from.

Open-FlipDisk: common questions

What microcontroller does the Open-FlipDisk use?

The Open-FlipDisk is built around the RaspberryPi_Pico_W, from the Raspberry Pi family.

How big is the Open-FlipDisk PCB?

The Open-FlipDisk measures 111.6 × 68.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Open-FlipDisk?

47 components, from 25 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Open-FlipDisk design files?

From the shashwtd/Open-FlipDisk repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Open-FlipDisk design in my own project?

The repository has no license, so all rights stay with shashwtd. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Open-FlipDisk without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Raspberry Pi firmware against it before you order a PCB.
