OutFox PCB layout, top view — open source AVR/Arduino board by ShaunPrice

About the OutFox PCB

OutFox is an open source AVR/Arduino PCB design by ShaunPrice, published on GitHub under the Apache-2.0 license. It is a 2-layer board measuring 96.5 × 96.5 mm, with 88 components from 42 distinct parts.

Its main chip is the ATtiny85V-10SU, from the AVR/Arduino family. Other key parts include the L78L05_TO92, Pololu_5V_Regulator_D24V6F5, LM317, MAIX_Bit and DS3231MZ. By type, the board carries 32 diodes, 26 resistors, 8 capacitors, 7 ICs, 7 connectors and 4 transistors.

From the project

Fox and other nuisance animal detection and frightening device. Uses cameras and AI to detect and identify only the nuisance animals.

This is the working prototype (PCB not validated) for the solution. It uses MobileNet AI model as it already detects many species of foxes, dogs and wolves.

Any assistance in this project is welcome!!!

Fox and other nuisance animal detection and frightening device. Uses cameras and AI to detect and identify only the nuisance animals.

This is a Work in Progress # Notes for using the Seeed Studio MAIX Bit and the Kendryte K210

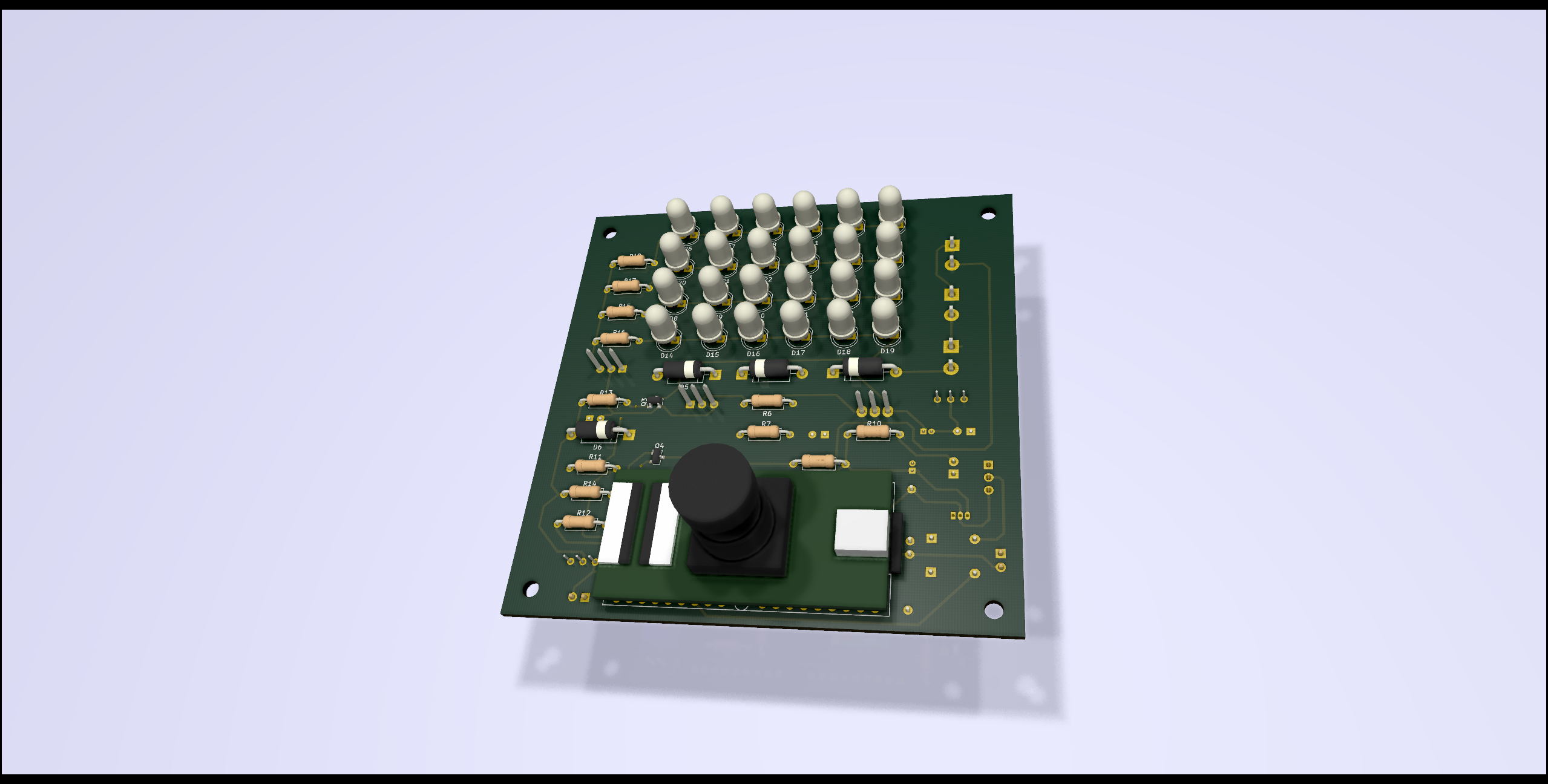

OutFox, from the project README
From the project README

Main components on the OutFox

L78L05_TO92Pololu_5V_Regulator_D24V6F5LM317MAIX_BitDS3231MZLM7812ATtiny85V-10SU

OutFox bill of materials (BOM)

88 components, 42 distinct parts.

QtyPartRefs
1
L78L05_TO92
U1
1
Pololu_5V_Regulator_D24V6F5
U2
1
LM317
U3
1
MAIX_Bit
U4
1
DS3231MZ
U5
1
LM7812
U6
1
ATtiny85V-10SU
U7
3
IRLML2060
Q1, Q3, Q4
1
TIP122
Q2
1
Solar
J1
1
IR Motion Sensor
J2
1
Siren
J3
1
Maix GPIO
J4
1
RTC Batt
J5
1
Battery
J6
1
ATTINY85 Prog
J7
1
RXEF090 PTC
F1
1
PWR ON
JP1
1
RTC PROG
JP2
1
5V Int Power
JP3
Show 22 more
QtyPartRefs
2
1N4148
D1, D2
2
1N4001
D3, D4
1
12V
D5
1
15V
D6
1
LED
D7
24
IR LED
D8, D9, D10, D11, D12, D13, D14, D15 +16
1
3W LED (1 to 3 in series)
D30-D1
2
0.1uF
C1, C6
2
220uF
C2, C7
3
100nF low leakage
C3, C5, C8
1
1000uF
C4
5
10k
R1, R3, R6, R20, R22
6
1k
R2, R5, R8, R15, R18, R19
1
5k
R4
1
220
R7
2
100k
R9, R10
1
LDR07
R11
1
200k
R12
3
2k
R13, R16, R17
1
8.2k
R14
4
47
R21, R23, R24, R25
1
5.2R or 15R
R26

OutFox design files

The KiCad project lives in the ShaunPrice/OutFox repository on GitHub; these links point at the commit this page was built from.

OutFox: common questions

What microcontroller does the OutFox use?

The OutFox is built around the ATtiny85V-10SU, from the AVR/Arduino family.

How big is the OutFox PCB?

The OutFox measures 96.5 × 96.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the OutFox?

88 components, from 42 distinct parts. The full bill of materials is listed on this page.

Where can I download the OutFox design files?

From the ShaunPrice/OutFox repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the OutFox design in my own project?

Yes, under the terms of its Apache-2.0 license, which ShaunPrice chose for the repository.

Can I test firmware for the OutFox without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
