About the SCSIknifePocket PCB

SCSIknifePocket is an open source RP2040/RP2350 PCB design by Siliconinsid, published on GitHub under the CERN-OHL-S-2.0 license. It is a board, with 90 components from 39 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the W25Q16JV, RT5796AHGJ5, SN74LVT245BPWR and SN74LVT125PWR. By type, the board carries 47 resistors, 20 capacitors, 7 ICs, 4 test points, 3 relays and 2 diodes.

It belongs with the retro computing designs in this gallery.

From the project

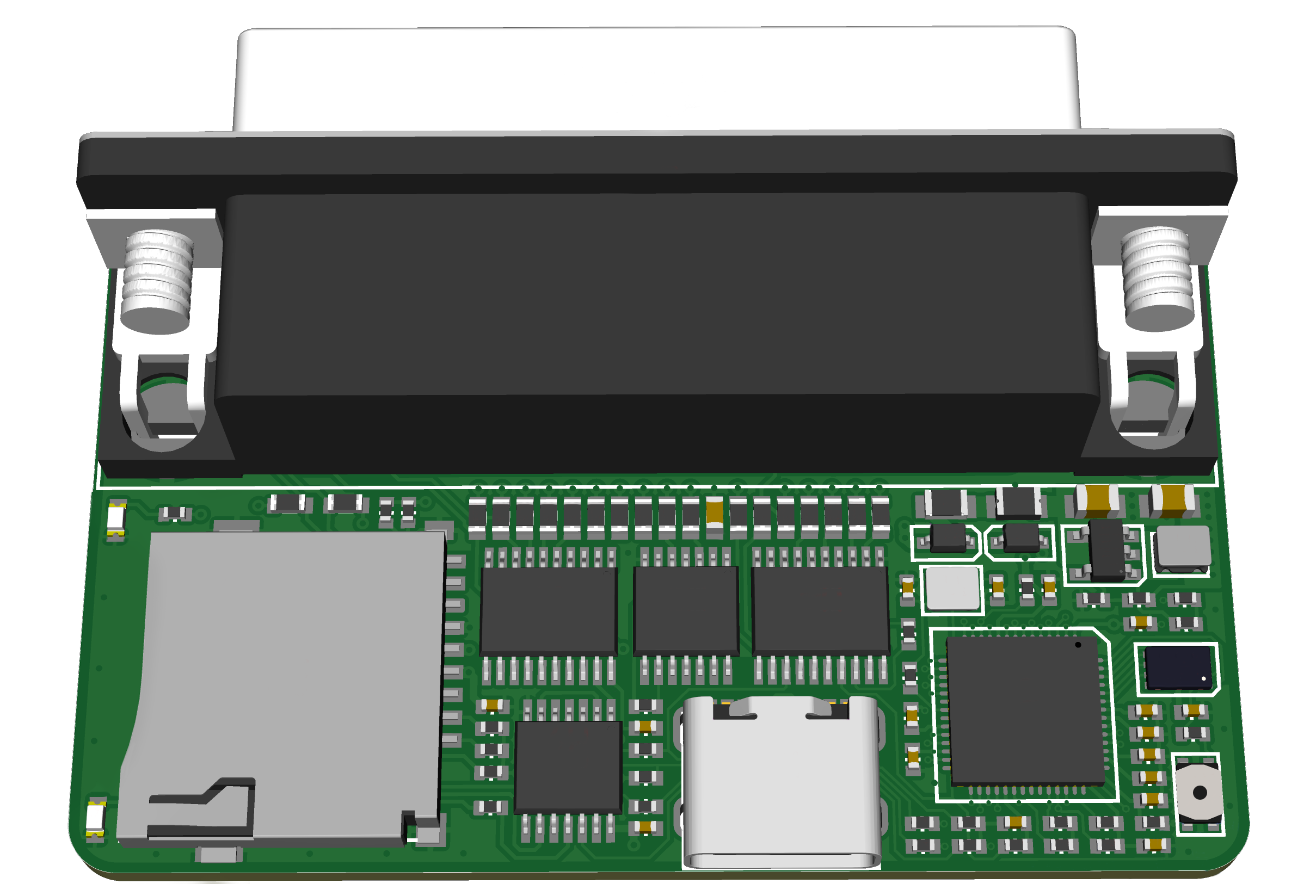

SCSIknife Pocket - The SCSI jump drive

SCSIknife Pocket is a ZuluSCSI™ PICO OSHW derivative, compatible with the ZuluSCSI™ PICO firmware.

SCSIknife Pocket is an extremely compact SCSI disk drive emulator designed to be plugged externally to a computer or SCSI enabled device.

SCSIknife Pocket require 5.0VDC ± 0.5V which can be supplied by the SCSI termination or USB-C. SCSIknife Pocket is available in DB25, HD50 or Centronics50 version.

Main components on the SCSIknifePocket

RP2040W25Q16JVRT5796AHGJ5SN74LVT245BPWRSN74LVT125PWR

SCSIknifePocket bill of materials (BOM)

90 components, 39 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
RP2040
Raspberry Pi
U1
1
W25Q16JV
W25Q16
Winbond
U2
1
RT5796AHGJ5
RT5796A
Richtek
U3
2
SN74LVT245BPWR
SN74LVT245
Texas Instruments
U4, U6
2
SN74LVT125PWR
74LVT125
Texas Instruments
U5, U7
1
12MHz
Y1
1
150060VS75000
POWER
Würth Elektronik
DL1
1
150060YS75000
ACTIVITY
Würth Elektronik
DL2
1
MF-PSML075/12-2
750mA
Bourns
F1
1
12402012E212A
USB-C 14-pin
Amphenol
K1
1
MSD-1-A
MicroSD Card
CUI Devices
K2
1
DB25-PL-24
DB25 Male
Adam Tech
K3
1
EVP-BL2A1B000
Bootloader
Panasonic
S1
1
IOVDD
TP1
1
SWD
TP2
1
SWCLK
TP3
1
VSS
TP4
2
B5819WS-TP
B5819W
Micro Commercial Components
D1, D2
1
HZ0805E601R-10
300mOhm
Laird
FB1
1
74405020022
2u2
Würth Elektronik
L1
Show 19 more
QtyPartRefs
1
GRM21BZ71E106KE15L
10u
Murata
C1
1
CL10A226MO7JZNC
10u
Samsung
C2
5
GRM155R61E225ME11D
2u2
Murata Electronics
C3, C5, C6, C7, C20
9
GRM155R71H104ME14J
100n
Murata Electronics
C4, C8, C9, C10, C11, C12, C15, C16 +1
2
GRM1555C1H150FA01D
15p
Murata Electronics
C13, C14
1
VJ0603A120GXXCW1BC
12p
Vishay Vitramon
C17
1
100n
c19
6
CRCW04021K00FKED
1k
Vishay Dale
R1, R10, R17, R18, R40, R41
1
CRCW04025K60FKED
5k6
Vishay Dale
R2
1
CRCW040210K0FKED
10k
Vishay Dale
R3
1
CRCW040290K9FKED
90k9
Vishay Dale
R4
1
20k
Vishay Dale
R5
1
CRCW0402200RFKED
4k7
Vishay Dale
R6
11
CRCW04024K70FKED
4k7
Vishay Dale
R7, R9, R11, R16, R38, R39, R43, R44 +3
2
CRCW04025K10FKED
5k1
Vishay Dale
R12, R13
2
CRCW040227R0FKED
27
Vishay Dale
R14, R15
19
CRCW0603110RFKEA
110
Vishay Dale
R19, R20, R21, R22, R23, R24, R25, R26 +11
1
CRCW0402120RFKED
150
Vishay Dale
R42
1
CRCW040251R0FKED
51
Vishay Dale
R48

SCSIknifePocket design files

The KiCad project lives in the Siliconinsid/SCSIknifePocket repository on GitHub; these links point at the commit this page was built from.

SCSIknifePocket: common questions

What microcontroller does the SCSIknifePocket use?

The SCSIknifePocket is built around the RP2040, from the RP2040/RP2350 family.

How many components are on the SCSIknifePocket?

90 components, from 39 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the SCSIknifePocket design files?

From the Siliconinsid/SCSIknifePocket repository on GitHub, which has the schematic and the BOM; the links under Design files point to each one.

Can I use the SCSIknifePocket design in my own project?

Yes, under the terms of its CERN-OHL-S-2.0 license, which Siliconinsid chose for the repository.

Can I test firmware for the SCSIknifePocket without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
