Signalbroker lin transceiver PCB layout, top view — open source ESP32 board by skyguru
Simulate this board

About the Signalbroker lin transceiver PCB

Signalbroker lin transceiver is an open source ESP32 PCB design by skyguru, published on GitHub under the Apache-2.0 license. It is a 2-layer board measuring 105 × 63 mm, with 29 components from 24 distinct parts.

Its main chip is the ESP32 11-20, from the ESP32 family. Other key parts include the MCP2004A-E_P, LM2596S-5 and MCP1416. By type, the board carries 8 diodes, 6 resistors, 5 capacitors, 4 connectors, 3 ICs and 1 transistor.

It belongs with the rf & radio and iot & wireless designs in this gallery.

From the project

Download USB drivers for the ESP device, choose driver depending on OS here: https://www.olimex.com/Products/IoT/ESP32/ESP32-POE/open-source-hardware

Download USB drivers for the ESP device, choose driver depending on OS here: https://www.olimex.com/Products/IoT/ESP32/ESP32-POE/open-source-hardware

To be able to upload this project to your device you need PlatformIO. You can either install it as a CLI application but the preferred way is to use their extension within an IDE.

I guess that the most popular is to use VS Code so I will use it in the example below.

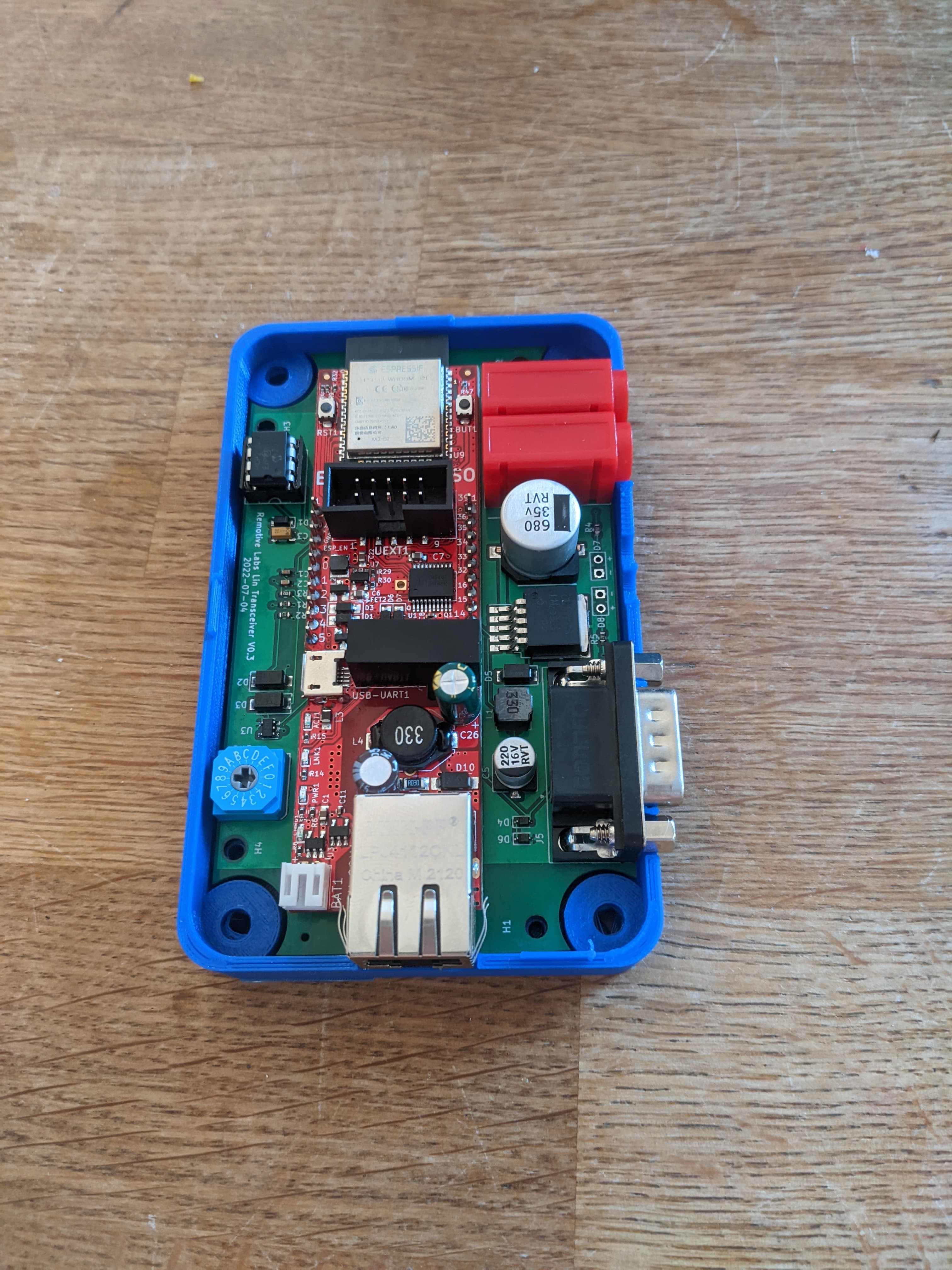

Signalbroker lin transceiver, from the project README
From the project README

Main components on the Signalbroker lin transceiver

MCP2004A-E_PLM2596S-5MCP1416

Signalbroker lin transceiver bill of materials (BOM)

29 components, 24 distinct parts — part numbers from the project's BOM.
