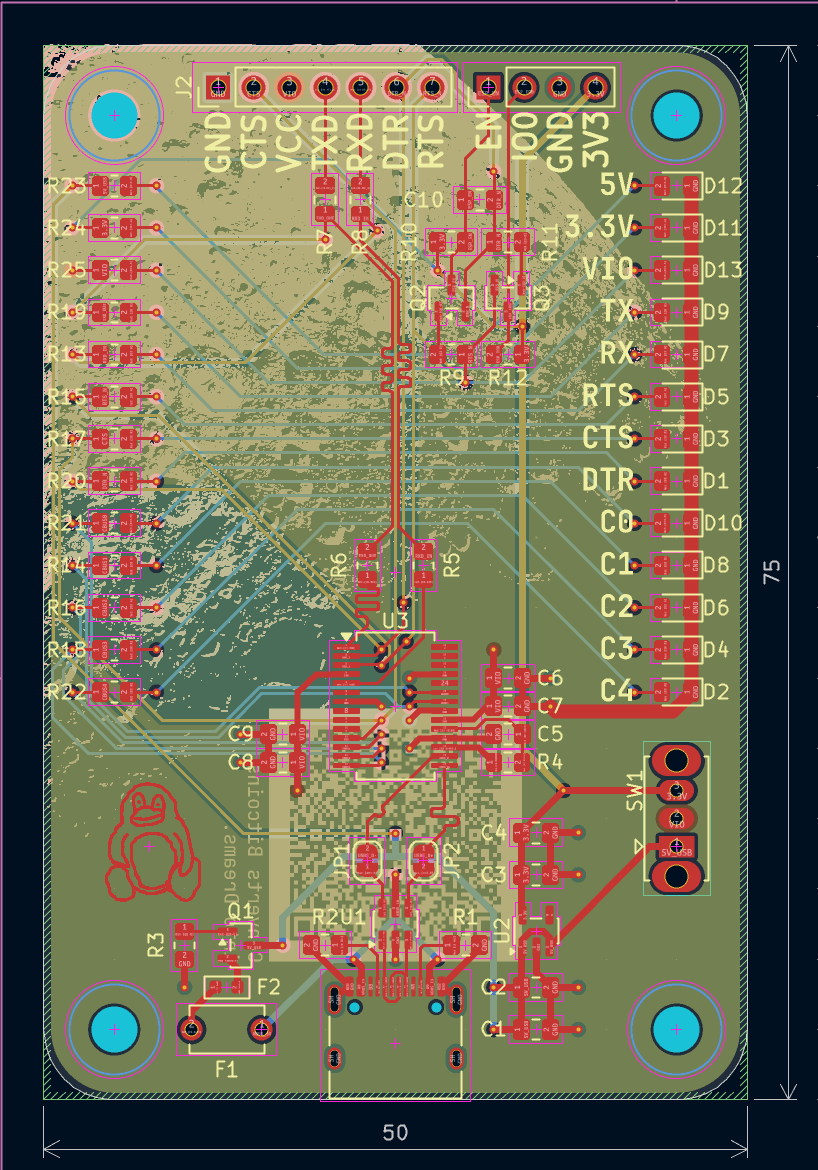

FTDIboard PCB layout, top view — open source board by sneakylizard123-4

About the FTDIboard PCB

FTDIboard is an open source PCB design by sneakylizard123-4, published on GitHub. It is a 4-layer board measuring 50 × 75 mm, with 60 components from 22 distinct parts.

Other key parts include the USBLC6-2SC6, TLV75733PDBV and FT232RL. By type, the board carries 25 resistors, 13 diodes, 10 capacitors, 3 ICs, 3 transistors and 3 connectors.

It belongs with the usb & debug tools designs in this gallery.

From the project

FTDIboard is a small USB-to-UART interface that uses the FT232RL and a switchable 3.3V/5V logic rail.

FTDIboard is a small USB-to-UART interface that uses the FT232RL and a switchable 3.3V/5V logic rail.

- FT232RL USB-to-UART bridge - Switchable 3.3V / 5V logic levels - ESP-style auto-reset - USB ESD protection - Resettable Fuse (PPTC): 600mA on VBUS - Fuse (not resettable): 2.5A fast fuse - Lots of LEDs - 75×50mm, 4-layer PCB - M3 mounting holes - 2.54mm standard headers

FTDIboard, from the project README
From the project README

Main components on the FTDIboard

USBLC6-2SC6TLV75733PDBVFT232RL

FTDIboard bill of materials (BOM)

60 components, 22 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
USBLC6-2SC6
U1
1
TLV75733PDBV
U2
1
FT232RL
U3
1
AO3401A
Q1
2
BC817
Q2, Q3
1
USB_C_RECEPTACLE_USB2.0_14P
USB_C_Receptacle_USB2.0_14P
J1
1
Conn_01x07
J2
1
Conn_01x04
J3
1
600mA hold, 1.2A trip
F1
1
2.5A
F2
1
SW_SPDT_321
SW1
13
LED
D1, D2, D3, D4, D5, D6, D7, D8 +5
6
100NF
100nF
C1, C4, C5, C7, C8, C10
1
10UF
10uF
C2
1
22UF
22uF
C3
2
4.7UF
4.7uF
C6, C9
2
5.1K
5.1k
R1, R2
1
100K
100k
R3
16
10K
10k
R4, R10, R12, R13, R14, R15, R16, R17 +8
2
33R
R5, R6
Show 2 more
QtyPartRefs
2
1k
R7, R8
2
10K
1k
R9, R11

FTDIboard design files

The KiCad project lives in the sneakylizard123-4/FTDIboard repository on GitHub; these links point at the commit this page was built from.

FTDIboard: common questions

How big is the FTDIboard PCB?

The FTDIboard measures 50 × 75 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the FTDIboard?

60 components, from 22 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the FTDIboard design files?

From the sneakylizard123-4/FTDIboard repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the FTDIboard design in my own project?

The repository has no license, so all rights stay with sneakylizard123-4. Use it as a reference, and ask the author before reusing the design.
